The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Manufacturer: Antec

SKU: CCW0167

Availability: 47 in stock

€98.31 excl tax

Qty:

Full Description
Specifications
Tags

Radiator Dimensions	397 x 120 x 27 mm (L x W x H)
Radiator Material	Aluminum

Pump

Dimensions	Φ67*48.5 mm
Rating Voltage	DC 12 V
Minimum Startup Voltage	≥5.0 V
Fan Speed	2800±10% RPM
Rated Current	0.25±20% A
Consumed Power	3.0 W
Flow rate	≥1300 mL/min
Water Pressure	1.4 m
Operation Temperature	-10°C ~ +60°C
Noise Level	≤28 dB(A)
Lifespan	40,000 hours
Connector	PUMP: 3-pin \| LED: 3-pin

Fan

Dimensions	120 x 120 x 25 mm
Bearing Type	Hydraulic Bearing
LED Type	Addressable RGB
Fan Speed	800±200~1800±10% RPM
Airflow	71.5 CFM (max.)
Air Pressure	2.45 mmH₂O (max.)
Fan Noise Level	31 dB(A)
Lifespan	40,000 hours
Connector	PH 2.0 7-pin (PWM+ARGB)
Rated Voltage	FAN: DC 12 V \| LED: DC 5 V
Operation Voltage	FAN: DC 10.8-13.2 V \| LED: DC 4.5-5.5 V
Rated Current	FAN : 0.20-0.25 A \| LED : 0.32 A

Socket Compatibility CPU	Intel: LGA 115X/1200/1700/20XX/1851 AMD: AM3/AM4/AM5/TR4
TDP	≤ 280W

Products specifications

Attribute name	Attribute value
Consumption	50w
Radiatior Size	360mm
Watercooling LCD Display	No

Product tags

aio cooling (9)
,
antec (17)

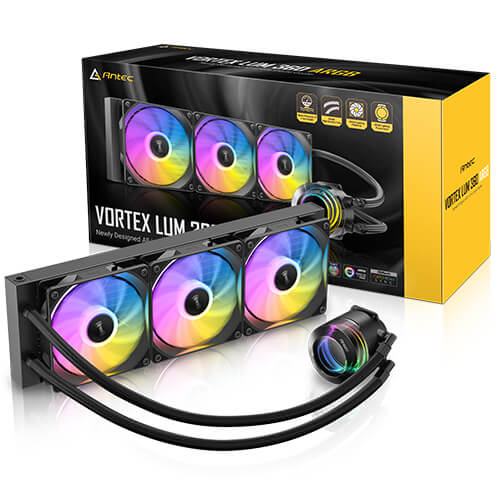

Antec Vortex Lum 360 ARGB
