Full Description

• Built on the AMD A520 chipset with support for AMD AM4 processors, providing a stable platform for everyday computing and productivity tasks.
• Features two DDR4 DIMM slots supporting up to 64GB of memory, allowing smooth multitasking and system responsiveness.
• Includes four SATA3 6Gb/s ports for connecting SSDs and hard drives, offering flexible storage expansion options.
• Equipped with one PCIe 3.0 x16 slot for dedicated graphics cards and two PCIe 3.0 x1 slots for additional expansion devices.

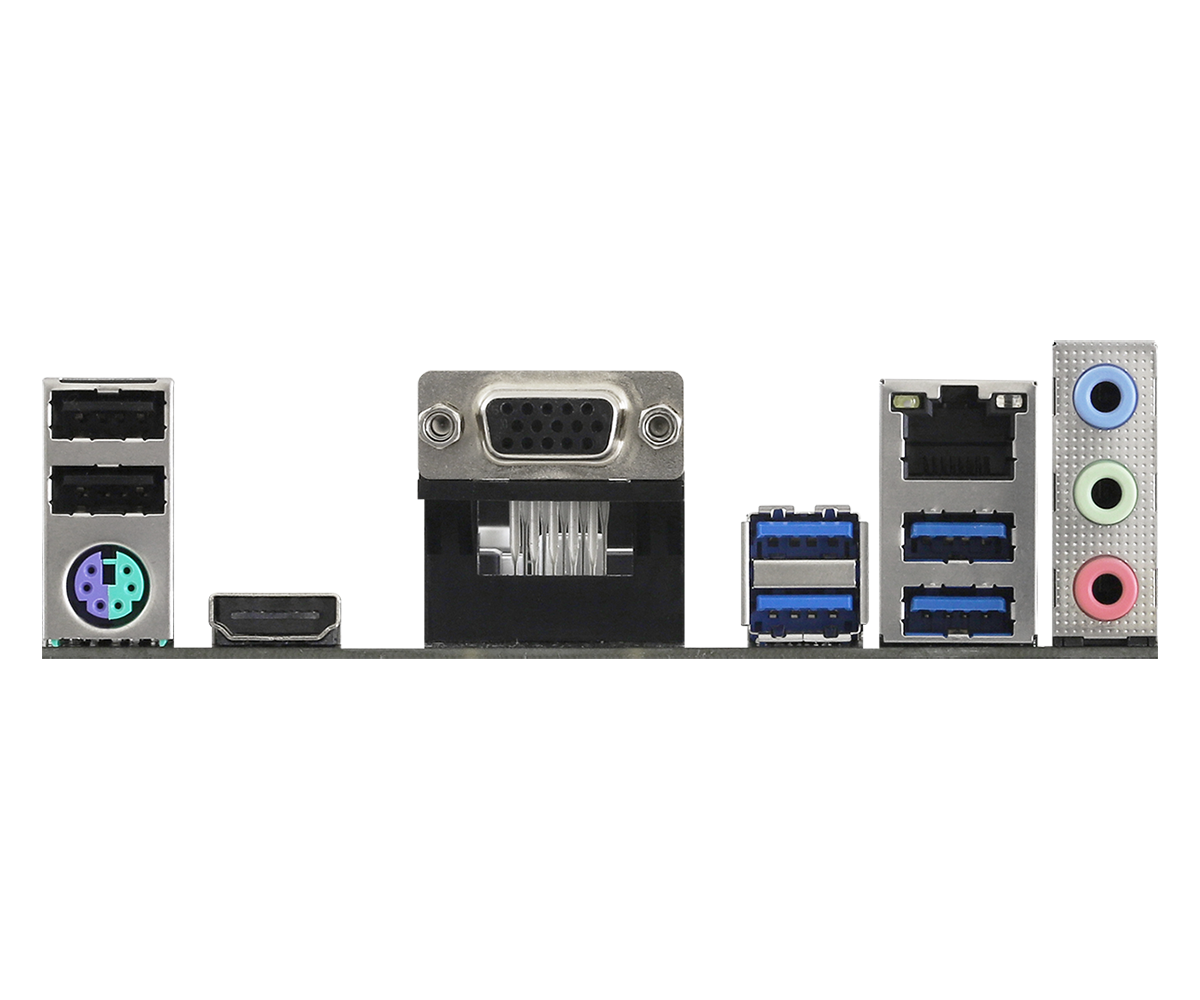

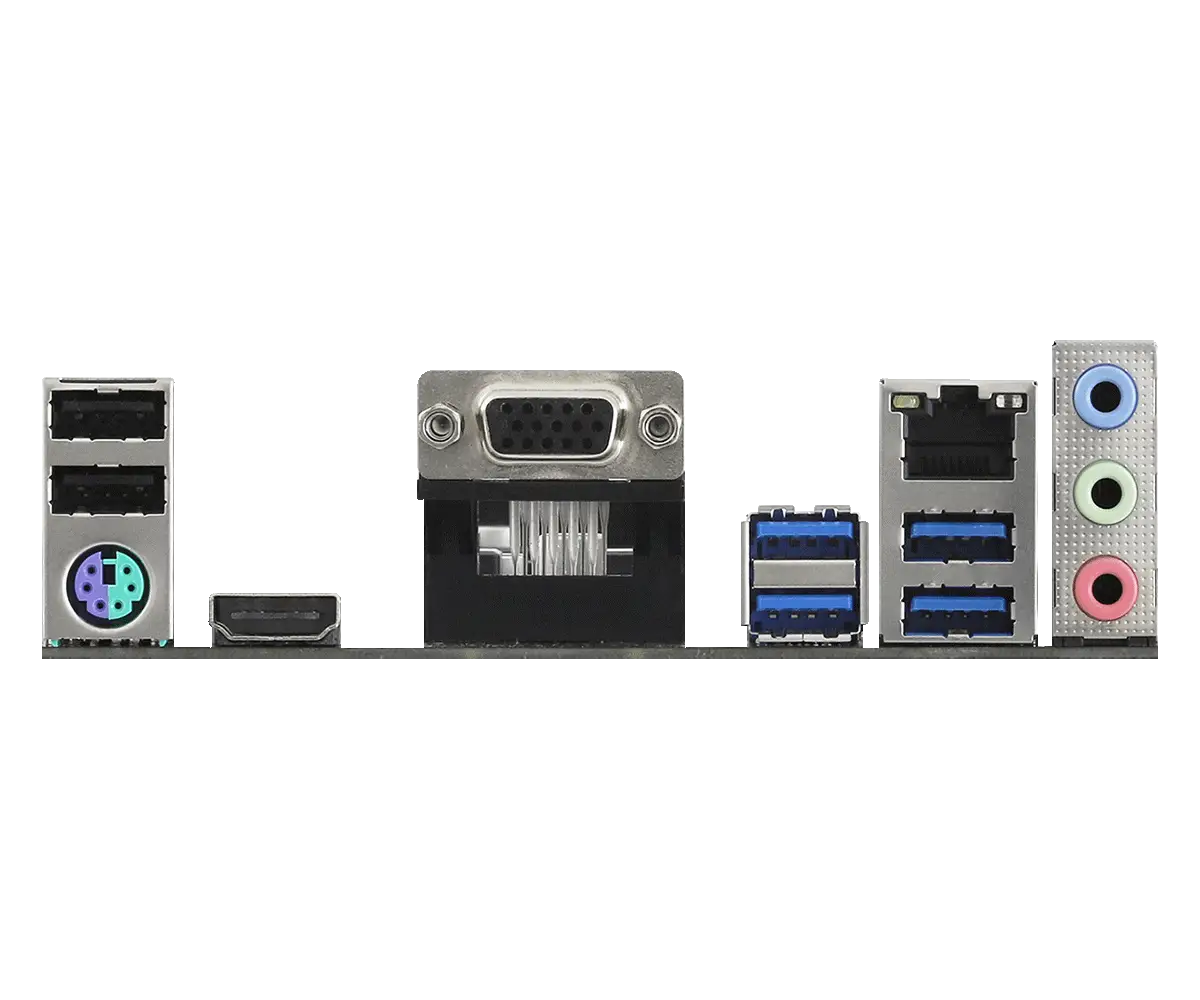

• Provides both HDMI and D-Sub (VGA) display outputs for compatibility with a wide range of monitors when using supported processors with integrated graphics.
• Realtek Gigabit Ethernet ensures reliable wired network connectivity for home and office environments.
• Integrated 7.1-channel HD audio delivers clear sound quality for multimedia, entertainment, and communication applications.
• Micro-ATX form factor offers broad compatibility with compact and standard PC cases while maintaining expansion flexibility.

Key Features

• Brand: ASRock
• Model: A520M-HVS
• Chipset: AMD A520
• Socket: AMD AM4
• Form Factor: Micro-ATX
• Memory Support: 2 × DDR4 DIMM, Up to 64GB
• Storage: 4 × SATA3 6Gb/s
• Expansion Slots: 1 × PCIe 3.0 x16, 2 × PCIe 3.0 x1
• Graphics Outputs: HDMI, D-Sub (VGA)
• Networking: Realtek Gigabit Ethernet
• Audio: 7.1-Channel HD Audio
• USB Ports: USB 3.2 Gen1, USB 2.0
• Operating System Support: Windows 10 / 11 (64-bit)
