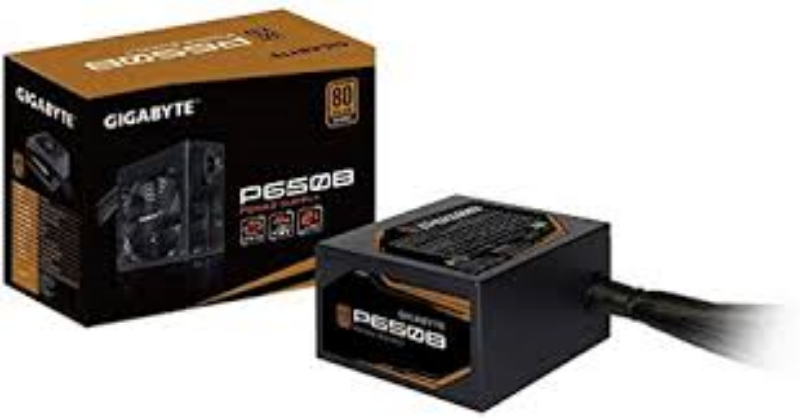

Model
P650B

Type
Intel Form Factor ATX 12V v2.31

PFC
Active PFC (>0.9 typical)

Input Voltage
1‎00-240 Vac (full range)

Input Current
9‎A-4A

Input Frequency
5‎0-60 Hz

Output Capacity
6‎50W

Dimension
D150 x W140 x H86 mm

Fan Type
1‎20mm Hydraulic Bearing Fan

Efficiency
Up to 85% at typical load

MTBF
>100,000 hours

Protection
OPP/UVP/OVP/SCP/OCP

Regulatory
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE

Connectors
ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
