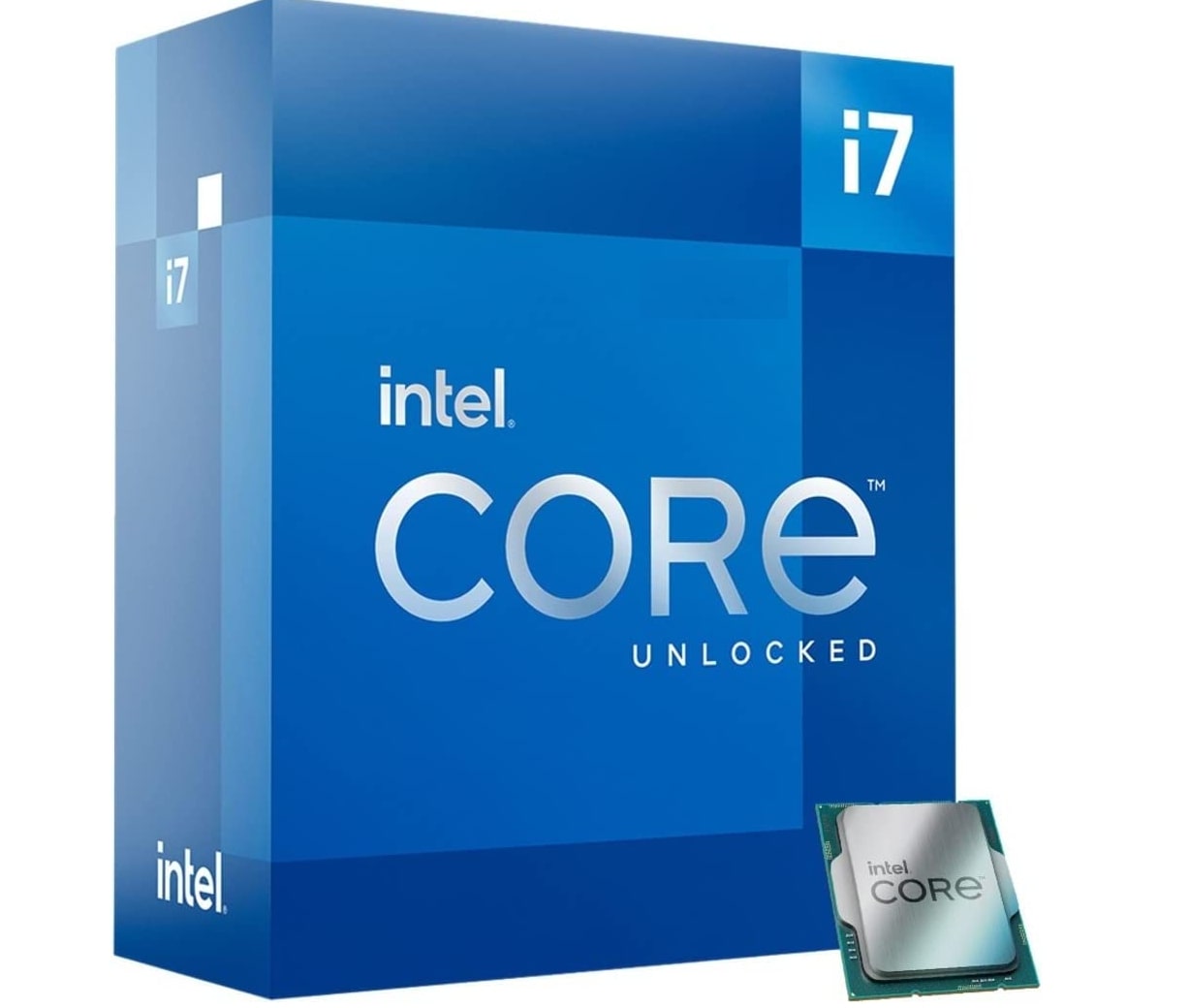

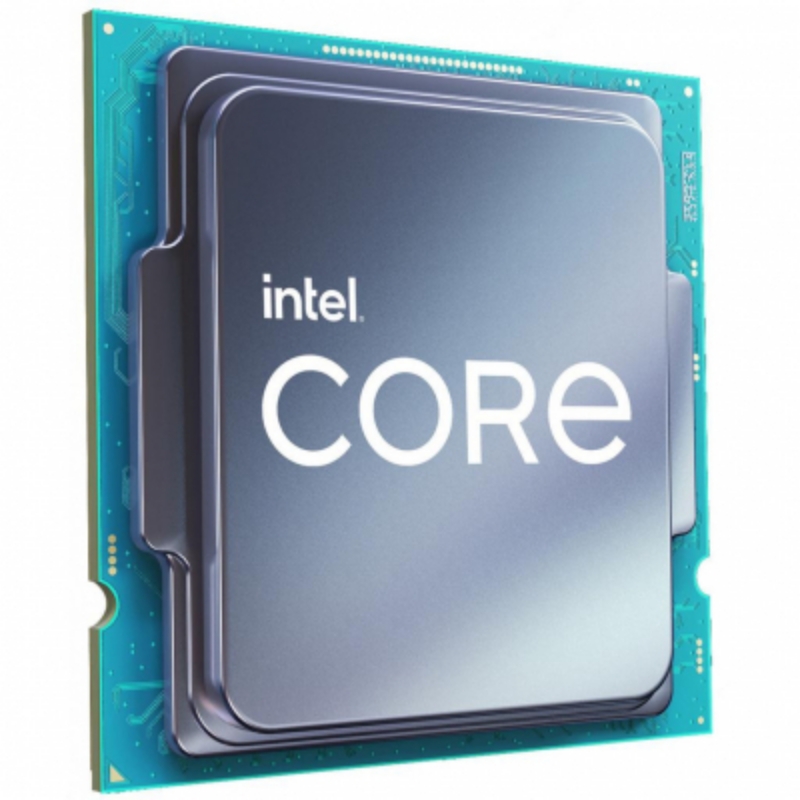

Raptor Lake i7

Manufacturer: Intel

SKU: CCP0101

Manufacturer part number: BX8071514700K

Availability: Out of stock

€322.88 excl tax

Qty:

Full Description
Specifications

Total Cores 20

# of Performance-cores 8

# of Efficient-cores 12

Total Threads 28

Max Turbo Frequency 5.6 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ^‡ 5.6 GHz

Performance-core Max Turbo Frequency 5.5 GHz

Efficient-core Max Turbo Frequency 4.3 GHz

Performance-core Base Frequency 3.4 GHz

Efficient-core Base Frequency 2.5 GHz

Cache 33 MB Intel® Smart Cache

Total L2 Cache 28 MB

Processor Base Power 125 W

Maximum Turbo Power 253 W

Memory Specifications

Max Memory Size (dependent on memory type) 192 GB

Memory Types

Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels 2

Max Memory Bandwidth 89.6 GB/s

ECC Memory Supported ^‡ Yes

GPU Specifications

Processor Graphics ^‡ Intel® UHD Graphics 770

Graphics Base Frequency 300 GHz

Graphics Max Dynamic Frequency 1.6 GHz

Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units 32

Max Resolution (HDMI)^‡ 4096 x 2160 @ 60Hz

Max Resolution (DP)‡ 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

5120 x 3200 @ 120Hz

DirectX* Support 12

OpenGL* Support 4.5

OpenCL* Support 3.0

Multi-Format Codec Engines 2

Intel® Quick Sync Video Yes

Intel® Clear Video HD Technology Yes

# of Displays Supported ^‡4

Device ID 0xA780

Expansion Options

Direct Media Interface (DMI) Revision 4.0

Max # of DMI Lanes 8

Scalability 1S Only

PCI Express Revision 5.0 and 4.0

PCI Express Configurations ^‡ Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes 20

Package Specifications

Sockets Supported FCLGA1700

Max CPU Configuration 1

Thermal Solution Specification PCG 2020A

T_JUNCTION 100°C

Package Size 45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator 3.0

Intel® Thread Director Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes

Intel® Speed Shift Technology Yes

Intel® Turbo Boost Max Technology 3.0 ^‡ Yes

Intel® Turbo Boost Technology ^‡ 2.0

Intel® Hyper-Threading Technology ^‡ Yes

Intel® 64 ^‡ Yes

Instruction Set 64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States Yes

Enhanced Intel SpeedStep® Technology Yes

Thermal Monitoring Technologies Yes

Intel® Volume Management Device (VMD)

Yes

Security & Reliability

Intel® Standard Manageability (ISM) ^‡ Yes

Intel® Control-Flow Enforcement Technology Yes

Intel® AES New Instructions Yes

Secure Key Yes

Intel® OS Guard Yes

Execute Disable Bit ^‡ Yes

Intel® Boot Guard Yes

Mode-based Execute Control (MBEC) Yes

Intel® Virtualization Technology (VT-x) ^‡ Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^‡ Yes

Intel® VT-x with Extended Page Tables (EPT) ^‡ Yes

Products specifications

Attribute name	Attribute value
TDP	250W
LGA/Socket Type	LGA1700
Integrated Graphics	Yes
Cooling Fan	No

Intel Core i7-14700K 1700 20Core 33MB Cache BOX
