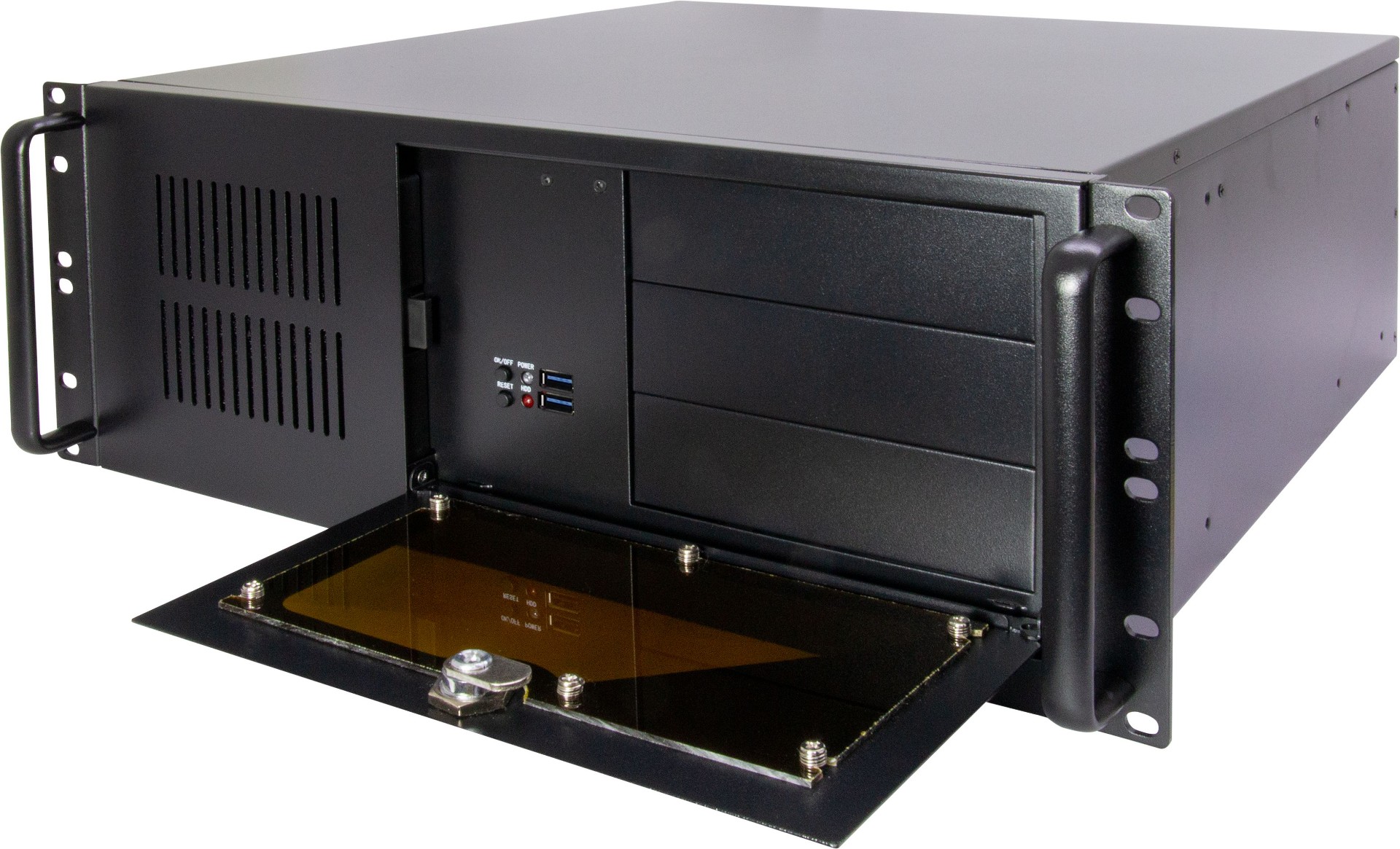

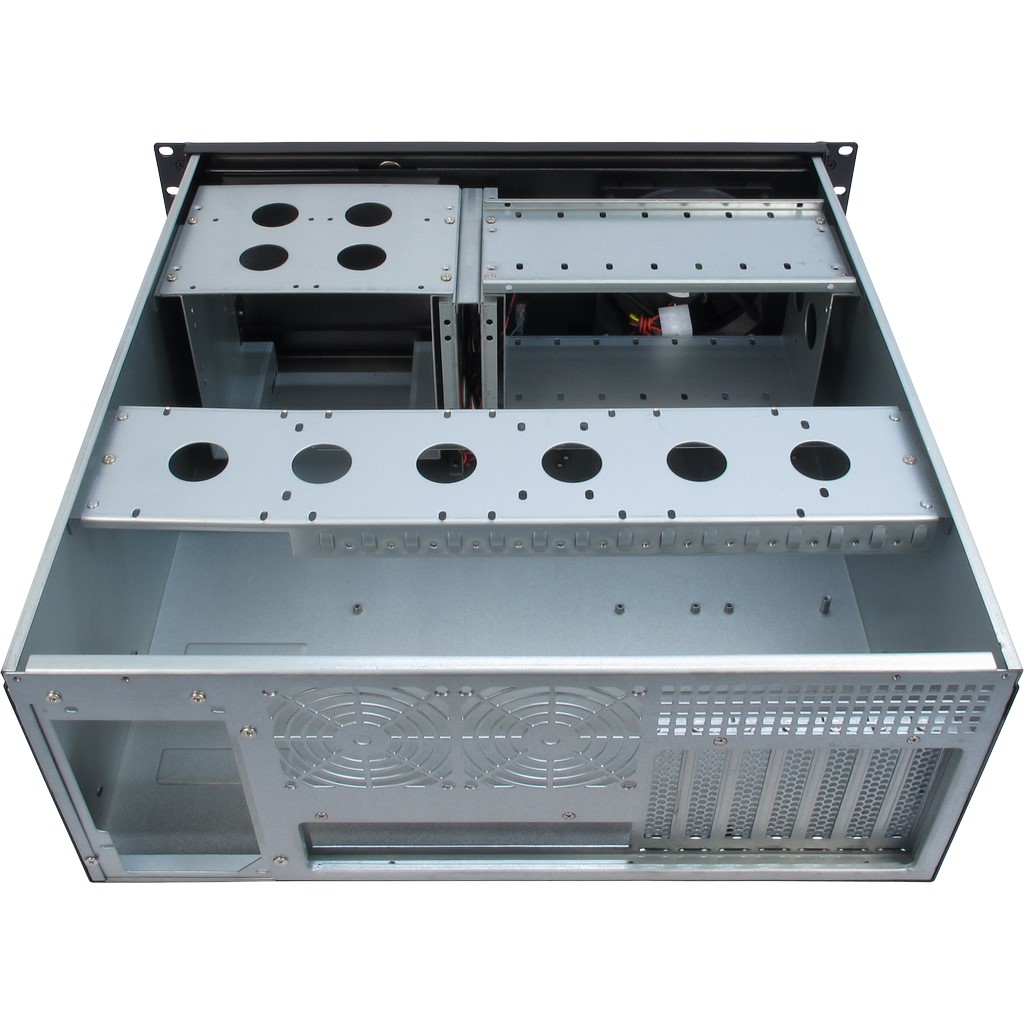

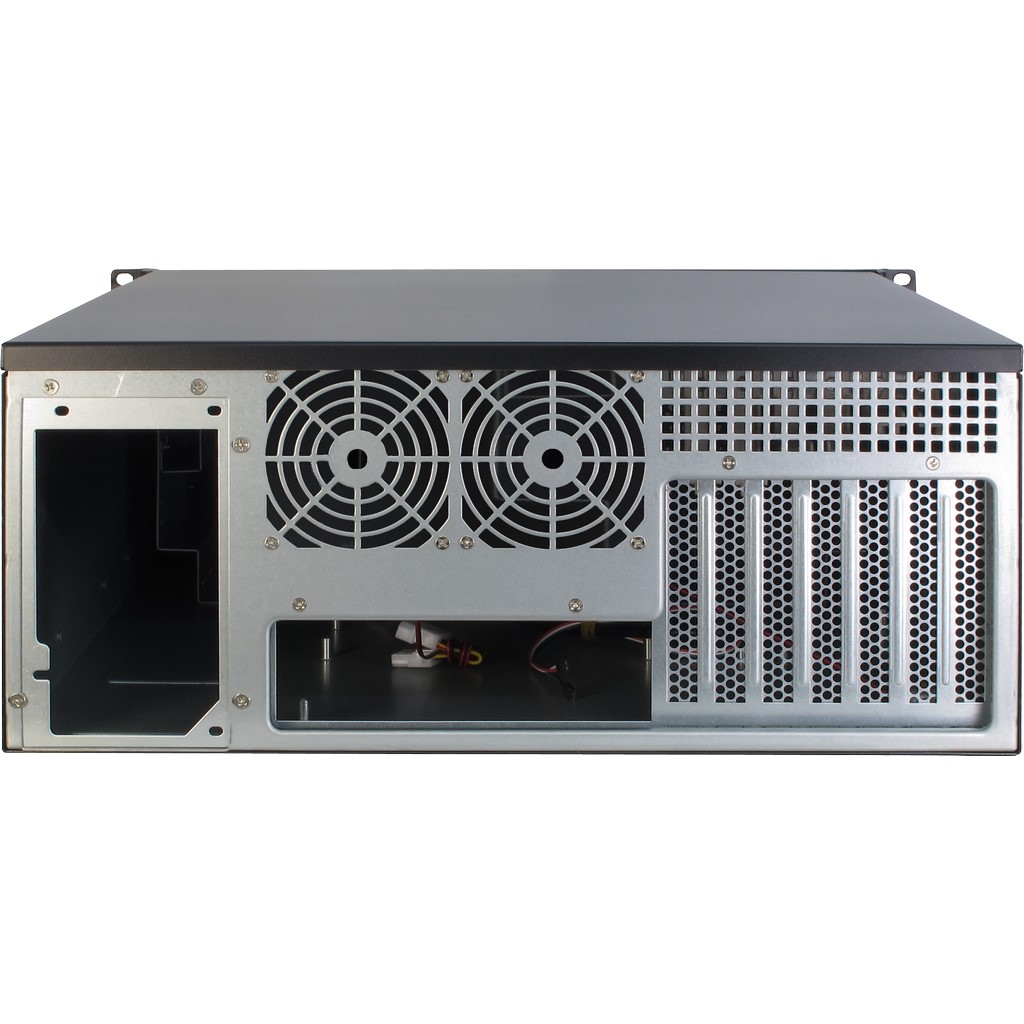

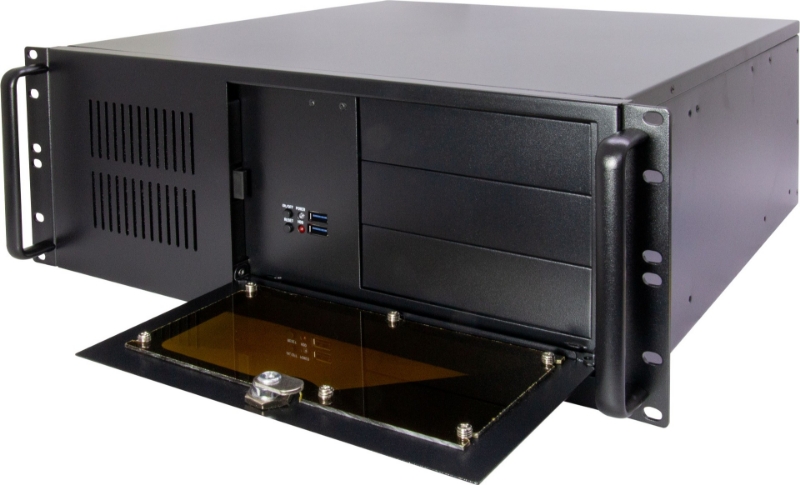

he 4U 4088-S - Classic 19" Rack with a lot of space for different drives. You can remove the HDD cages with a few steps for easy mounting of internal devices. You can mount 4 x 2.5" Hard drives on a crossbeam inside the case. The crossbeam is also equipped with a slot card holder to ensure a safe usage. The lockable doors in front of the slots prevent, unauthorized access.

Manufacturer: Inter-Tech

SKU: CCS0136

Manufacturer part number: 88887178

Availability: 16 in stock

€108.05 excl tax

Qty:

Full Description
Specifications

MOTHERBOARD
Form factor	Mini ITX, mATX, μATX, ATX
max. Motherboard size	305mm x 270mm (12" x 10.6")
INSTALLATION DIMENSIONS
Height CPU cooler (max.)	130mm³
Length graphics card (max.)	275mm⁴
³ without middle bridge ⁴ the amount of the internal 3.5" drives can vary DRIVE BAYS
5.25" external	3x / 2x¹
3.5" external	/ 1x¹
3.5" internal	8x
2.5" internal	7x²
¹ by using the mounting frame 5.25" to 3.5" external, one 5.25” is dropped ² max height 6x 9.5mm and 1x 15mm FRONT CONNECTORS
USB 3.0	2x
USB 2.0	-
POWER SUPPLY
PS2/mini redundant PSU
ATX PSU
FAN MOUNTING OPTION
Front	1x 120mm (serial, Molex connector)
Rear	2x 80mm (optional)
CONTROLS & LED
Controls	Power-Button Reset-Button
LED	Power HDD Activity
OTHER DATA
Dimensions (h/w/d)	178 x 485 x 483mm
Material	1.0-1.2mm Steel
Warranty	24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery	Case Retail packaging Keys Screw Set Mounting frame 5.25" to 3.5" external
Features	Removable HDD cages 7x screwed and perforated brackets (backside) Slot Card holder each 1x for short, mid and high Slot Cards Lockable front door USB 3.0 internal as block connector
