The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences

Manufacturer: Lian Li

SKU: CCS0167

Manufacturer part number: G99.A3X.00

Availability: Out of stock

Full Description
Specifications
Tags

MODEL NAME	A3-mATX
MODEL NO.	A3-mATX BLACK	A3-mATX WHITE	A3-mATX-WD BLACK	A3-mATX-WD WHITE
COLOR	Black	White	Black (Wood Edition)	White(Wood Edition)
CASE TYPE	MFF (Micro Form Factor)
DIMENSION	(D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet)
CAPACITY	26.3L
MATERIAL	Steel
MOTHERBOARD SUPPORT	M-ATX/ITX
PSU SUPPORT	ATX/SFX/SFX-L (Max 220mm)
FAN SUPPORT	Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm
RADIATOR SUPPORT	Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom)
DRIVE SUPPORT	Tray: 2 × 2.5” SSD Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD
GPU LENGTH CLEARANCE	Max 415mm
CPU HEIGHT CLEARANCE	Max 165mm
EXPANSION SLOTS	4
I/O PORTS	1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio
DUST FILTER	1 x Bottom		1 x Bottom

Products specifications

Attribute name	Attribute value
Case Form Factor	Mini-Tower
Side Panel	Glass
Case Colour	Black
PSU Form Factor	ATX
Motherboard Form Factor	mATX, ITX

Product tags

black (58)
,
lian li (13)
,
case (22)

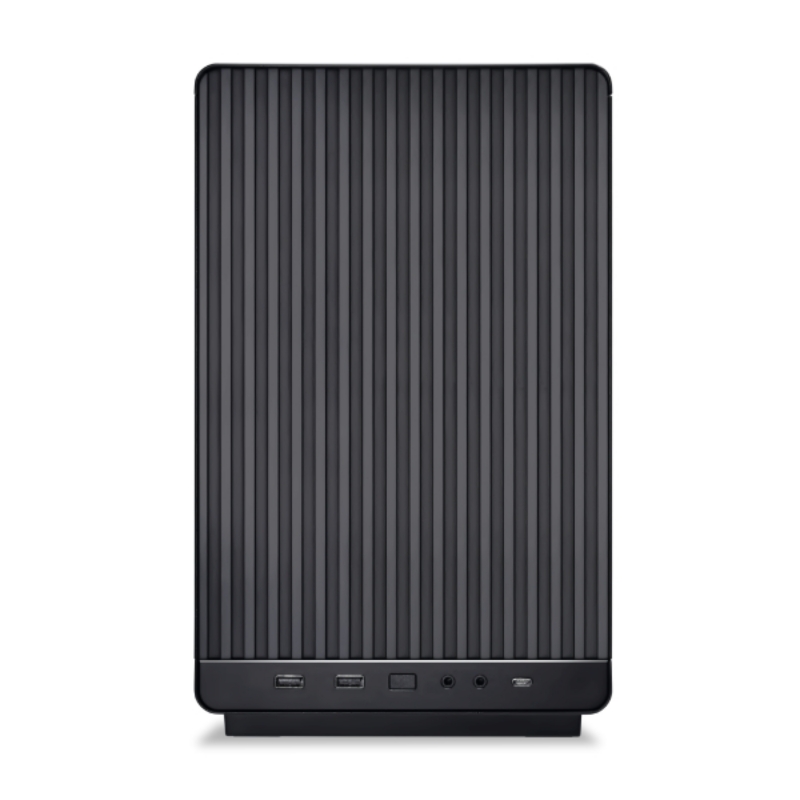

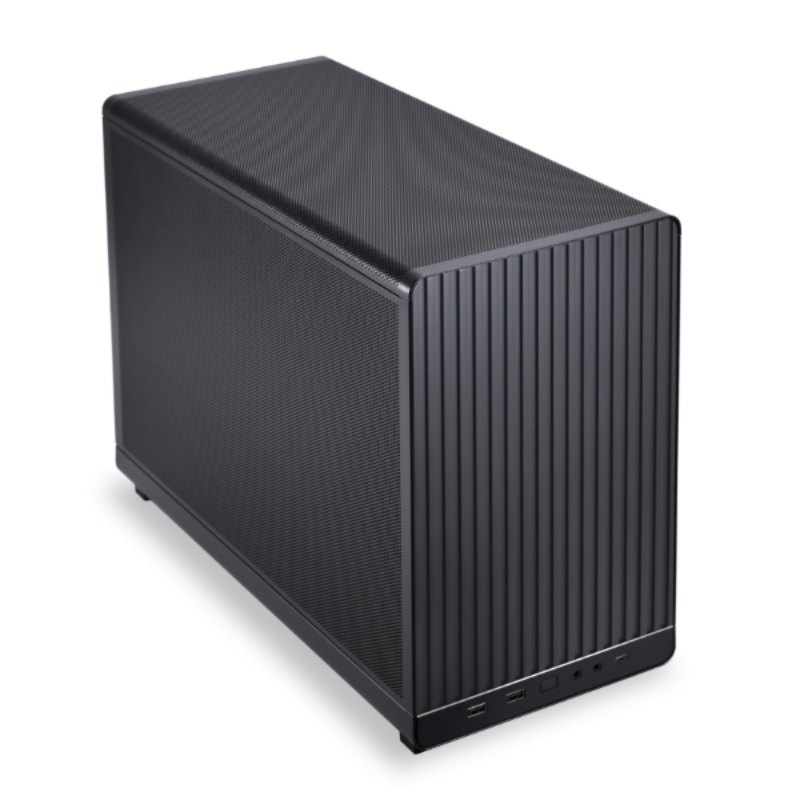

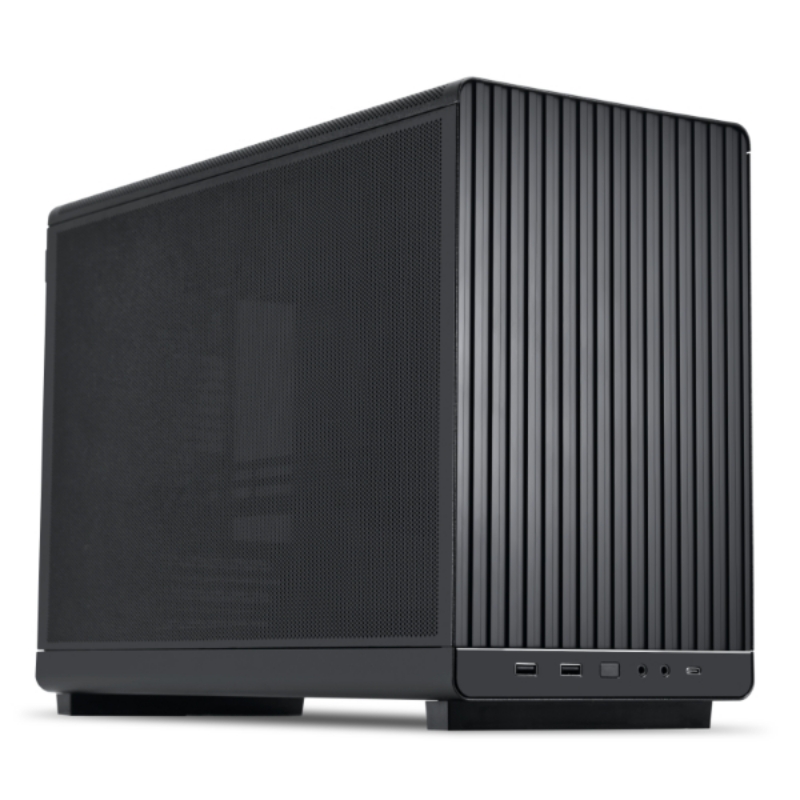

Lian Li A3-mATX Black
