Typical applications are routers and switches, signal amplifiers and repeaters, POE systems, access points, security systems, smart home control panels, VoIP phones, IP cameras, modems, decoders, media players, medical monitors and many other 12VDC (max. 25W) devices. Nominal load 12W constant. Maximum load/overload capacity up to 25W using coaxial DC connector (OD 5.5mm / ID 2.5mm).

Manufacturer: Powerwalker

SKU: PUA0053

Manufacturer part number: 10120431

Availability: Out of stock

€23.73 excl tax

Qty:

Full Description
Tags

General Features
Type	DC
Phases (IN-OUT)	DC
Form Factor	Socket Plug-In
Power Capacity	12VA / 12W
Output Power Factor	1.00
Input
Input Voltage Range	90-264 VAC
Frequency Range	50Hz or 60Hz (self-adaptive)
Output
Waveform	Simulated Sine Wave
VA	12
Nominal Output Voltage	12 VDC
Output Power Factor	1.00
Input & Output Connectors
Input Connector	CEE 7/16
Technical Details
LINE Mode Efficiency [%] (Full Load)	82.0
Battery Mode Efficiency [%] (Full Load)	82.5
Additional Features	Lithium Battery
Batteries and Autonomy
Batteries	1x 3.7V/2.6Ah
DC Voltage	1x 3.7V
Recharge Time	3h to 90%
Full Load Backup Time [min]	25.0
Half Load Backup Time [min]	50.0
Recharge Time	3h to 90%
Communication
Communication	N/A
Software	N/A
Management and Environment
Software	N/A
Communication	N/A
Noise Level	< 30dB
Fan Logic	No fan
Temperature	0°C – 40°C
Humidity	5% – 90% RH (non-condensing)
IP	IP 51
Logistics
Package Height [mm]	54
Package Width [mm]	115
Package Depth [mm]	108
Package Weight [kg]	0.3
Product Height [mm]	42
Product Width [mm]	68
Product Depth [mm]	74
Product Weight [kg]	0.2
Package Content	Manual
Manual Languages	EN, DE, PL, FR
EAN	4260074977943
Product Dimensions (DxWxH) [mm]	74 x 68 x 42 mm
Package Dimensions (DxWxH) [mm]	108 x 115 x 54 mm
Pcs. per Outer Carton	28
Pcs. per Layer	224
Pcs. per Pallet [Oversized]	3024

Product tags

adapter (4)
,
power walker (154)

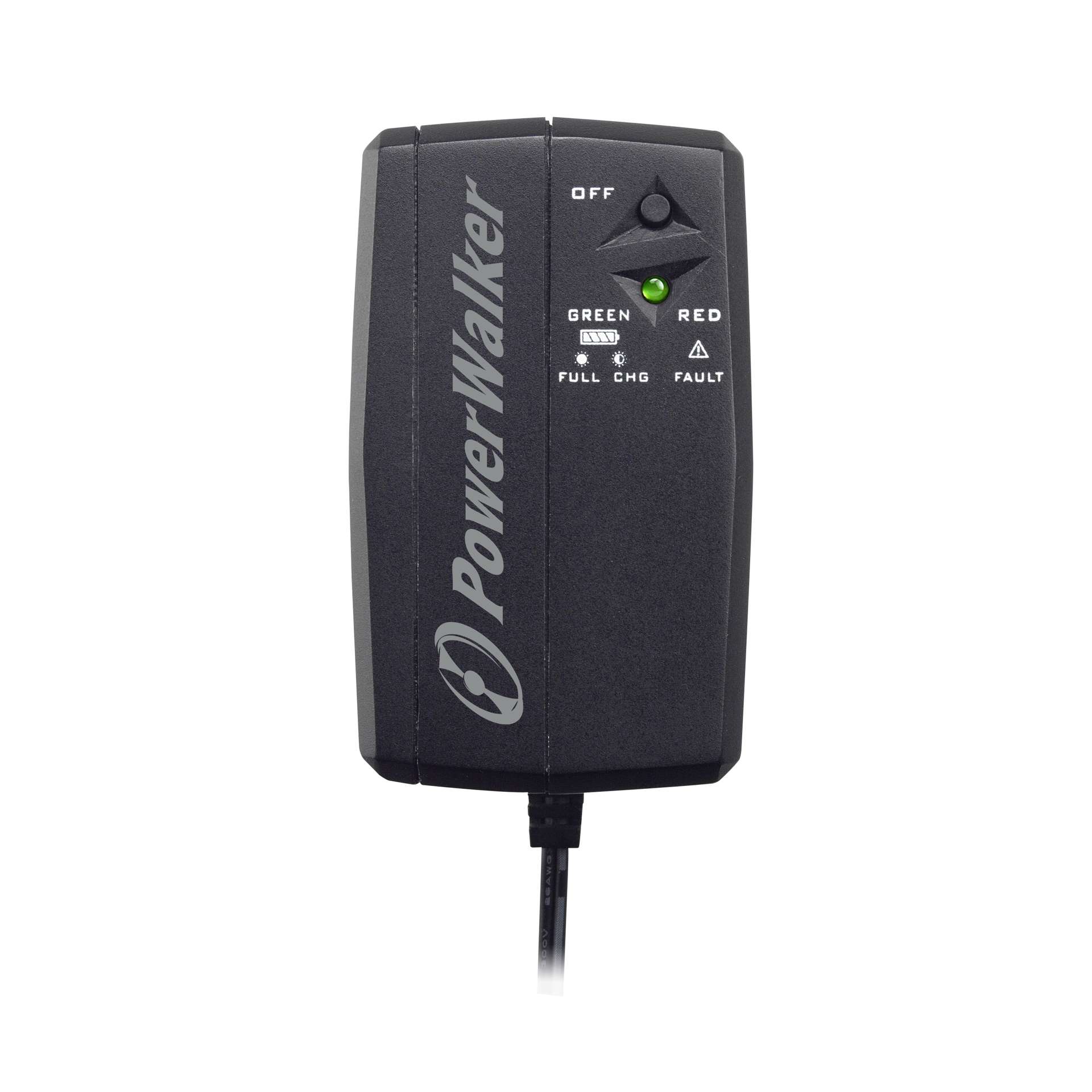

Powerwalker DC SecureAdapter 12V
