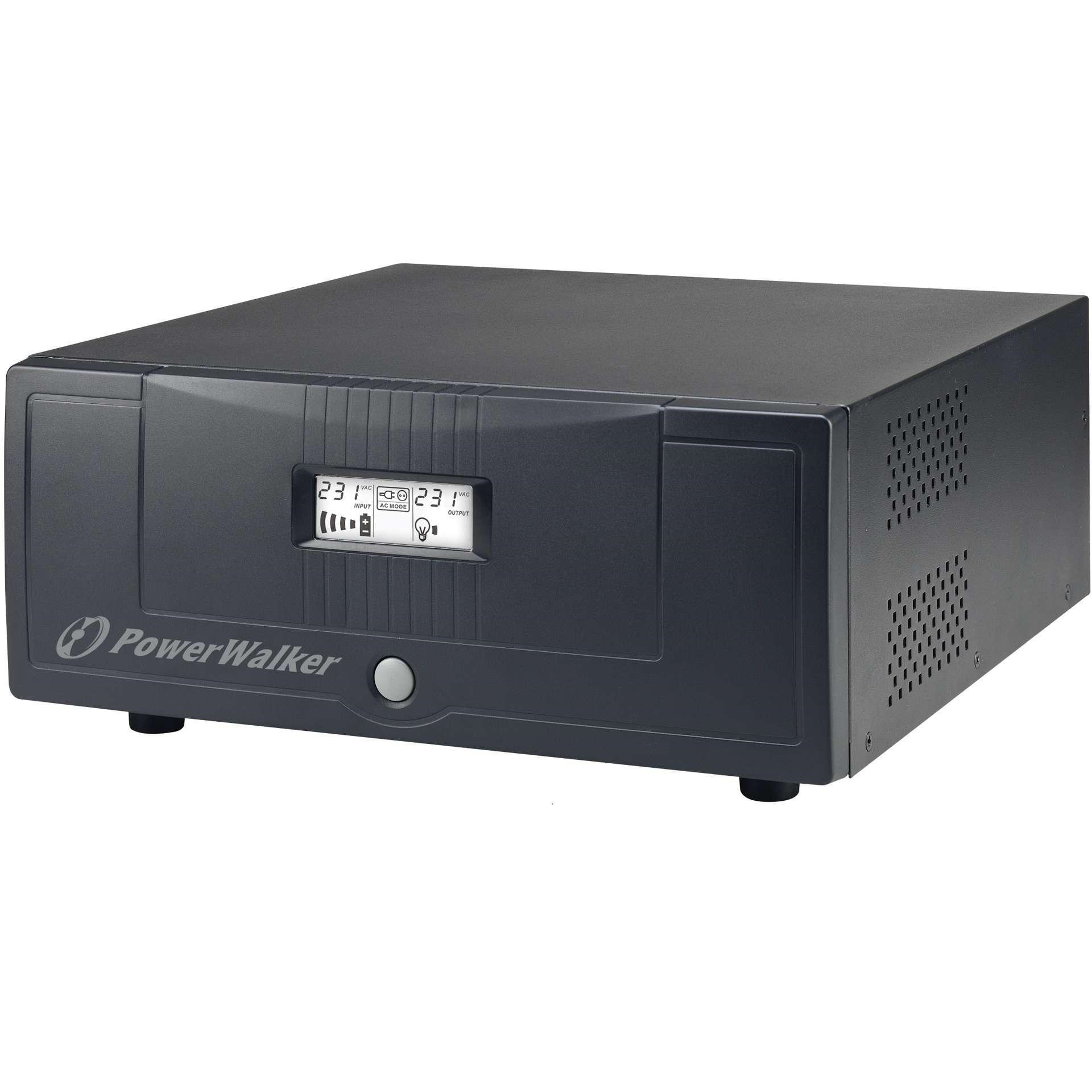

Type Inverter
Phases (IN-OUT) 1-1
Form Factor Tower
Power Capacity 700VA / 500W
Output Power Factor 0.71
INPUT
Input Voltage Range 170-280 VAC (Narrow Range); 90-280 VAC (Wide Range)
Frequency Range 50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 230 VAC
Voltage Regulation (Battery Mode) ±5%

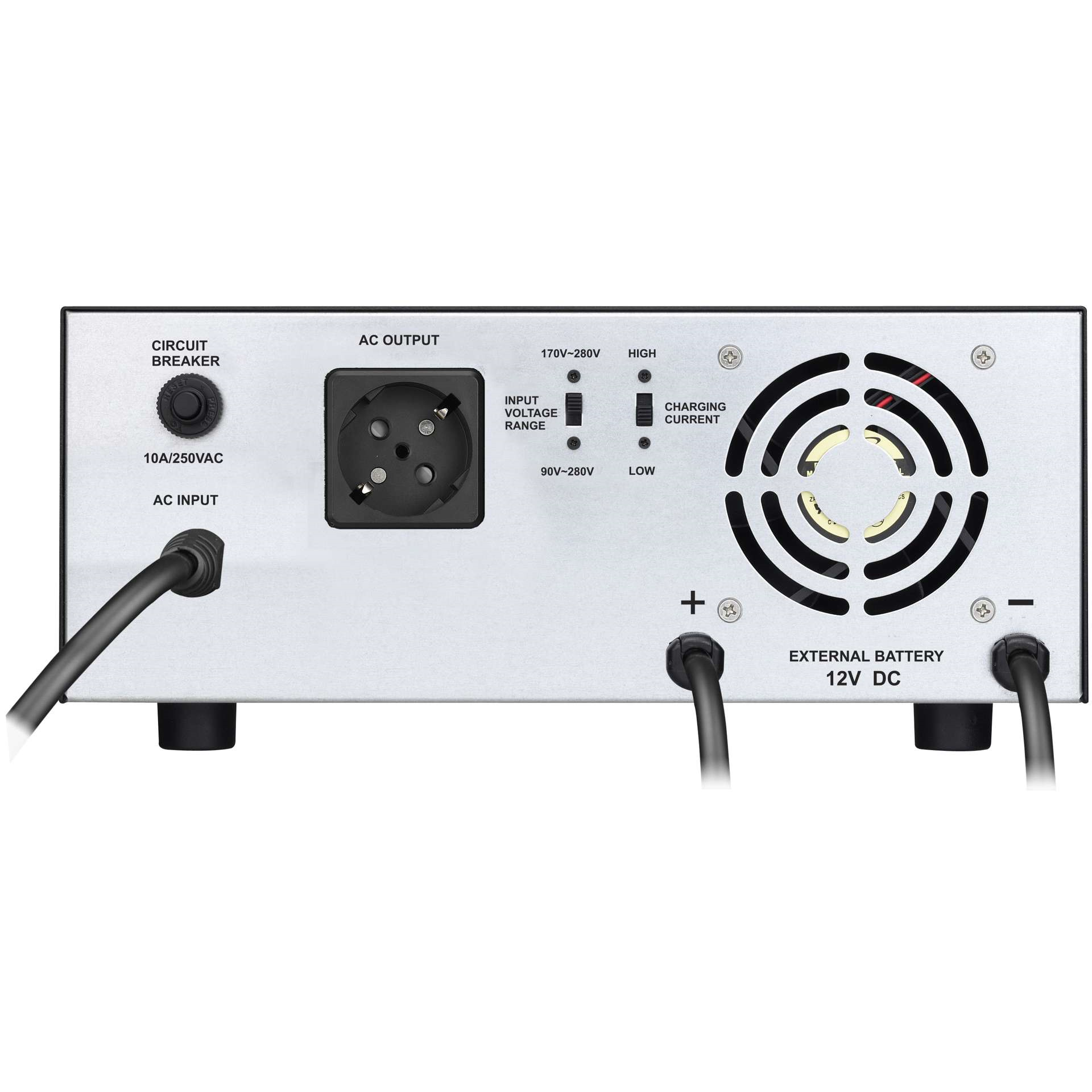

INPUT & OUTPUT CONNECTORS
Input Connector CEE 7/7
Output Type Type F
Type F (CEE 7/3) 1
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 88.0
Transfer Time (AC / Line Mode to Battery Mode) [ms] 10ms Normal Range (20ms Wide Range)
Additional Features Circuit Breaker Reset
BATTERIES AND AUTONOMY
Batteries Batteries are not Included
DC Voltage 1x 12.0V
Additional Batteries Information Designed to work with External Batteries
Charger 10A or 15A (selectable), Recommended Battery Capacity 100 – 150 Ah, DC Voltage 12V, Floating Charge Voltage 13.5V, Low Battery Alarm Voltage 11.5V, Shutdown Voltage 10.5V, Overcharge Protection 15V
External Battery Pack Yes
COMMUNICATION
Communication N/A
Software N/A
ENVIRONMENT
Noise Level < 45dB
Fan Logic Fan ON: Charging Mode
Temperature 0°C – 50°C
Humidity 0% – 90% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content Manual, Product
Manual Languages EN
EAN 4260074977226
Product Dimensions (DxWxH) [mm] 290 x 289 x 127 mm
Product Weight [kg] 4.5
Package Dimensions (DxWxH) [mm] 375 x 405 x 220 mm
Package Weight [kg] 4.7
