| General Features |

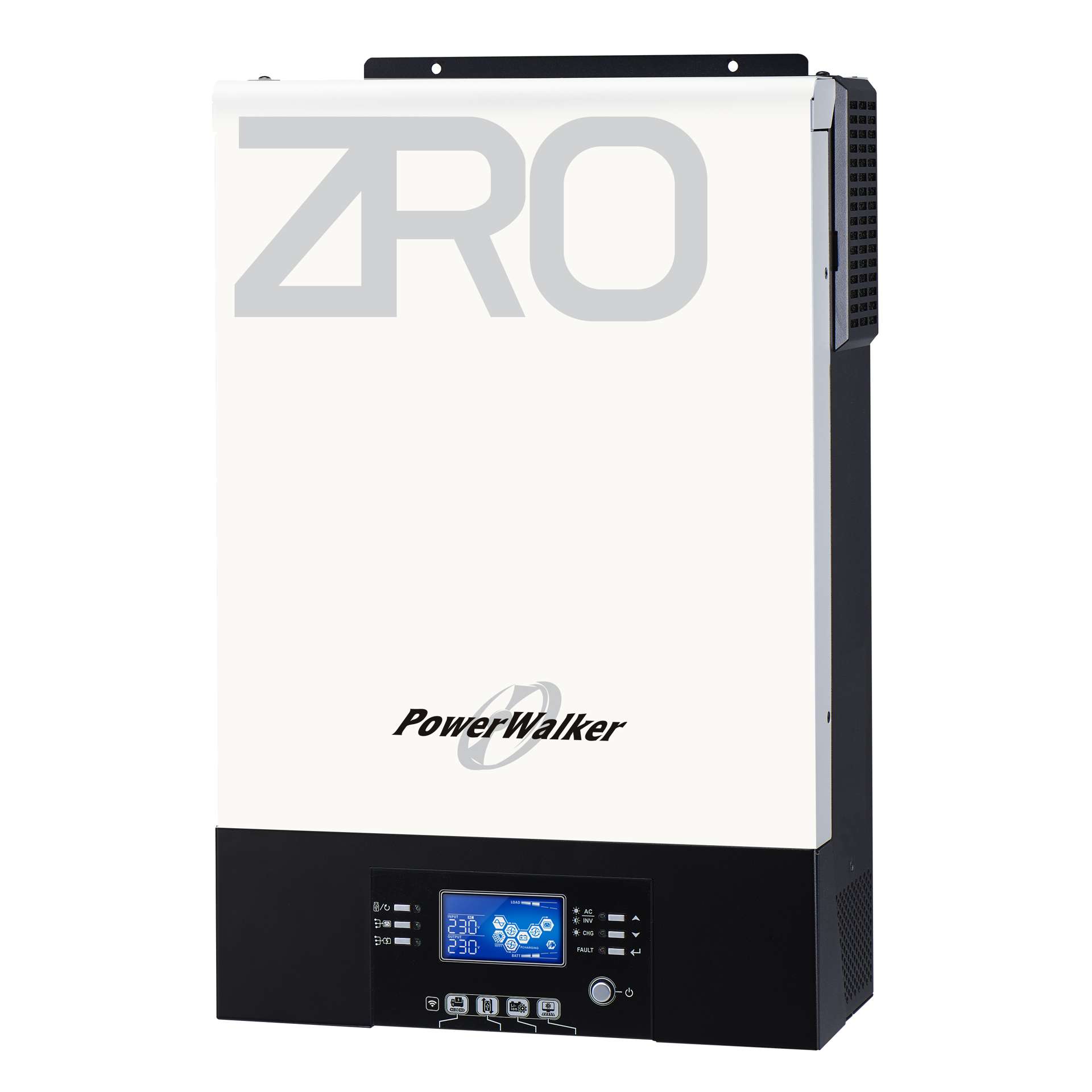

| Type | Solar Inverter |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Wall-Mountable |
| Power Capacity | 5000VA / 5000W |
| Output Power Factor | 0.98 |
| Input |
| Input Voltage Range | 120-270 VAC (narrow range)
110-280 VAC (wide range)
176-280 VAC (ECO Mode) |
| Frequency Range | 50Hz or 60Hz (self-adaptive) |
| Frequency (Synchronized Range) | 50Hz or 60Hz |
| DC Input (PV) |
| Maximum PV Power [W] | 6000 |
| Maximum PV Voltage [V] | 500 |
| Start-Up Voltage [V] | 150 |
| Maximum Input Current [A] (PV1 / PV2) | 27 A |
| Number of MPP Trackers | 1 |
| String per MPP Tracker (PV1 / PV2) | 1 |
| Output |
| Waveform | Pure Sine Wave |
| VA | 5000 |
| Nominal Output Voltage | 230 VAC |
| Frequency (Battery Mode) | ±1Hz |
| Output Power Factor | 0.98 |

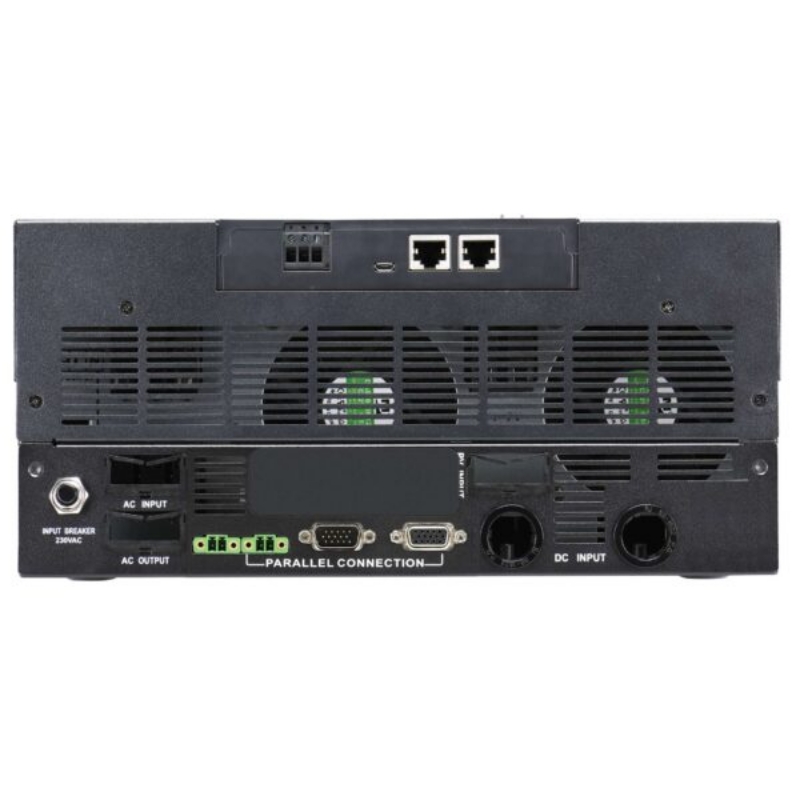

| Input & Output Connectors |
| Input Connector | Terminal |
| Terminal Output | Yes |
| Technical Details |
| LINE Mode Efficiency [%] (Full Load) | 93.0 |
| Battery Mode Efficiency [%] (Full Load) | 90.0 |
| ECO Mode Efficiency [%] (Full Load) | 99.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 0ms |
| Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] | <10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | 4ms |
| Additional Features | Circuit Breaker Reset, Generator Compatible, Battery Independence, ECO Mode Available, External Battery Compatible, LCD Display, Off-Grid Technology, PV (Photovoltaic) Charging Supported, Parallel Connectivity, Wall Mountable, Cold-Start Function |
| Batteries and Autonomy |
| Batteries | Batteries not Included |
| DC Voltage | 4x 12.0V |
| Charger | AC/ PV (Solar) Charger (Type: MPPT) |
| External Battery Pack | Terminal |
| Compatible Battery Type | Lead-Acid Batteries,Lithium Batteries |
| Maximum PV / AC Charge Current [A] | 100A [30A] |
| Communication |
| Communication | Dry contact, Micro-USB – for Monitoring Software, RJ-45 to RS-232 – for Monitoring Software, RS-485 – BMS Communication, Wi-Fi |
| Software | WatchPower |
| Parallel Operation [Units] | 9 |
| Management and Environment |
| Software | WatchPower |
| Communication | Dry contact, Micro-USB – for Monitoring Software, RJ-45 to RS-232 – for Monitoring Software, RS-485 – BMS Communication, Wi-Fi |
| Noise Level | < 60dB |
| Temperature | -10°C – 50°C |
| Humidity | 5% – 95% RH (non-condensing) |
| IP | IP 20 |
| Logistics |
| Package Height [mm] | 220 |
| Package Width [mm] | 400 |
| Package Depth [mm] | 600 |
| Package Weight [kg] | 14.0 |
| Product Height [mm] | 468 |
| Product Width [mm] | 308 |
| Product Depth [mm] | 140 |
| Product Weight [kg] | 13.0 |
| Package Content | Inverter, Manual, Communication Cable |
| Manual Languages | EN |
| EAN | 4260074983630 |
| Product Dimensions (DxWxH) [mm] | 140 x 308 x 468 mm |
| Package Dimensions (DxWxH) [mm] | 600 x 400 x 220 mm |
