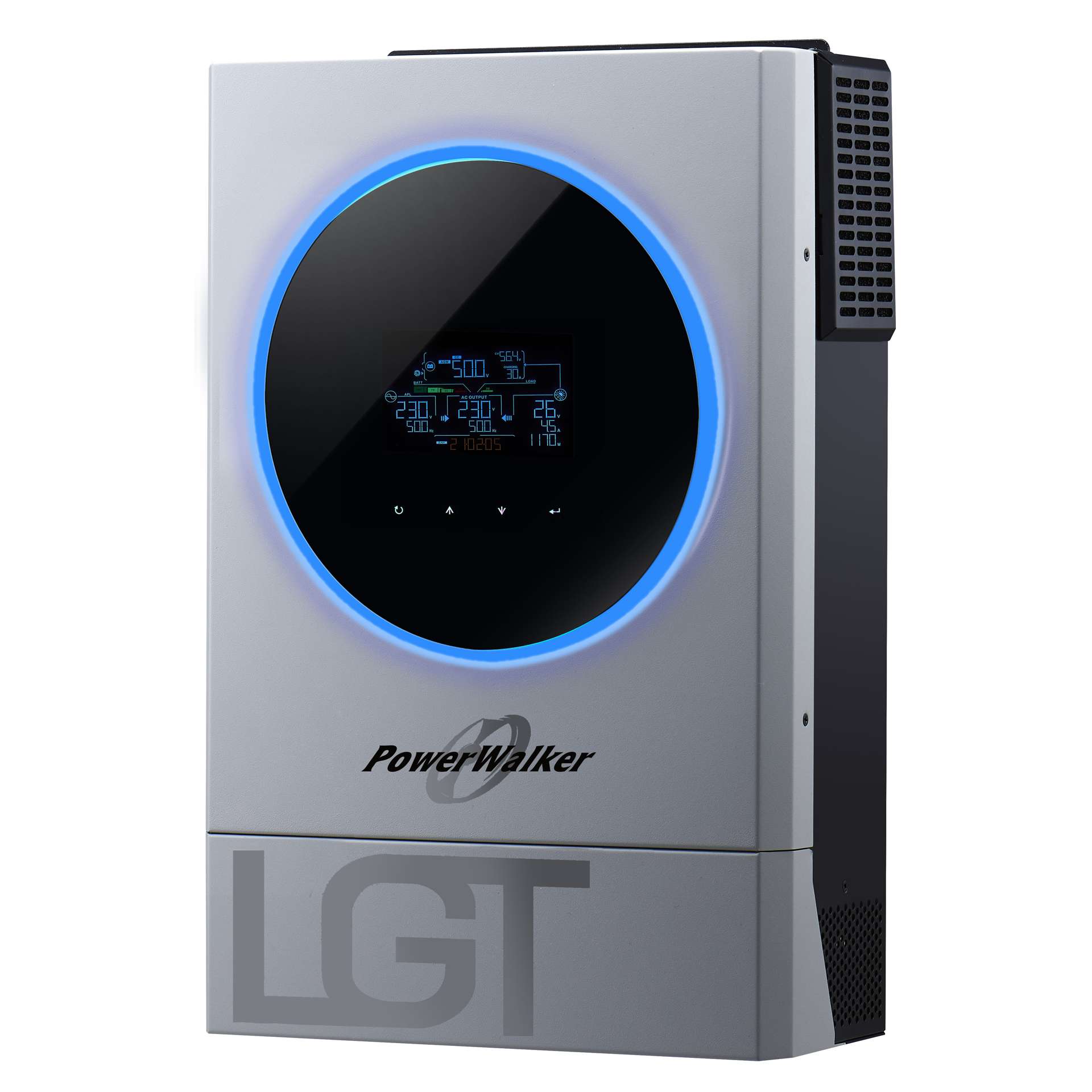

| General Features |
| Type | Solar Inverter |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Wall-Mountable |
| Power Capacity | 5600VA / 5600W |
| Output Power Factor | 1 |
| Input |
| Input Voltage Range | 170-280 VAC (narrow range)
90-280 VAC (wide range) |
| Frequency Range | 50Hz or 60Hz (self-adaptive) |
| DC Input (PV) |
| Maximum PV Power [W] | 6000 |
| Maximum PV Voltage [V] | 450 |
| Start-Up Voltage [V] | 150 |
| Maximum Short-Circuit Current [A] | 27A |
| Number of MPP Trackers | 1 |
| String per MPP Tracker (PV1 / PV2) | 1 |
| Output |
| Waveform | Pure Sine Wave |
| VA | 5600 |
| Nominal Output Voltage | 230 VAC |
| Output Power Factor | 1 |

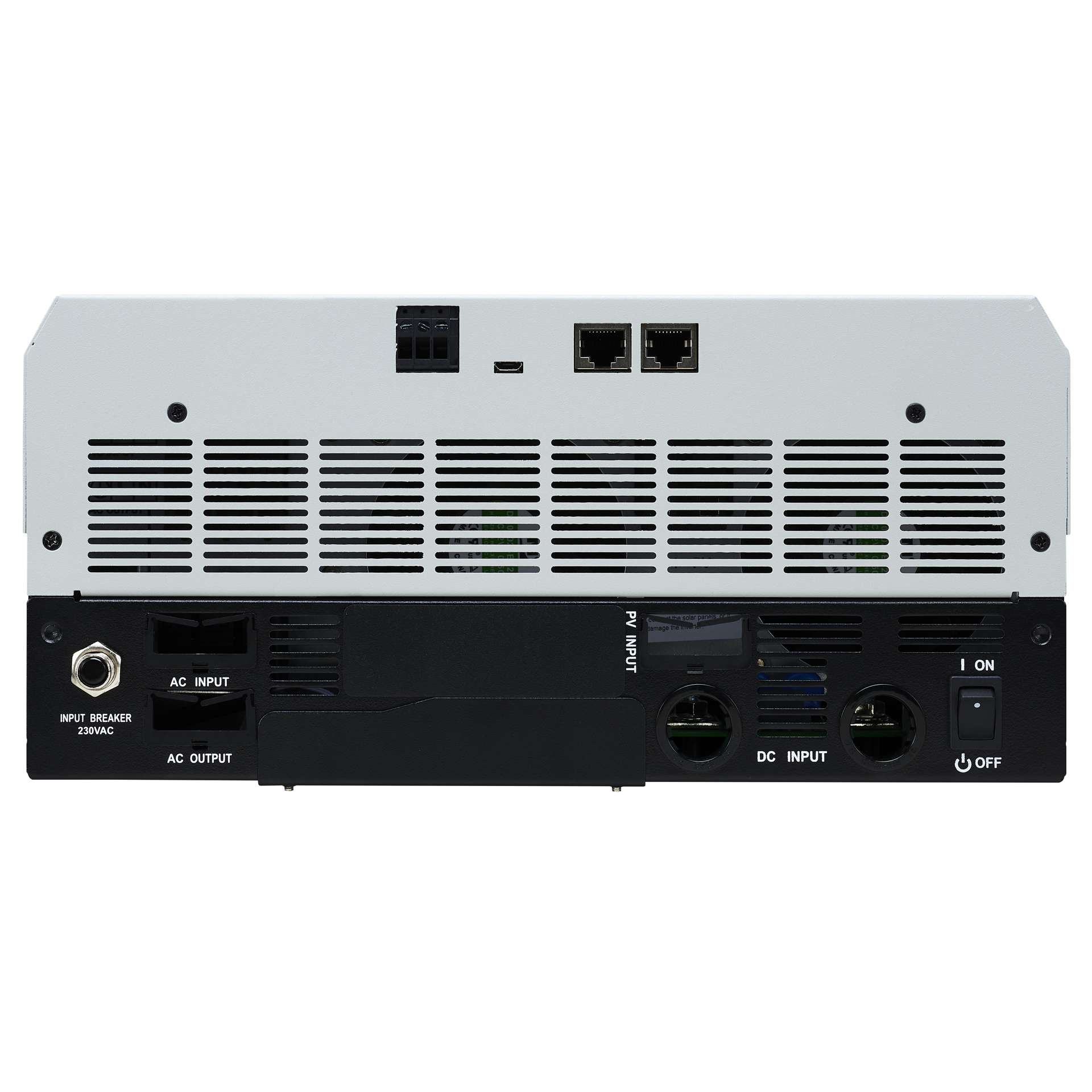

| Input & Output Connectors |
| Input Connector | Terminal |
| Terminal Output | Yes |
| Technical Details |
| LINE Mode Efficiency [%] (Full Load) | 95.0 |
| Battery Mode Efficiency [%] (Full Load) | 93.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | <20ms |
| Additional Features | Ambient LED Lighting, Battery Independence, Circuit Breaker Reset, External Battery Compatible, Generator Compatible, Off-Grid Technology, PV (Photovoltaic) Charging Supported, Parallel Connectivity, Touch-Display, Wall Mountable |
| Batteries and Autonomy |
| Batteries | Batteries not Included |
| DC Voltage | 4x 12.0V |
| Charger | AC/ PV (Solar) Charger (Type: MPPT) |
| External Battery Pack | Terminal |
| Compatible Battery Type | Lead-Acid Batteries,Lithium Batteries |
| Maximum PV / AC Charge Current [A] | Max. Solar Charger Current: 120A
Max. AC Charger Current: 120A
Max. combined Charger Current: 120A |
| Communication |
| Communication | Dry contact, Micro-USB – for Monitoring Software, RJ-45 to RS-232 – for Monitoring Software, RS-485 – BMS Communication, Wi-Fi |
| Software | WatchPower |
| Parallel Operation [Units] | 9 |
| Management and Environment |
| Software | WatchPower |
| Communication | Dry contact, Micro-USB – for Monitoring Software, RJ-45 to RS-232 – for Monitoring Software, RS-485 – BMS Communication, Wi-Fi |
| Noise Level | < 60dB |
| Temperature | -10°C – 50°C |
| Humidity | 5% – 95% RH (non-condensing) |
| IP | IP 20 |
| Logistics |
| Package Height [mm] | 220 |
| Package Width [mm] | 400 |
| Package Depth [mm] | 600 |
| Package Weight [kg] | 14.7 |
| Product Height [mm] | 468 |
| Product Width [mm] | 295 |
| Product Depth [mm] | 140 |
| Product Weight [kg] | 13.7 |
| Package Content | Inverter, Manual, RS-232 Cable |
| EAN | 4260074983654 |
| Product Dimensions (DxWxH) [mm] | 140 x 295 x 468 mm |
| Package Dimensions (DxWxH) [mm] | 600 x 400 x 220 mm |
