Type Online Three Phase (VFI)
Phases (IN-OUT) 3-1
Form Factor Tower
Power Capacity 10000VA / 10000W
Output Power Factor 1
INPUT
Input Voltage Range 110-276 VAC @ 0-50% Load,
160-276 VAC @ 50-100% Load (Ph-N).
190-478 VAC @ 0-50% Load,
277-478 VAC @ 50-100% Load (3Ph-N).

Max THDi <30% Three Phase; <5% Single Phase
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 50Hz or 60Hz
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 220/230/240 VAC
THDv ≤1% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Battery Mode) ±1%
Frequency (Battery Mode) ±0,1Hz

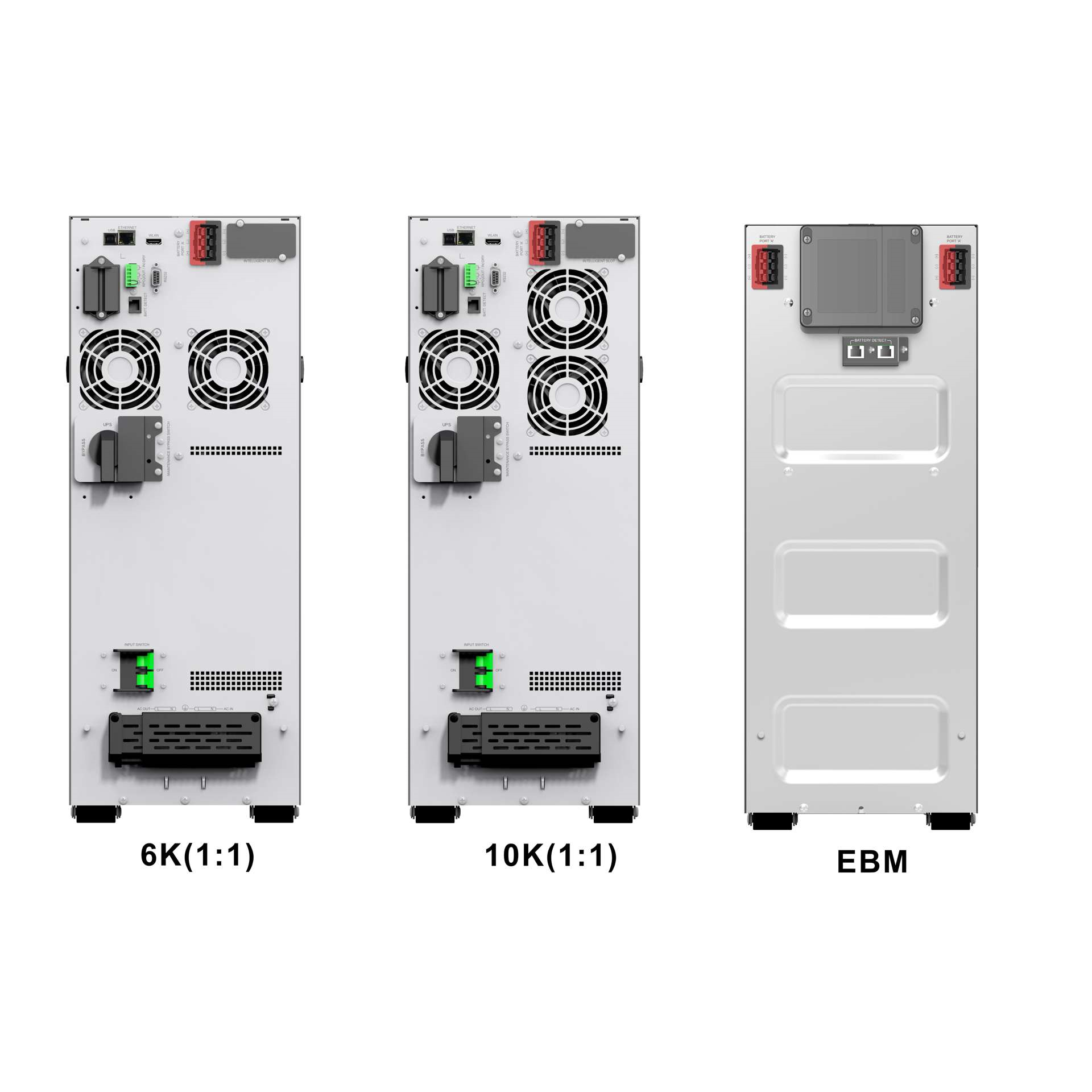

INPUT & OUTPUT CONNECTORS
Input Connector Terminal
Output Type Terminal
Terminal Output Yes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 95.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] <10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] <10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 0ms
Load Crest Ratio 3:1 (max)
Additional Features ECO Mode Available, CVCF Mode Available, OBM – Optimized Battery Management, Parallel Connectivity, LCD Display, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, HID – Human Interface Device, REPO – Remote Emergent Power-Off, AVR – Automatic Voltage Regulator, EBM – External Battery Module – Auto Detection
IEC 62040-3 classification VFI-SS-111
BATTERIES AND AUTONOMY
Batteries 20x 12.0V/9.0Ah
DC Voltage 20x 12.0V
Recharge Time 3h to 90%
Full Load Backup Time [min] 3.4
Half Load Backup Time [min] 9.1
Charger 1A-4A [2A]
External Battery Pack Yes
COMMUNICATION
Communication Dry contact, USB Type B – for Monitoring Software, RS-232, WLAN Port – for Internet Connection, RJ-45 – for Internet Connection, Management Card Slot, Modbus TCP
Software WinPower
Parallel Operation [Units] 3
ENVIRONMENT
Noise Level < 55db
Fan Logic
Always on, Automatic Speed Control

Temperature 0°C – 40°C (40°C – 50°C @50% load)
Humidity 0% – 95% RH (non-condensing)
IP IP 20
