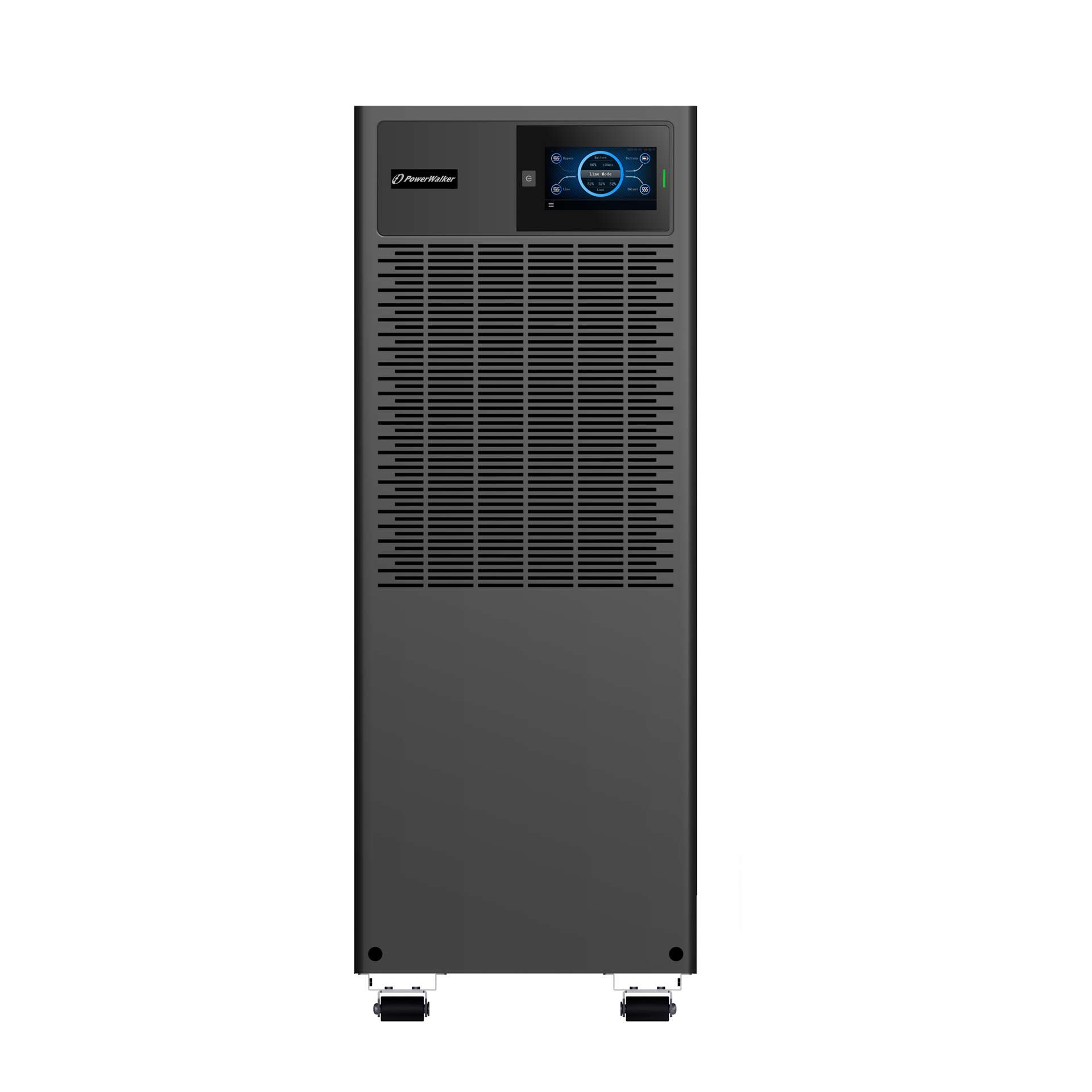

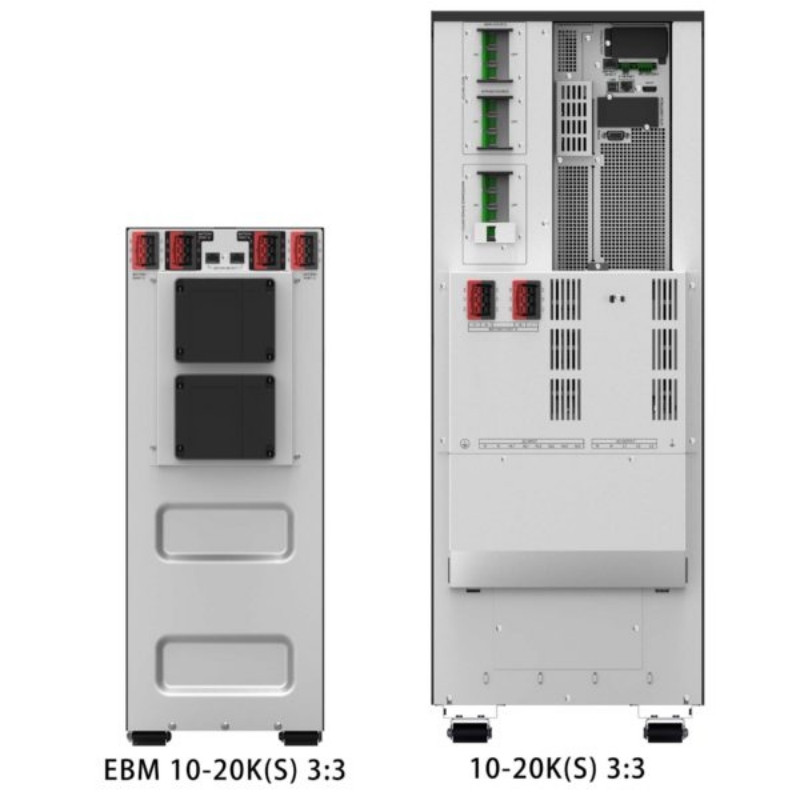

The PowerWalker VFI 10k-20k ICT IoT 3/3 series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis. This Three-Phase UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS. It also features a very advanced Touch-Panel. Watch the product presentation on YouTube: PowerWalker VFI ICT/ICR IoT 3-Phase The UPS is available in 2 different Variations: BI: Internal Batteries are included/ and can be connected with further EBM, BX: Only compatible with EBMs (External Battery Module).
Manufacturer: Powerwalker
SKU: PUP0180
Manufacturer part number: 10122223
Availability: Out of stock
€3539.47 excl tax
GENERAL FEATURES
TypeOnline Three Phase (VFI)
Phases (IN-OUT)3-3
Form FactorTower
Power Capacity15000VA / 15000W
Output Power Factor1
INPUT
Input Voltage Range190-520 VAC @ 0-50% Load,
277-520 VAC @ 50-100% Load
Max THDi<3% linear load; <5% non-linear load
Frequency Range40Hz – 70Hz
Frequency (Synchronized Range)50Hz or 60Hz
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage220/230/240 VAC
THDv≤1% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Battery Mode)±1%
Frequency (Battery Mode)±0,1Hz
INPUT & OUTPUT CONNECTORS
Input ConnectorTerminal
Terminal OutputYes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)96.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]<10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]2ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]0ms
Load Crest Ratio3:1 (max)
BypassManual – Bypass Breaker
Additional FeaturesECO Mode Available, CVCF Mode Available, OBM – Optimized Battery Management, Parallel Connectivity, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, HID – Human Interface Device, REPO – Remote Emergent Power-Off, Dual Input Option, Input Breaker, Advanced Touch-Display, AVR – Automatic Voltage Regulator, EBM – External Battery Module – Auto Detection, External Battery Compatible
IEC 62040-3 classificationVFI-SS-111
BATTERIES AND AUTONOMY
BatteriesBatteries not Included
DC Voltage40x 12.0V
Additional Batteries InformationDesigned to work with External Batteries
Charger1-13A [4A]
External Battery PackYes
COMMUNICATION
CommunicationDry contact, USB Type B – for Monitoring Software, RS-232, WLAN Port – for Internet Connection, RJ-45 – for Internet Connection, Management Card Slot, Modbus TCP
SoftwareWinPower
Parallel Operation [Units]3
ENVIRONMENT
Noise Level< 55db
Fan Logic

Always on, Automatic Speed Control

Temperature0°C – 40°C (40°C – 50°C @50% load)
Humidity0% – 95% RH (non-condensing)
IPIP 20
LOGISTICS
EAN4260074983326
Product Dimensions (DxWxH) [mm]633 x 300 x 805 mm
Product Weight [kg]70.0
Package Dimensions (DxWxH) [mm]815 x 475 x 1020 mm
Package Weight [kg]83.0
Products specifications
Attribute nameAttribute value
UPS TypeOnline
Output ConnectionsC13
UPS PowerOver 7000 VA
UPS FeaturesTower, LCD, Pure Sinewave

Powerwalker VFI 15000 ICT IoT 3/3 BX(40) Art no. 10122223
