General features
Type Online
Power capacity 2000VA / 1800W
Output Power Factor 0.90
Input
Input Voltage Range 176-300 VAC or 80x285 VAC in bypass mode
Max THDi ≤5%
Input PF ≥ 0.99 at full load
Frequency Range 40Hz - 70Hz
Frequency (Synchronized Range) 45Hz - 55Hz or 54Hz - 66Hz
Output
Nominal Output Voltage 220/230/240 VAC
Pure Sine Wave Yes
THDv ≤2% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±2%
Frequency (Battery Mode) ±0,05Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support Yes
Overload Capacity Line: constant @100%-105%; 1min @105%-130%; 10s @130%-150%; 300ms @>150%; bypass at higher; BAT: 10s @100%-150%; cut-off at higher
External Battery Connection Yes
Charger 1.5A
Fan Logic Always ON;
Low speed: bypass/ECO or line mode with load below 70%
High speed: Battery mode or line mode with load above 70%
Efficiency
LINE mode full Load 90.0%
Batteries and autonomy time
Batteries 4x 12V/9Ah
DC Voltage 4 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 3.8min
Half Load Backup Time 11min

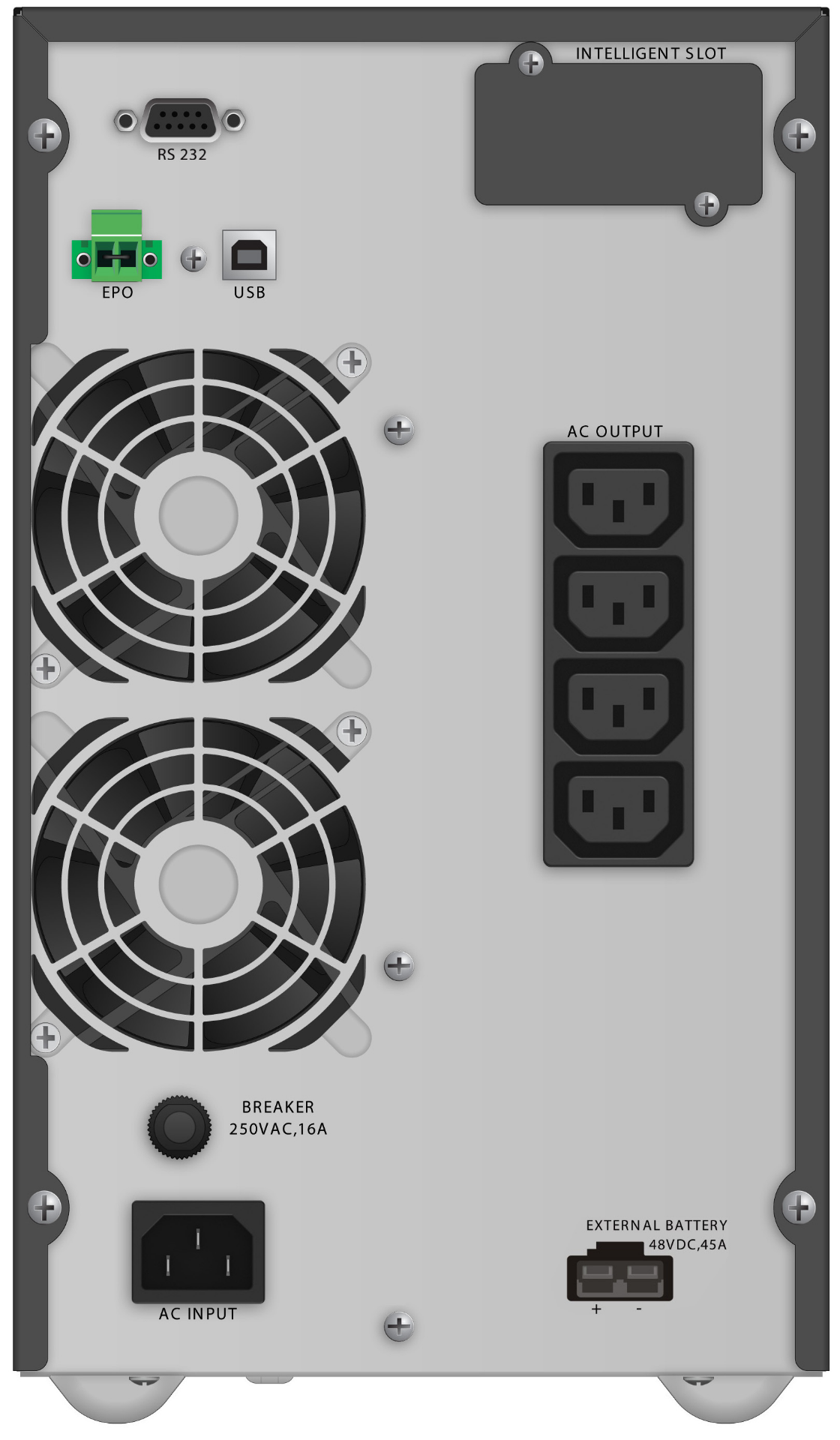

Connections and communication
IEC C13 Outlet 4
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
Environment
Noise Level < 50dB
Temperature 0°C – 40°C
Humidity 0% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-311
Package Content UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable
Manual Languages EN/DE/PL
EAN 4260074980363
Width 190 mm
Height 328 mm
Depth 399 mm
Weight 17.2 kg
Giftbox - Width 324 mm
Giftbox - Height 464 mm
Giftbox - Depth 500 mm
Giftbox - Weight 20 kg
