With true double-conversion online UPS design, PowerWalker VFI T Series provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.

Manufacturer: Powerwalker

SKU: PUP0032

Availability: Out of stock

€523.68 excl tax

Qty:

Full Description
Specifications
Tags

General Features
Type	Online Single Phase (VFI)
Form Factor	Tower
Power Capacity	3000VA / 2700W
Output Power Factor	0.90
Input
Input Voltage Range	Voltage Range Low Line Transfer 176/165/110VAC ± 3% @ 100-75%/75-50%/60-0% load Voltage Range Low Line Comeback 186/175/120VAC ±3% @ 100-75%/75-50%/60-0% load Voltage Range High Line Transfer 300VAC ± 3% Voltage Range High Line Comeback 290VAC ± 3%
Frequency Range	45Hz – 66Hz
Frequency (Synchronized Range)	45Hz – 55Hz or 54Hz – 66Hz
Output
Waveform	Pure Sine Wave
Nominal Output Voltage	220/230/240 VAC
THDv	≤3% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Battery Mode)	±2%
Frequency (Battery Mode)	±0,2Hz

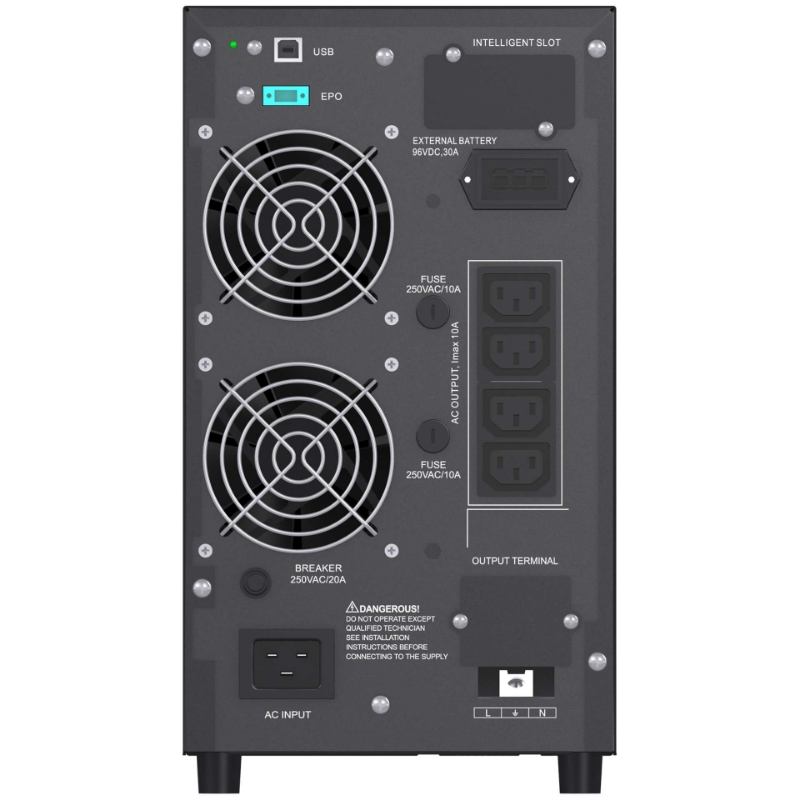

Input & Output Connectors
Input Connector	C20-UK
Output Type	IEC – UK
IEC C13	4
Terminal Output	Yes
Technical Details
LINE Mode Efficiency [%] (Full Load)	90.3
Battery Mode Efficiency [%] (Full Load)	87.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	4ms
Load Crest Ratio	3:1
IEC 62040-3 classification	VFI-SS-311
Batteries and Autonomy
Batteries	8x 12.0V/7.0Ah
DC Voltage	8x 12.0V
Recharge Time	5h to 90%
Full Load Backup Time [min]	3.1
Half Load Backup Time [min]	9.7
Charger	1A
External Battery Pack	Yes
Communication
Software	WinPower
Environment
Noise Level	< 50dB
Temperature	0°C – 45°C
Humidity	20% – 90% RH (non-condensing)
Logistics
Package Content	USB Cable, 2x IEC Cable, Manual, Input Power Cable
Manual Languages	EN
EAN	4260074977387
Product Weight [kg]	31.0
Package Weight [kg]	33.0
Pcs. per Outer Carton	1
Pcs. per Layer	4
Pcs. per Pallet	16
Pcs. per Pallet [Oversized]	16

Products specifications

Attribute name	Attribute value
Output Connections	C19
UPS Features	Rackmount
