General features
Type Online
Power capacity 6000VA / 6000W
Output Power Factor 1.00
Input
Input Voltage Range 110-300 VAC @ 0-60% load
140-300 VAC @ 60-80% load
176-300 VAC @ 80-100% load
Max THDi ≤4% @ 100% load; ≤6% @ 50% load
Input PF >0.99 @ full load
Frequency Range 46Hz - 54Hz or 56Hz - 64Hz
Frequency (Synchronized Range) 46Hz - 54Hz or 56Hz - 64Hz
Output
Nominal Output Voltage 208/220/230/240 VAC
Pure Sine Wave Yes
THDv ≤1.5% Full Linear Load; ≤7% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,1Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 0ms
Generator support Yes
Overload Capacity Line: 10min @100%-110%; 1min @110%-130%; 1s @>130%; BAT: 30s @100%-110%; 10s @110%-130%; 1s @>130%
External Battery Connection Yes
Charger 1-6A [2A]
Fan Logic Always on, automatic speed control
Efficiency
LINE mode full Load 94.0%
BATTERY mode full Load 91.0%
Batteries and autonomy time
Batteries 20x 12V/9Ah
DC Voltage 20 x 12V
Recharge Time 9h to 90%
Full Load Backup Time 6.5min
Half Load Backup Time 17min

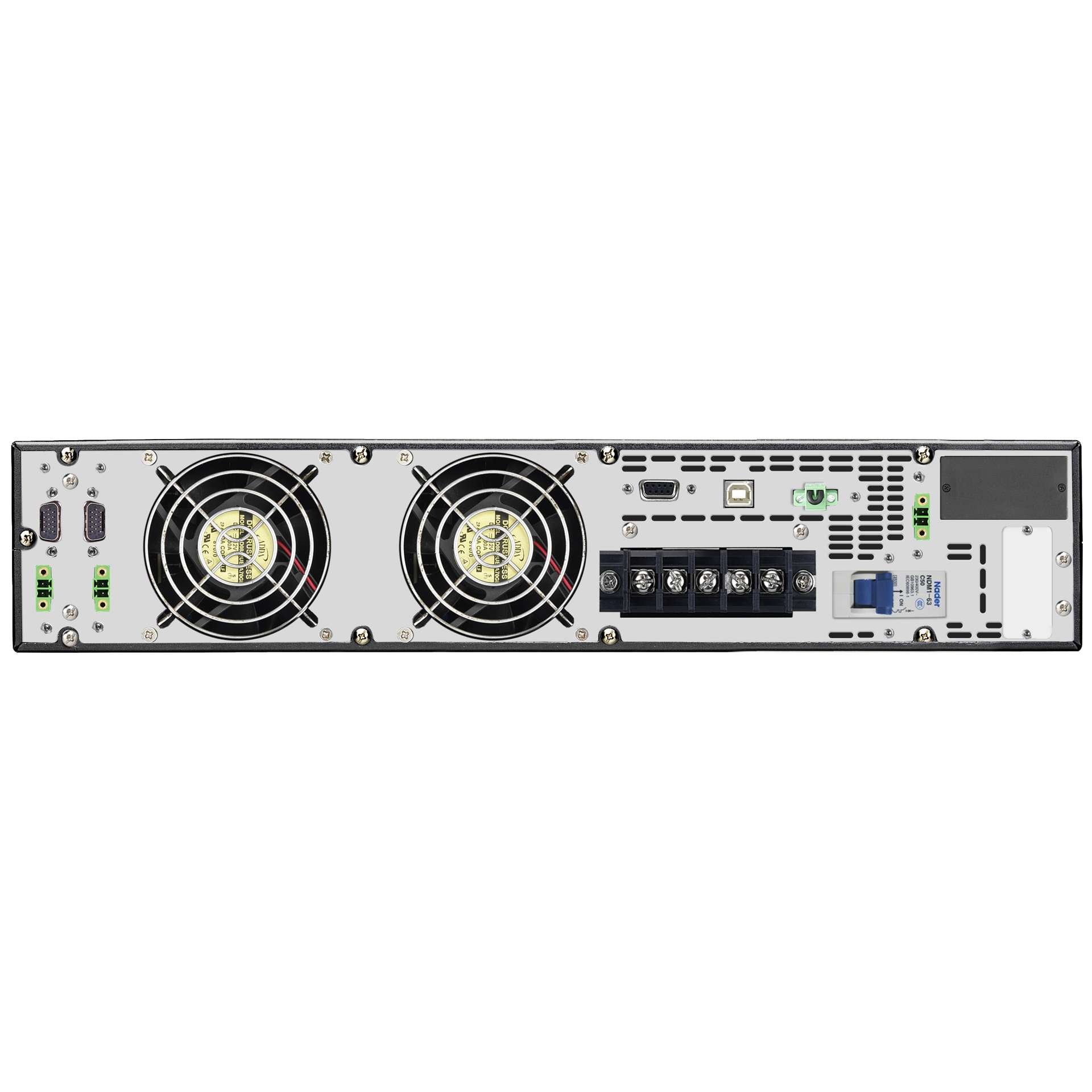

Connections and communication
Terminal Output 1
Input Terminal
Software ViewPower
USB port Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
Environment
Noise Level < 55dB
Temperature 0°C – 40°C
Humidity 20% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-111
Package Content UPS, Manual, USB Cable, Tower Holder
Manual Languages EN
EAN 4260074981988
Width 438 mm
Height 88 (UPS) 133 (BP) mm
Depth 600 (UPS) / 580 (BP) mm
Weight 17,7 (UPS) / 71,3 (BP) kg
Giftbox - Weight 19.0 (UPS) / 74,8 (BP) kg
Pcs. per box 1
