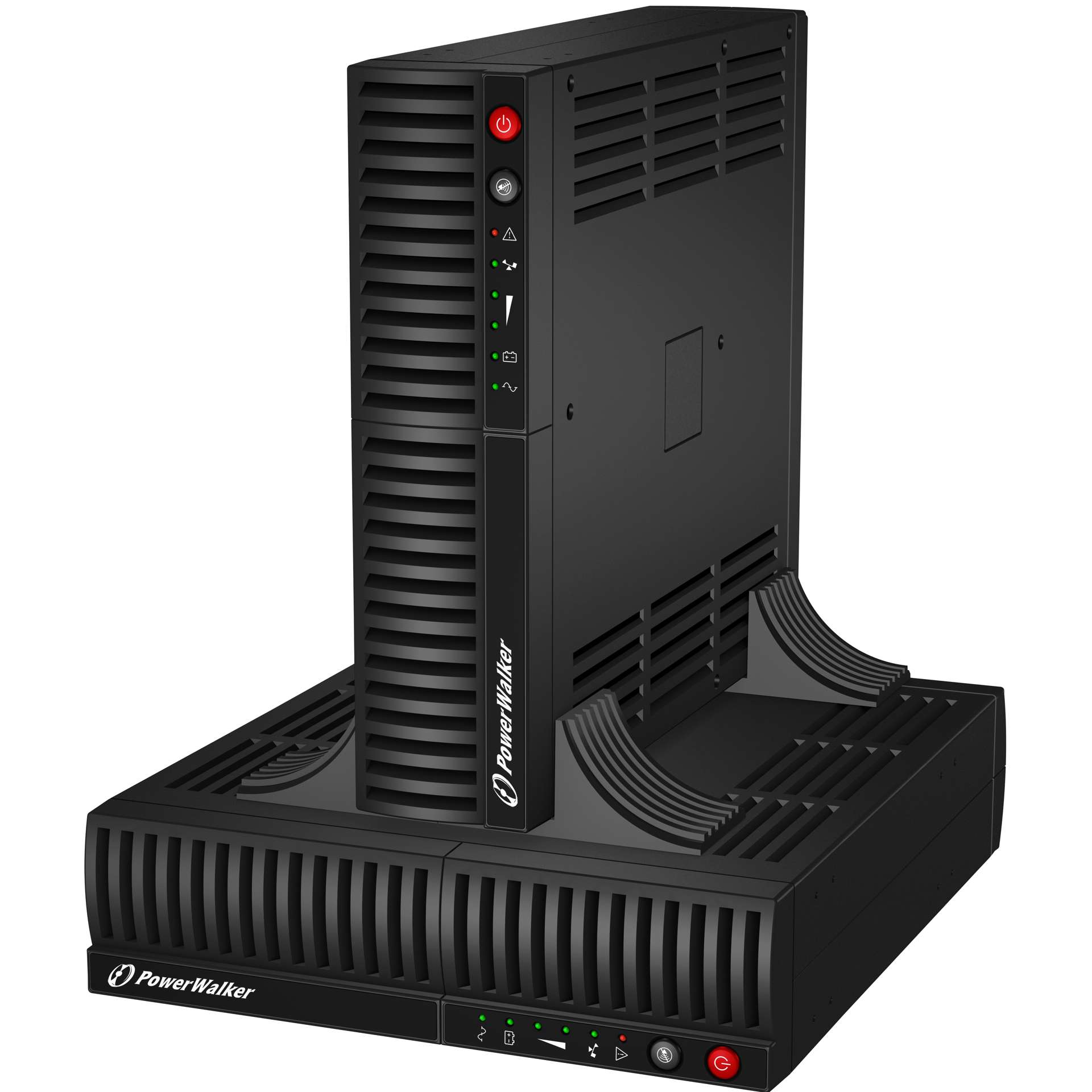

PowerWalker VI 1000-1500 RT/LE is a Line-Interactive UPS with pure sine wave output and designed for fulfilling high quality power protection demand. It offers a cost effective, rack mountable, full protection solution. Its dry-out contacts, integrated into the DB9 plug, are suitable for providing UPS status info to network/telephone communication systems as well as for industrial applications.

Manufacturer: Powerwalker

SKU: PUP0044

Availability: Out of stock

€177.95 excl tax

Qty:

Full Description
Specifications
Tags

General Features
Type	Line-Interactive (VI)
Form Factor	Rack
Power Capacity	1000VA / 600W
Output Power Factor	0.60
Input
Input Voltage Range	162-290 VAC
Frequency Range	45Hz – 65Hz (self-adaptive to 50/60Hz)
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Waveform	Pure Sine Wave
Nominal Output Voltage	230 VAC
Voltage Regulation (Battery Mode)	AVR: ±10%; Battery Mode: ±5%

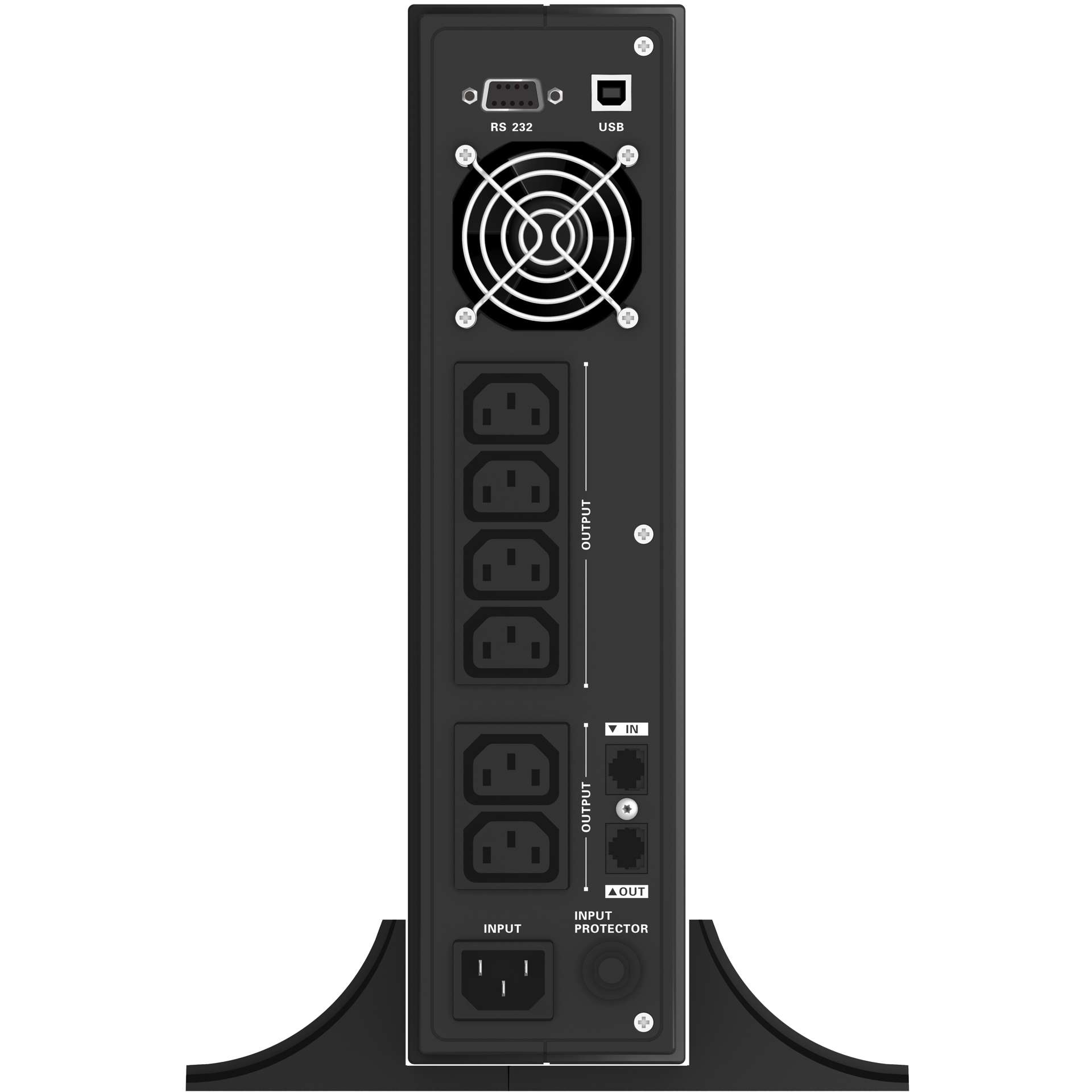

Input & Output Connectors
Input Connector	C14
Output Type	IEC
IEC C13	6
Technical Details
LINE Mode Efficiency [%] (Full Load)	0.0
IEC 62040-3 classification	VI-SY-333
Batteries and Autonomy
Batteries	2x 12.0V/7.0Ah
DC Voltage	2x 12.0V
Recharge Time	6h to 90%
Full Load Backup Time [min]	4.0
Half Load Backup Time [min]	11.0
Communication
Software	WinPower
Environment
Noise Level	< 45dB
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
Logistics
Package Content	USB Cable, IEC Cable, Manual, Input Power Cable
Manual Languages	PL, EN
EAN	4260074976601
Product Weight [kg]	8.6
Package Weight [kg]	9.3
Pcs. per Outer Carton	1
Pcs. per Layer	2
Pcs. per Pallet	24
Pcs. per Pallet [Oversized]	40

Products specifications

Attribute name	Attribute value
Output Connections	C19
UPS Features	Rackmount
