General functions
Type Line-Interactive
Energy capacity 1500VA / 900W
Outgoing energy factor 0.60
Input
Incoming voltage range 165-290 VAC
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal output voltage 230 VAC
Stepper sine wave And
THDv ≤3% Full Linear Load; ≤5% Non-Linear Load
Voltage regulation ±10%
Frequency (Battery Mode) ±0,5Hz
Technical details
Transfer Time [AC to Battery] 4ms typical
Charger 1A
Protection Overload protection on utility: fuse; on battery: internal current limiting
Efficiency
LINE mode full Load 95.0%
Energy Star compliance
Batteries and autonomous time
Batteries 4x 6V / 9Ah
DC Voltage 4 x 6V
Recharge Time 8h to 90%
Full Load Backup Time 0.4min
Half Load Backup Time 8.7min

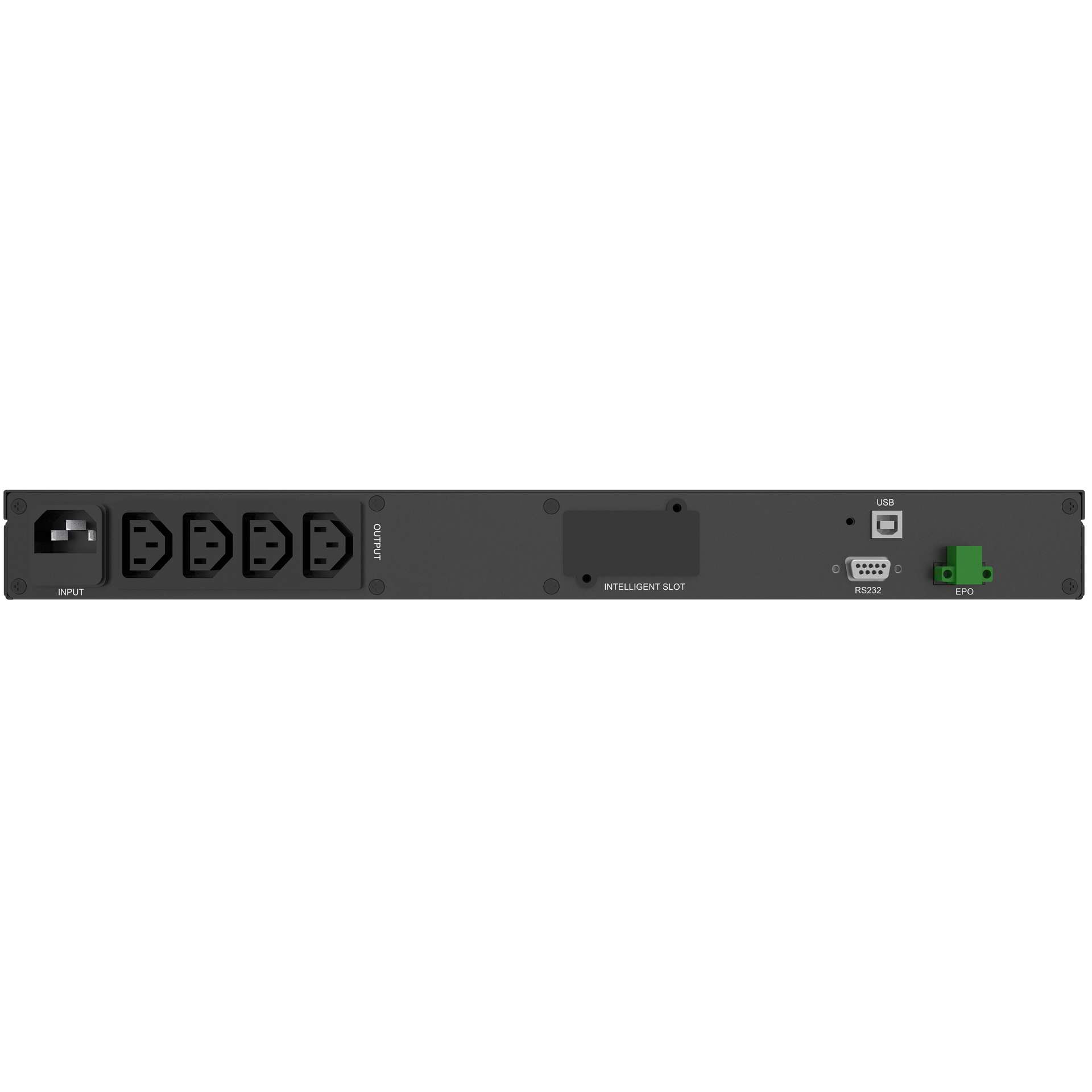

Connections and communication
IEC C13 Outlet 4
Input C14-UK
Program PowerMaster
USB port And
HID-support And
RS-232 Port And
Extension Slot And, 1
EPO Port And
Environment
Noise level No Fan
temperature 0°C – 40°C
Moisture 0% - 90% RH (non-condensing)
logistics
Package Content UPS, Manual, USB Cable, Input Power Cable, Rack Ears
Manual Languages ON
EAN 4260074981049
Width 433 mm
Weight 44 mm
Depth 485 mm
Weight 16.2 kg
Giftbox - Width 553 mm
Giftbox - Weight 150 mm
Giftbox - Deep 475 mm
Giftbox - Weight 18.5 kg
