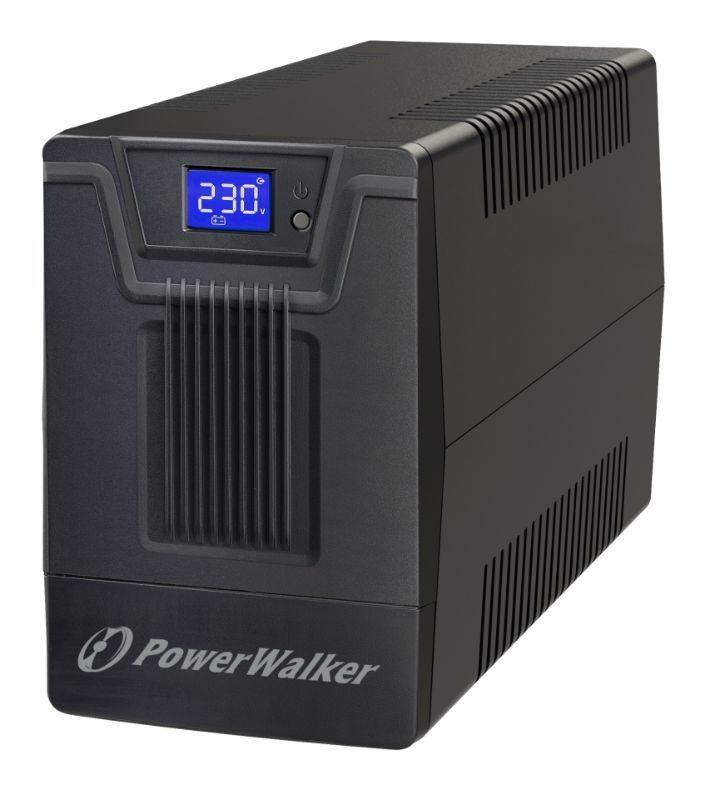

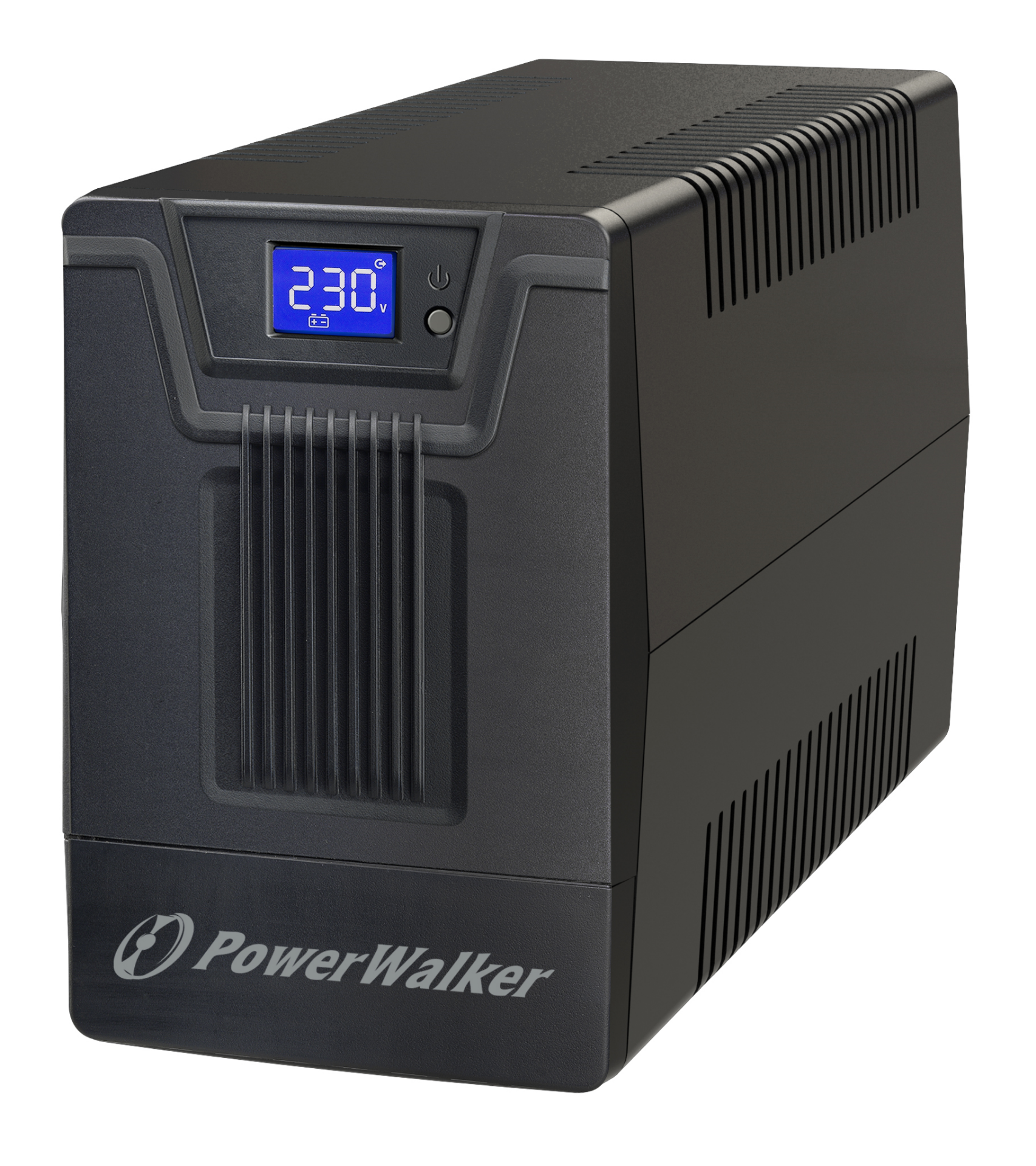

The PowerWalker VI SCL (Line-Interactive) series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID.

Manufacturer: Powerwalker

SKU: PUP0110

GTIN: 4260074982282

Availability: Out of stock

Full Description
Specifications

General features
Type Line-Interactive
Power capacity 1500VA / 900W
Output Power Factor 0.60
Input
Input Voltage Range 162-290 VAC
Frequency Range 50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 230 VAC
Voltage Regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±1Hz
Technical details
Transfer Time [AC to Battery] 2-6ms
Overload Capacity N/A
Charger 1A
Protection Overload, discharge and overcharge protection
Efficiency
LINE mode full Load 94.0%
Batteries and autonomy time
Batteries 2x 12V/9Ah
DC Voltage 2 x 12V
Recharge Time 4-6h to 90%
Full Load Backup Time 1.3min
Half Load Backup Time 6.5min
Connections and communication

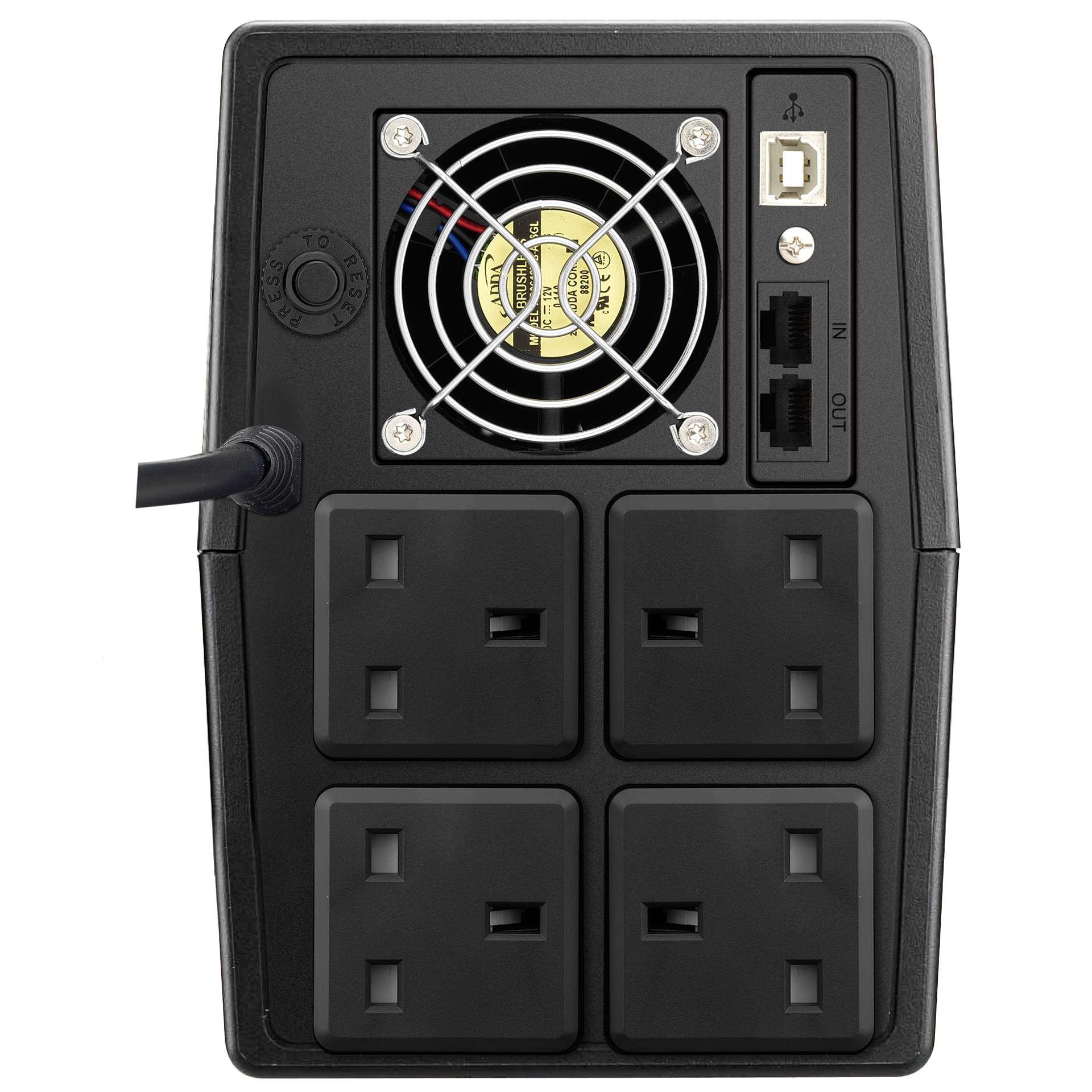

BS-1363 (Type G) UK Outlet 4
Input UK
Software ViewPower
USB port Yes
HID Support Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level < 40dB
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package Content UPS, Manual
Manual Languages EN/DE/FR/IT/ES/PT/PL/RU
EAN 4260074982282
Width 130 mm
Height 182 mm
Depth 320 mm
Weight 10.4 kg
Giftbox - Width 192 mm
Giftbox - Height 275 mm
Giftbox - Depth 390 mm
