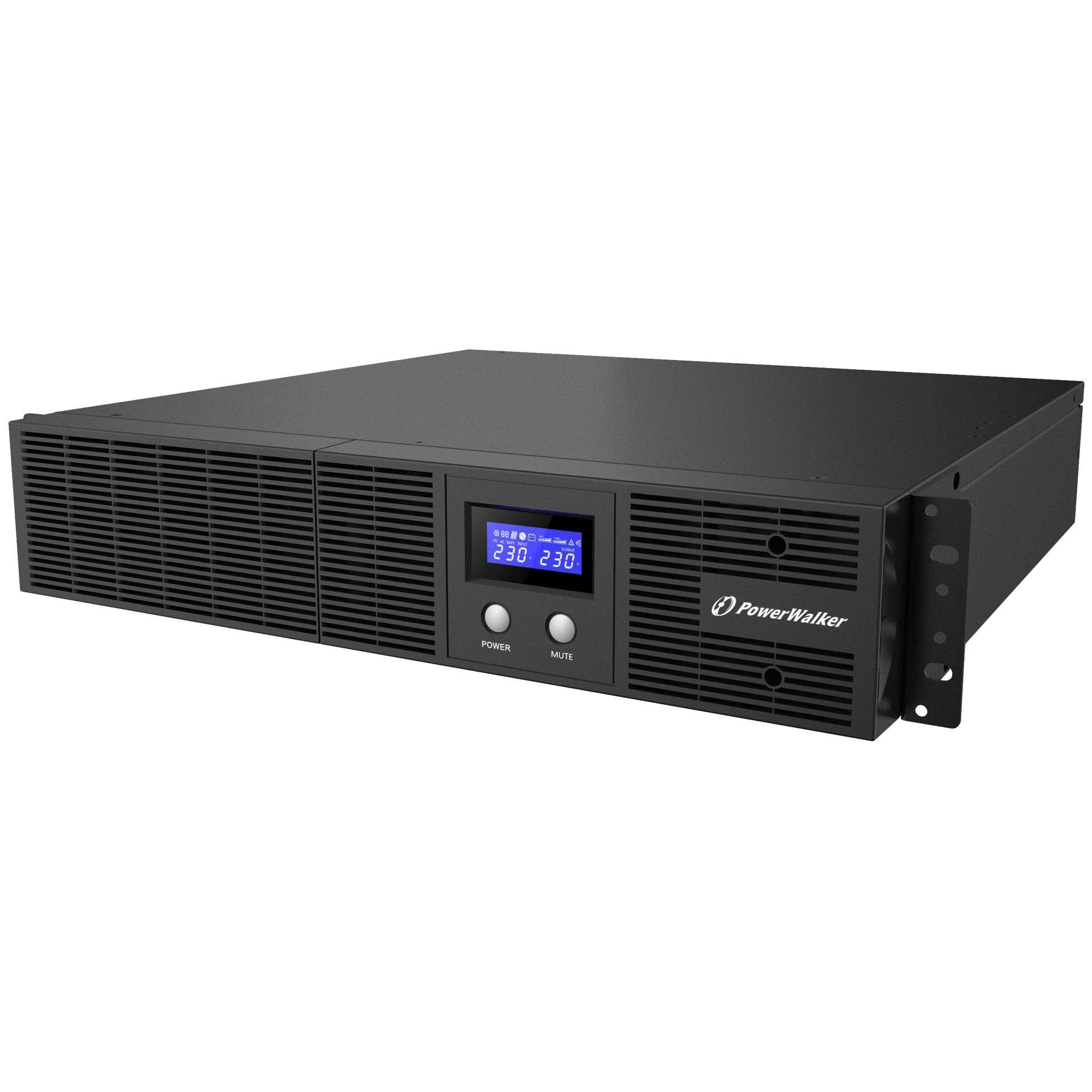

The PowerWalker VI RLE is a compact 2U Line-Interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software. Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD provides all the necessary information and will auto-dimm after a few seconds. These features make the UPS series an attractive solution for home use as well.
Manufacturer: Powerwalker
SKU: PUP0106
Availability: Out of stock
€399.11 excl tax
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorRack
Rack Units [U]2U
Power Capacity3000VA / 1800W
Output Power Factor0.60
INPUT
Input Voltage Range165-290 VAC
Frequency Range45Hz – 65Hz
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage230 VAC
THDv≤3% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±0.5Hz

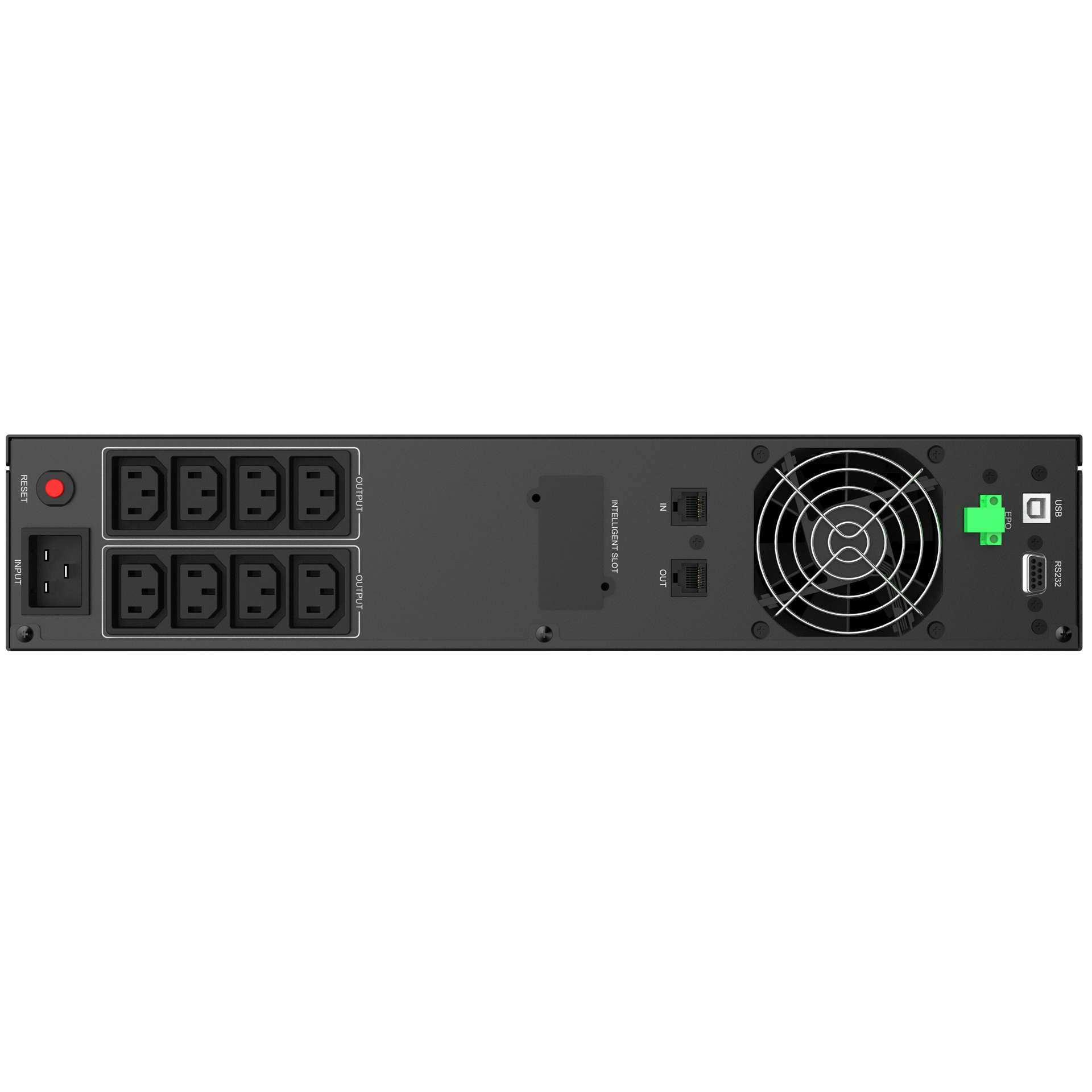

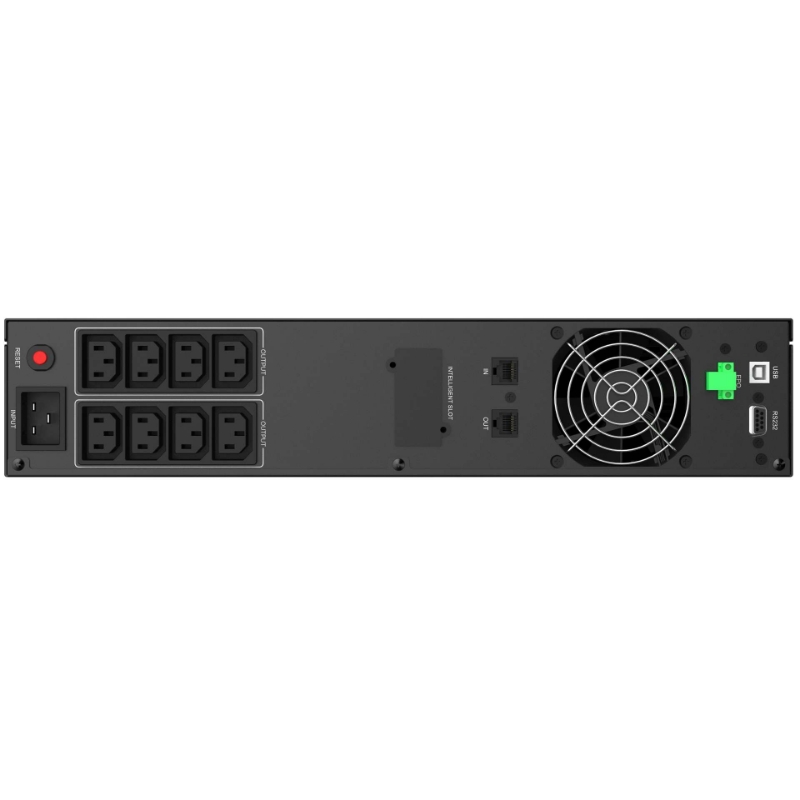

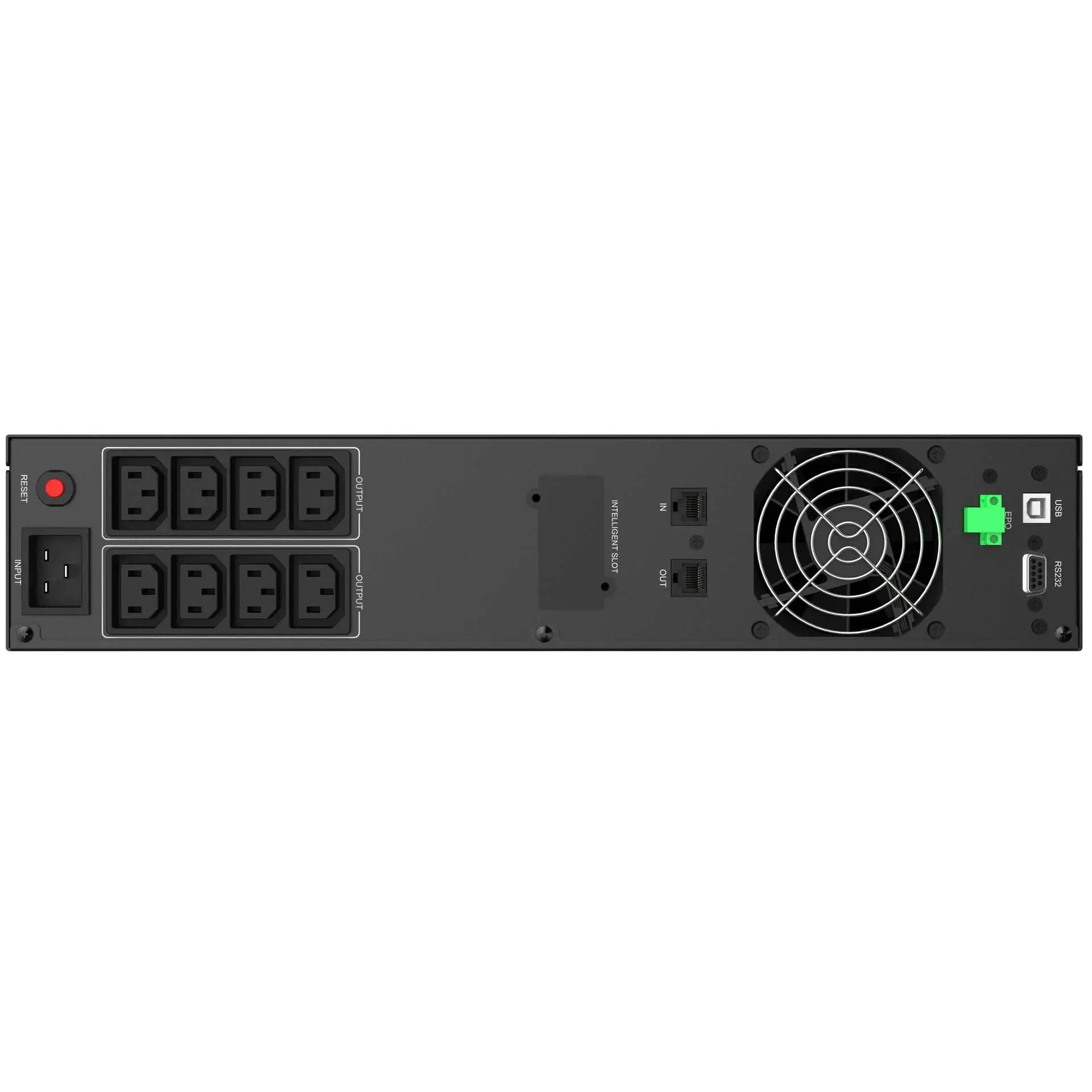

INPUT & OUTPUT CONNECTORS
Input ConnectorC20-UK
Output TypeIEC – UK
IEC C138
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)98.0
Battery Mode Efficiency [%] (Full Load)80.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]4ms typical
Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
Additional FeaturesLCD Display, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Energy Saving Function
BATTERIES AND AUTONOMY
Batteries4x 12.0V/7.2Ah
DC Voltage4x 12.0V
Recharge Time4h to 90%
Full Load Backup Time [min]1.3
Half Load Backup Time [min]7.4
Charger2A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software, RS-232, Management Card Slot
SoftwarePowerMaster
ENVIRONMENT
Noise Level< 50dB
Fan LogicFan Off: Line Mode



Fan On: Battery Mode, AVR ON, Battery Charging

Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentRack Ears, Input Power Cable, Manual, USB Cable, IEC Cable, UPS
Manual LanguagesDE, PL, EN
EAN4260074981230
Product Dimensions (DxWxH) [mm]430 x 438 x 88 mm
Product Weight [kg]21.8
Package Dimensions (DxWxH) [mm]231 x 556 x 550 mm
Package Weight [kg]23.6
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
UPS FeaturesRackmount, LCD, Pure Sinewave
UPS TypeLine Interactive
Output ConnectionsC13
UPS PowerUp to 3000 VA

PowerWalker VI 3000 RLE UK Art No. 10122139
