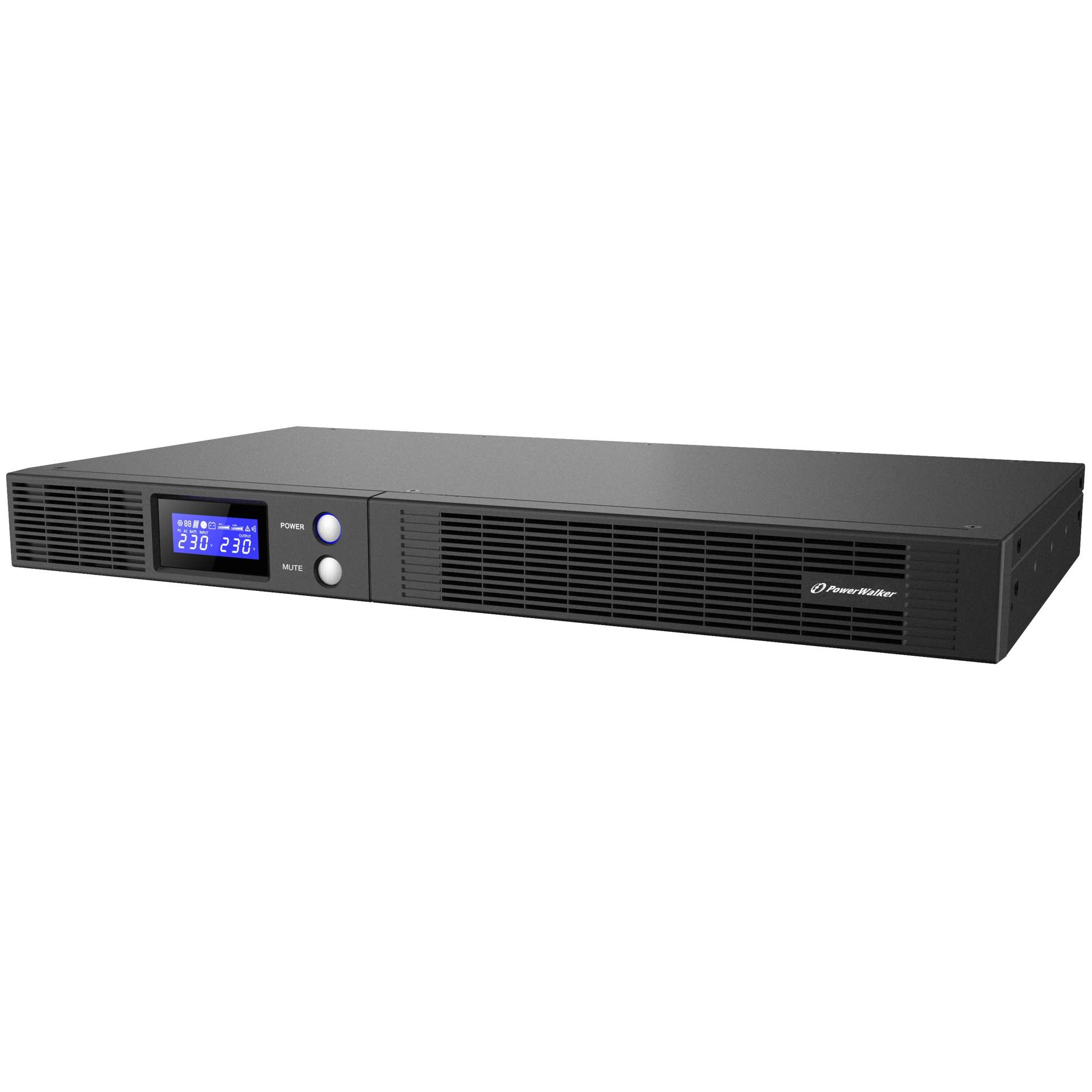

The PowerWalker VI R1U is a Line-Interactive rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting, and fits perfectly for applications where space is a main concern (they also have very low-depth, only 216 mm for the smaller models). It is equipped with pure sine wave output, and it includes an intelligent card slot for network cards, so that even sensitive and critical loads can be kept safe. Considering that the fac is completely switched off in normal operation and the LCD dims out automatically, neither noise nor LCD lighting will disturb you. The PowerWalker VI R1U is a flexible all-rounder for home and semi-professional environments.

Manufacturer: Powerwalker

SKU: PUP0097

Availability: 2 in stock

€216.92 excl tax

Qty:

Full Description
Specifications

Main Features
Type Line-Interactive
Capacity 750VA / 450W
Output power factor 0.60
Input
Input voltage range 165-290 VAC
Frequency (Synchronized Range) 50Hz or 60Hz
Exits
Nominal output voltage 230 VAC
Pure sine wave Yes
THDv ≤3% Full Linear Load; ≤5% Non-Linear Load
Voltage regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±0,5Hz
Technical details
Transfer Time [AC to Battery] 4ms typical
Charger 1A
Protection Overload protection on utility: fuse; on battery: internal current limiting
Efficiency
LINE mode full Load 95.0%
Energy Star compliance
Batteries and backup time
Batteries 2x 6V / 9Ah
DC Voltage 2 x 6V
Recharge Time 8h to 90%
Full Load Backup Time 0.4min
Half Load Backup Time 8.7min

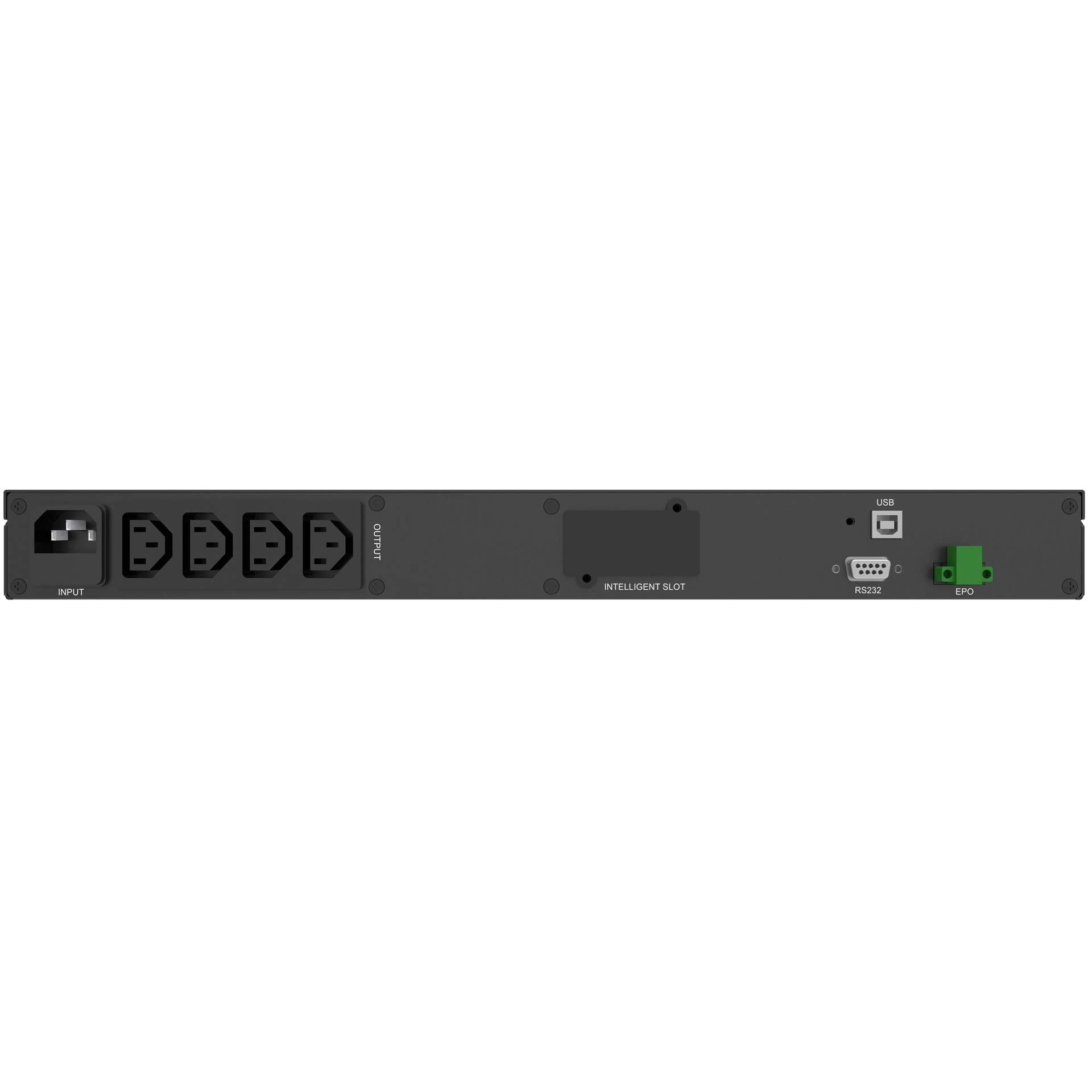

Connections and communication
IEC C13 Outlet 4
Input C14-UK
Software PowerMaster
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
Environment
Noise level No Fan
Temperatures 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package contents UPS, Manual, USB Cable, Input Power Cable, Rack Ears
Manual languages IN
EAN 4260074981025
Width 433 mm
Height 44 mm
Depth 216 mm
Weight 8.6 kg
Giftbox - Largeur 537 mm
Giftbox - Hauteur 150 mm
Giftbox - Depth 317 mm
Giftbox - Poids 9.8 kg
Pcs. per box 1

Products specifications

Attribute name	Attribute value
UPS Features	Rackmount, LCD, Pure Sinewave
UPS Type	Line Interactive
Output Connections	C13
UPS Power	Up to 1000 VA

PowerWalker VI 750 R1U IEC/UK Art. No. 10120702
