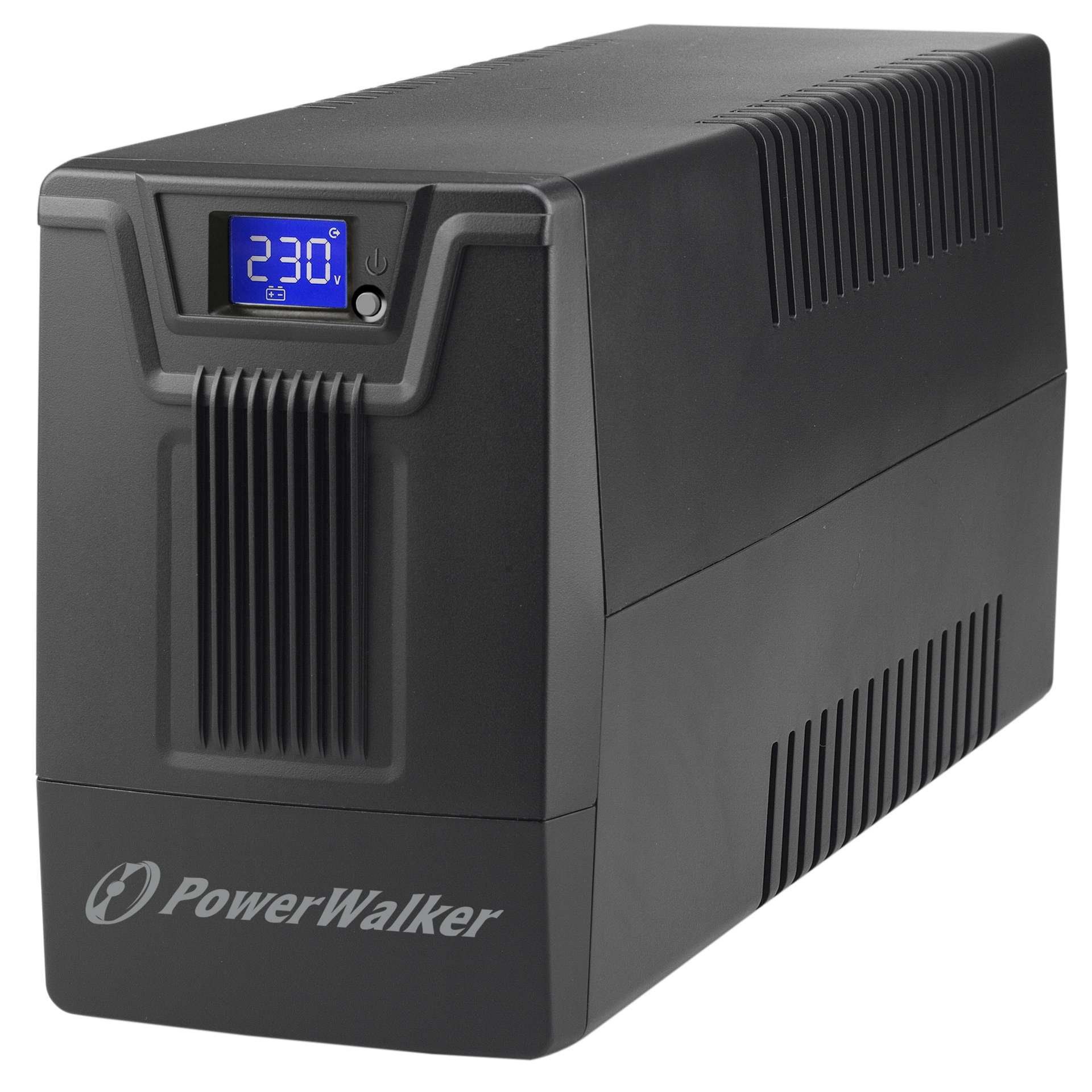

The PowerWalker VI SCL (Line-Interactive) series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID
Manufacturer: Powerwalker
SKU: PUP0108
GTIN: 4260074982268
Availability: Out of stock
Login to view Price
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity800VA / 480W
Output Power Factor0.60
INPUT
Input Voltage Range162-290 VAC
Frequency Range50Hz or 60Hz (self-adaptive)
OUTPUT
WaveformSimulated Sine Wave
Nominal Output Voltage230 VAC
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±1Hz
INPUT & OUTPUT CONNECTORS
Input ConnectorUK
Output TypeType G
Type G (BS 1363)2
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)94.0
Battery Mode Efficiency [%] (Full Load)60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]2-6ms
Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
Additional FeaturesCircuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classificationVI-SY-333
BATTERIES AND AUTONOMY
Batteries1x 12.0V/9.0Ah
DC Voltage1x 12.0V
Recharge Time4h to 90%
Full Load Backup Time [min]0.0
Half Load Backup Time [min]2.5
Charger1A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software
SoftwareViewPower
ENVIRONMENT
Noise Level< 30dB
Fan LogicNo fan
Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentManual, UPS
Manual LanguagesDE, IT, RU, PL, FR, ES, PT, EN
EAN4260074982268
Product Dimensions (DxWxH) [mm]300 x 101 x 142 mm
Product Weight [kg]5.0
Package Dimensions (DxWxH) [mm]344 x 140 x 220 mm
Package Weight [kg]6.2
Pcs. per Outer Carton4
Products specifications
Attribute nameAttribute value
Output ConnectionsUK plug
UPS FeaturesTower, LCD
UPS TypeLine Interactive
UPS PowerUp to 1000 VA

PowerWalker VI 800 SCL UK Art No. 10121154
