For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Manufacturer: Samsung

SKU: CSS0104

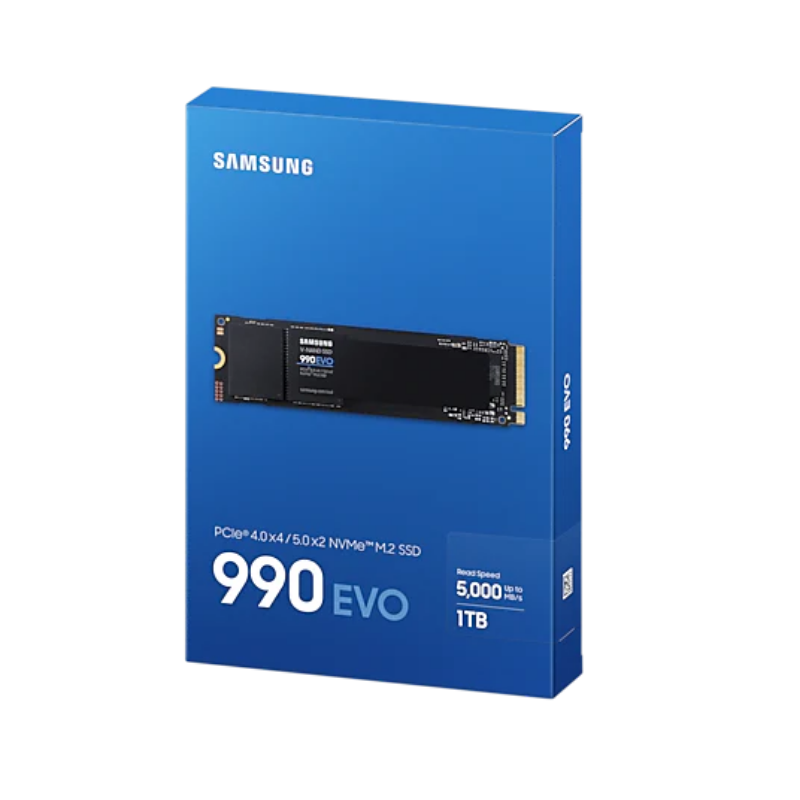

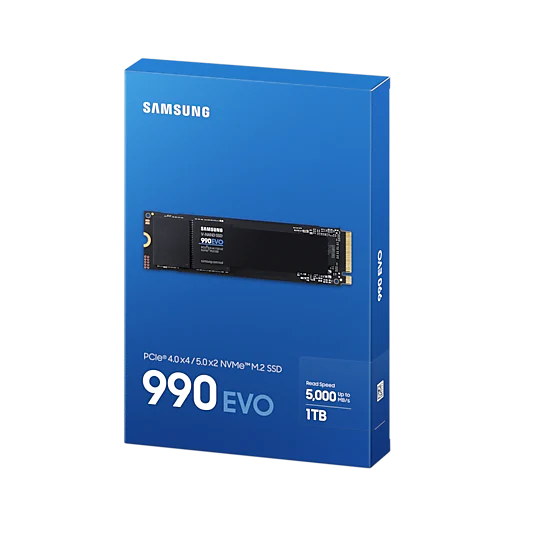

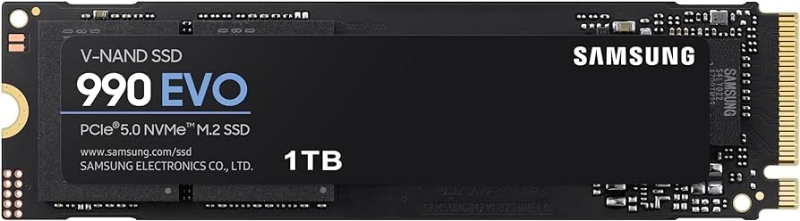

Manufacturer part number: MZ-V9E1T0BW

GTIN: 8806095300276

Availability: Out of stock

Full Description
Specifications

General Feature

ApplicationClient PCs
Rated Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form FactorM.2 (2280)
InterfacePCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
Dimension (WxHxD)80 x 22 x 2.38 mm
WeightMax 9.0g Weight
Storage MemorySamsung V-NAND TLC
ControllerSamsung in-house Controller
Cache MemoryHMB(Host Memory Buffer)

Special Feature

TRIM SupportSupported
S.M.A.R.T SupportSupported
GC (Garbage Collection)Auto Garbage Collection Algorithm
Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN SupportNot supported
Device Sleep Mode SupportYes

Performance

Sequential ReadUp to 5,000 MB/s * Performance may vary based on system hardware & configuration
Sequential WriteUp to 4,200 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)Up to 680,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)Up to 800,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)Up to 20,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)Up to 90,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)*Average: Read 4.9 W / Write 4.5 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Device Sleep)Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage3.3 V ± 5 % Allowable voltage
Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
Operating Temperature0 - 70 ℃ Operating Temperature
Shock1,500 G & 0.5 ms (Half sine)
