Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards. Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

Manufacturer: Thermaltake

SKU: CPO0096

Manufacturer part number: PS-TPD-1650FNFAGE-4

GTIN: 4713227534468

Availability: 3 in stock

Full Description
Specifications

WATTS 1650W
MODEL TPD-1650AH3FSG
MAX. OUTPUT CAPACITY 1650W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 180mm(D)
WEIGHT 2.14 KG
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-250 msec
INPUT CURRENT 20 – 16A
INPUT FREQUENCY RANGE 50-60Hz
INPUT VOLTAGE 100 – 240V~
OPERATING TEMPERATURE 0°C to + 50°C
OPERATING HUMIDITY 20% to 90%,non-condensing
STORAGE TEMPERATURE -40°C to + 70°C
STORAGE HUMIDITY 20% to 95%, non-condensing
COOLING SYSTEM 14cm hydraulic bearing fan
EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC
PCI-E 6+2PIN 9
PCIE 12+4PIN 2

Products specifications

Attribute name	Attribute value
Efficiency	Gold
Wattage	1300w +
PSU Form Factor	ATX

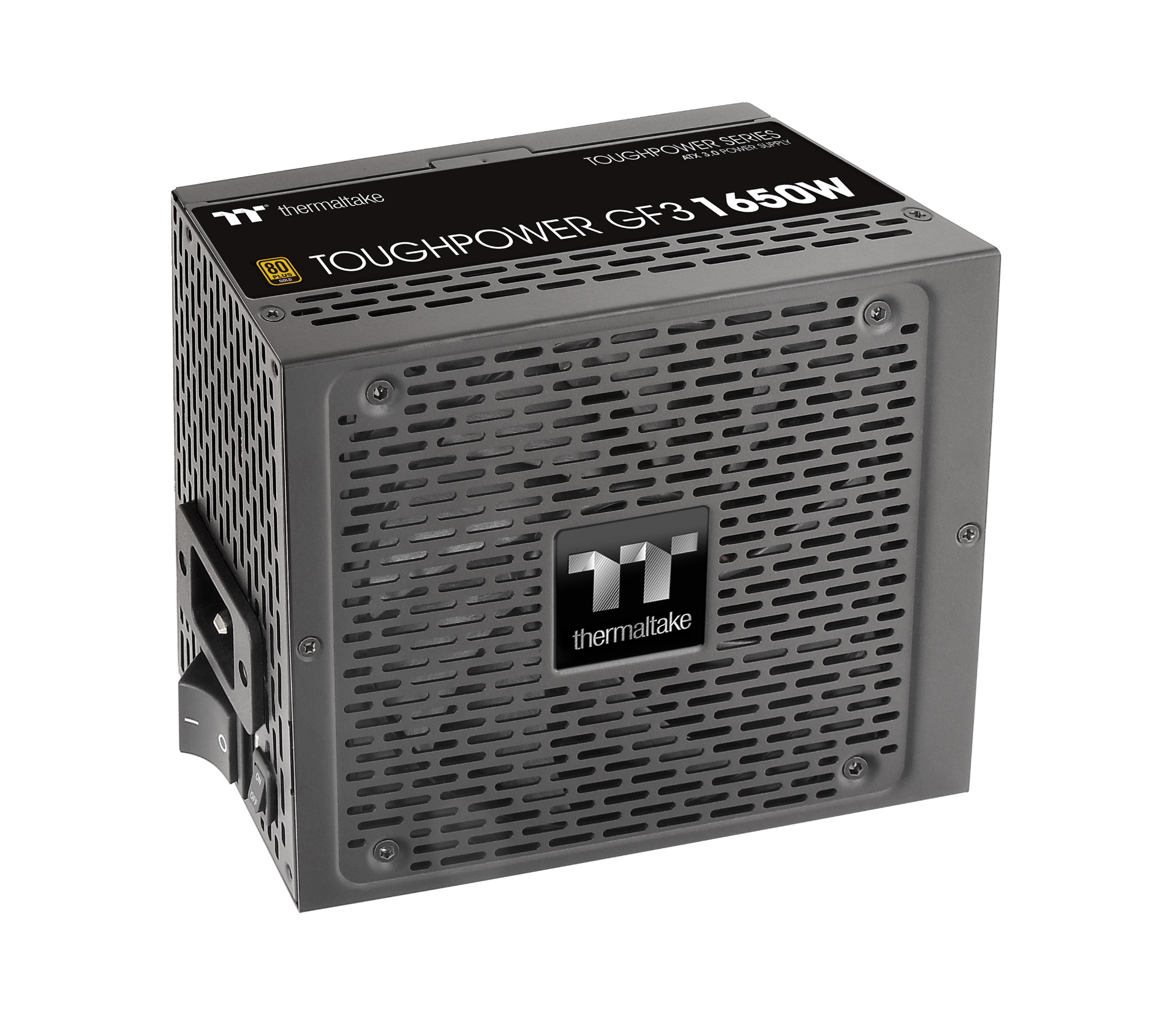

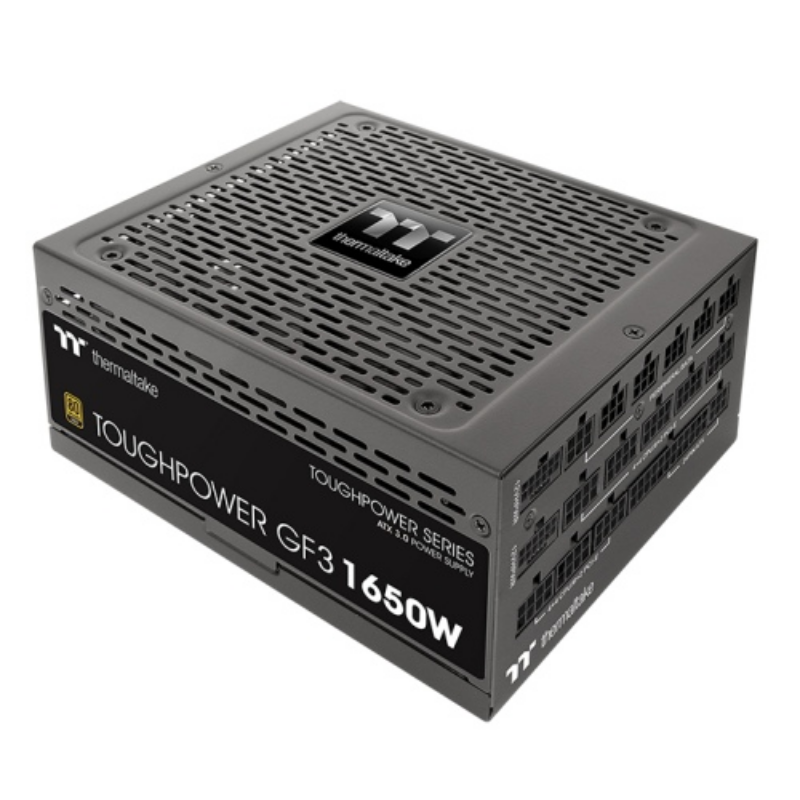

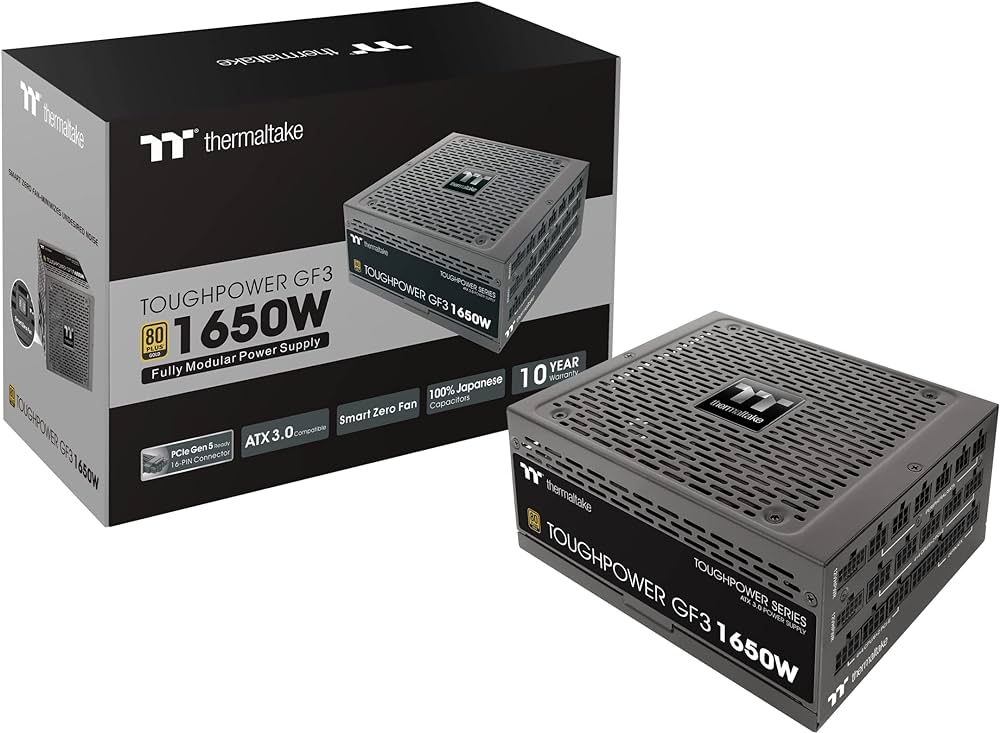

Thermaltake ToughPower GF3 1650W Fully Modular 80 Plus Gold PS-TPD-1650FNFAGE-4
