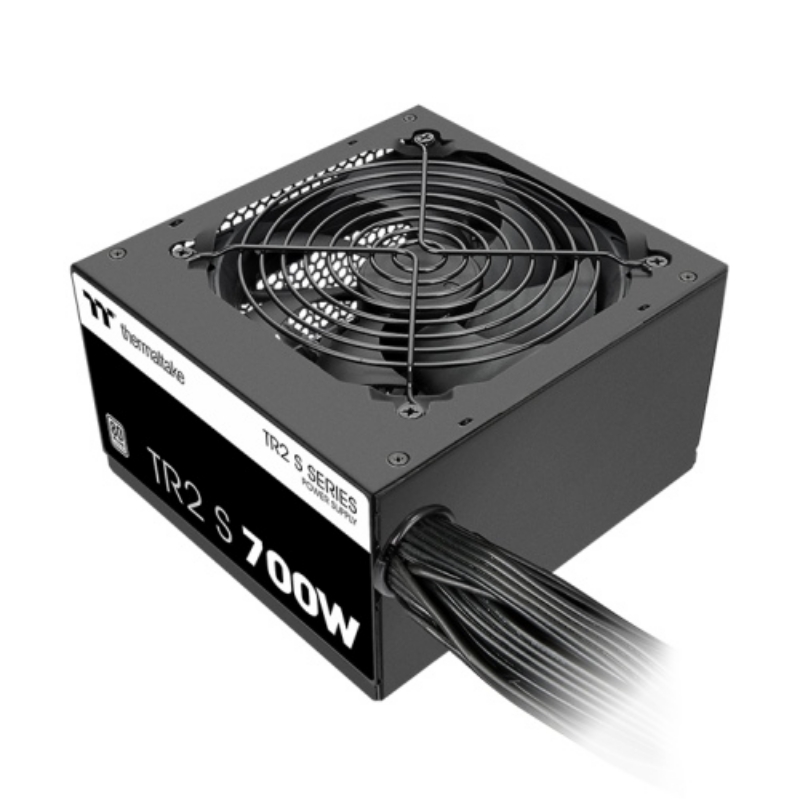

The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.

Manufacturer: Thermaltake

SKU: CPO0145

Manufacturer part number: PS-TRS-0700NPCWEU-2

GTIN: 4717964401908

Availability: 3 in stock

Full Description
Specifications
Tags

P/N	PS-TRS-0700NPCW**-2
watts	700W(DC to DC)
Model	TRS-700AH4NXW
Dimension ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-150 msec
Hold Up Time	> 17msec at 80% load
Input Current	8A Max.
Input Frequency Range	50Hz
Input Voltage	200-240Vac
OPERATING TEMPERATURE	5°C to + 40°C
Operating Humidity	20% to 85%,non-condensing
Storage Temperature	-40°C to + 55°C
Storage Humidity	10% to 95%, non-condensing
COOLING SYSTEM	12cm Hydraulic Bearing Fan
Efficiency	80 PLUS® 230V EU Certified
MTBF	100,000 hrs minimum
Safety Approval	FCC/ICES/CB/cTUVus
PCI-E 6+2pin	2
Input current	8A Max.
PROTECTION	OVP/OPP/SCP
