HARDWARE FEATURES

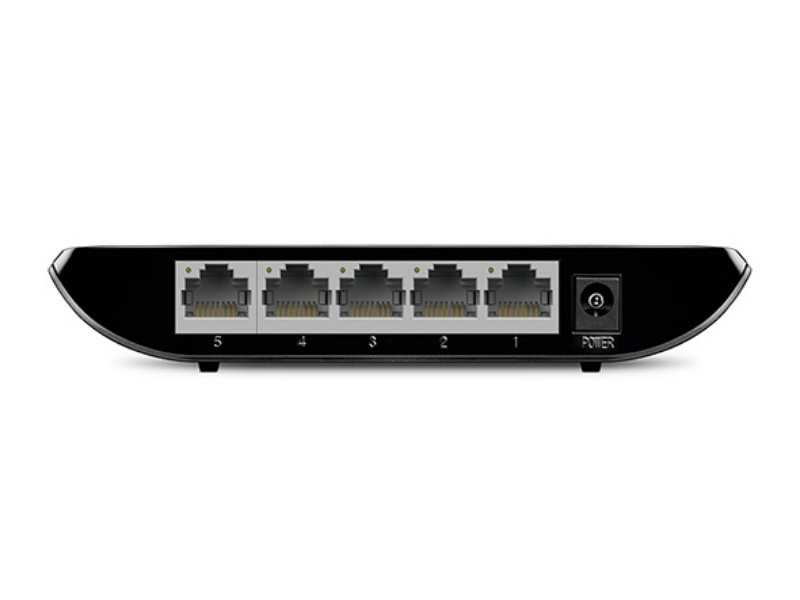

Interface 5 10/100/1000Mbps RJ45 Ports
Auto Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter
(Output: 9VDC / 0.6A)
Dimensions ( W x D x H ) 5.5 × 3.5 × 0.9 in.
(140 × 88 × 23 mm)
Max Power Consumption 2.4W
Max Heat Dissipation 8.2 BTU/h
SOFTWARE FEATURES
Transmission Method Store and Forward
Advanced Functions Green Technology
802.3x Flow Control
Back Pressure
802.1p/DSCP QoS
OTHERS
Certification FCC, RoHs

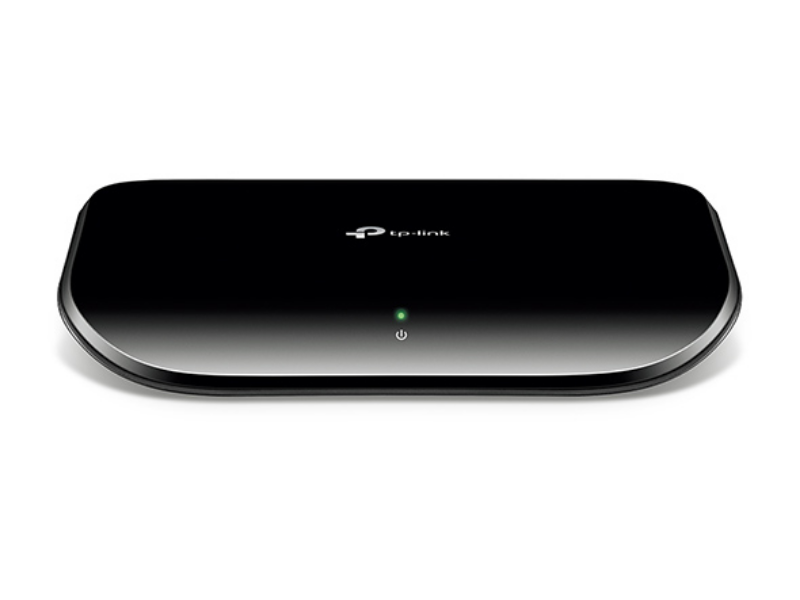

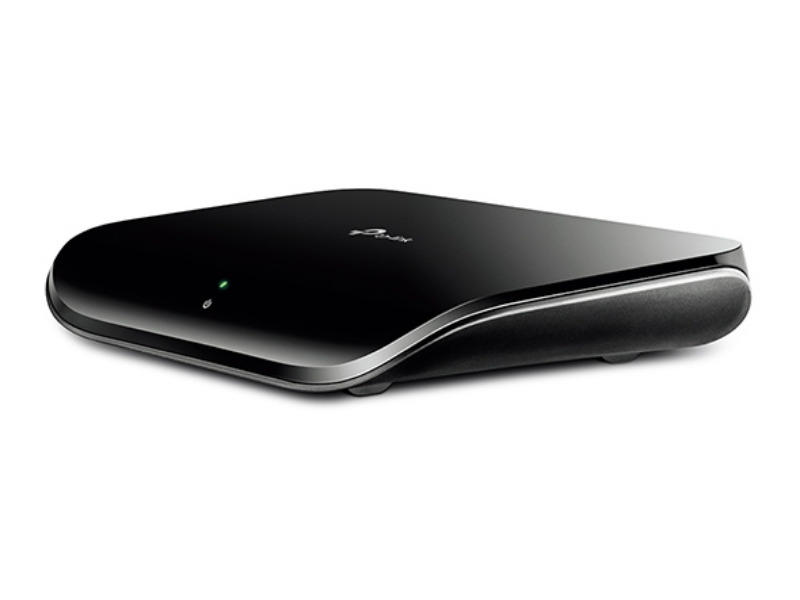

Package Contents 5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
