Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3 x 8.7 x 1.7 in.
(440 x 220 x 44 mm)
Mounting 19" 1U Rack Mountable
(Mounting bracket included)
Max Power Consumption 32.3W
Max Heat Dissipation 110.2BTU/h
PERFORMANCE
Switching Capacity 96Gbps
Packet Forwarding Rate 71.4Mpps
MAC Address Table 16K
Buffer Memory 12Mb
Jumbo Frame 12KB
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS

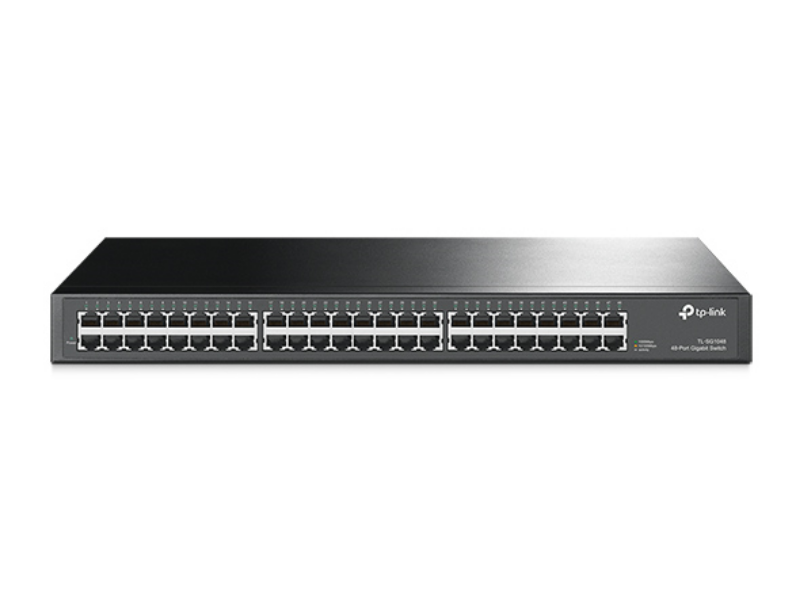

Package Contents 48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
