HARDWARE FEATURES
Standards and Protocols IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

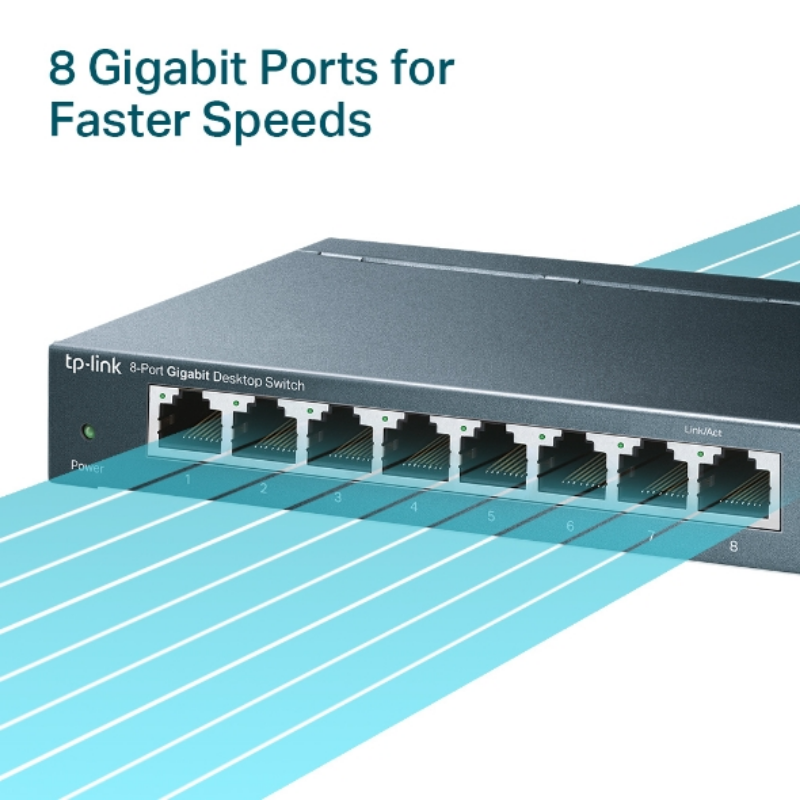

Interface 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Max Power Consumption 3.6 W
Max Heat Dissipation 12.1 BTU/h
PERFORMANCE
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
