HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter 100VAC ~ 240VAC
(Output: 48VDC / 1.25A)
PoE+ Ports(RJ45)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption 5.2W with no PoE device connected
65.2W with 55W PoE devices connected
Max Heat Dissipation 17.6 BTU/h (with no PD connected)
222.4 BTU/h (with 55W PD connected)
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, RoHS

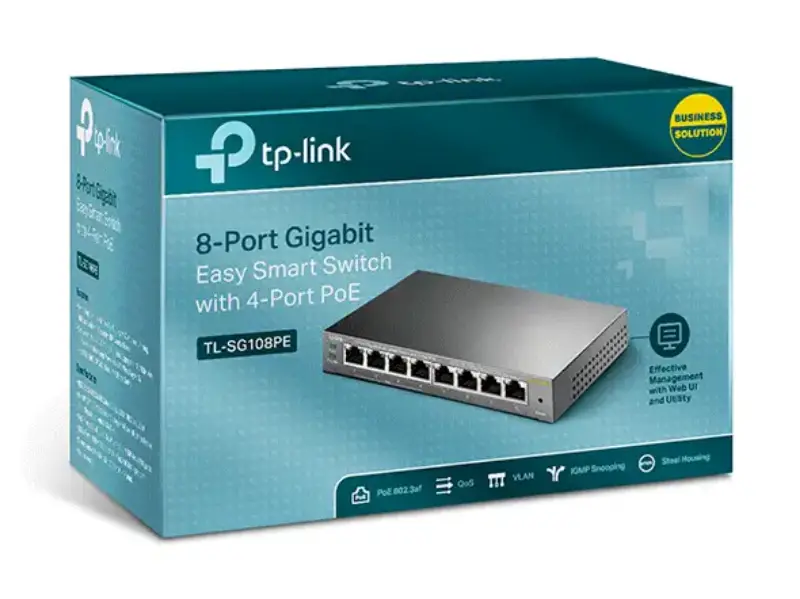

Package Contents TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
