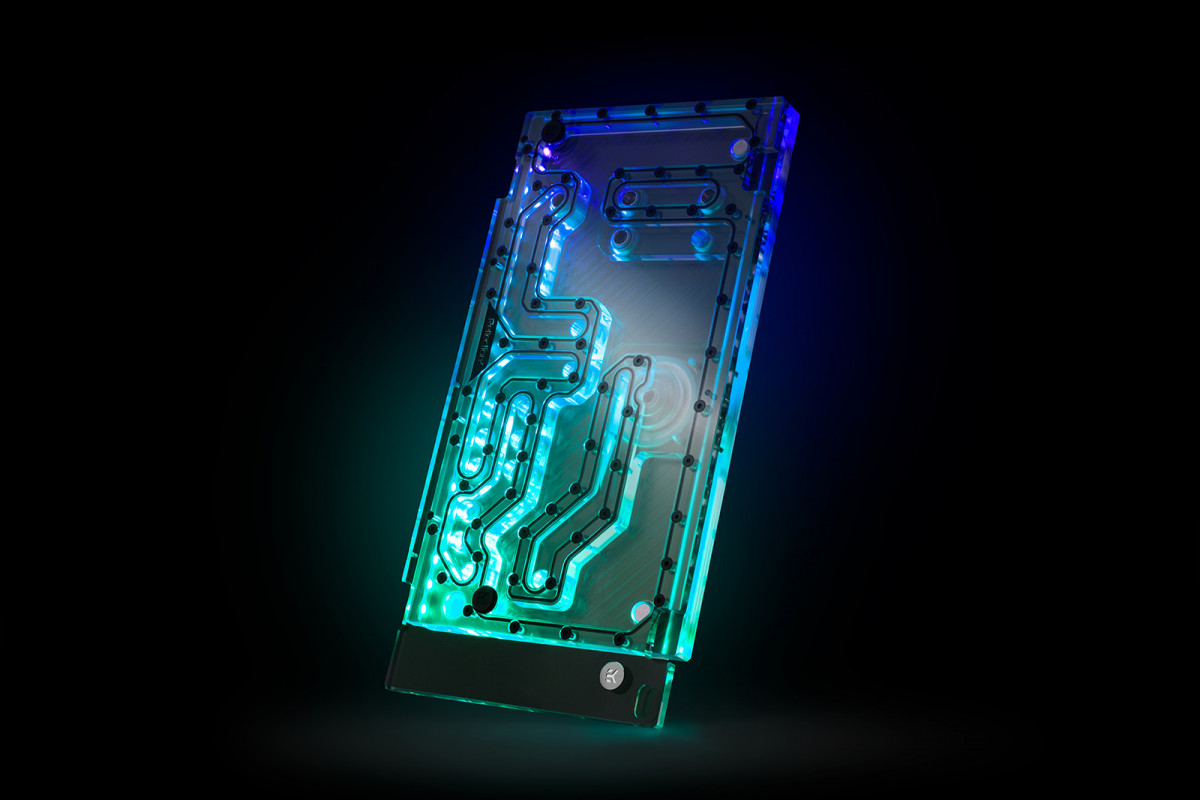

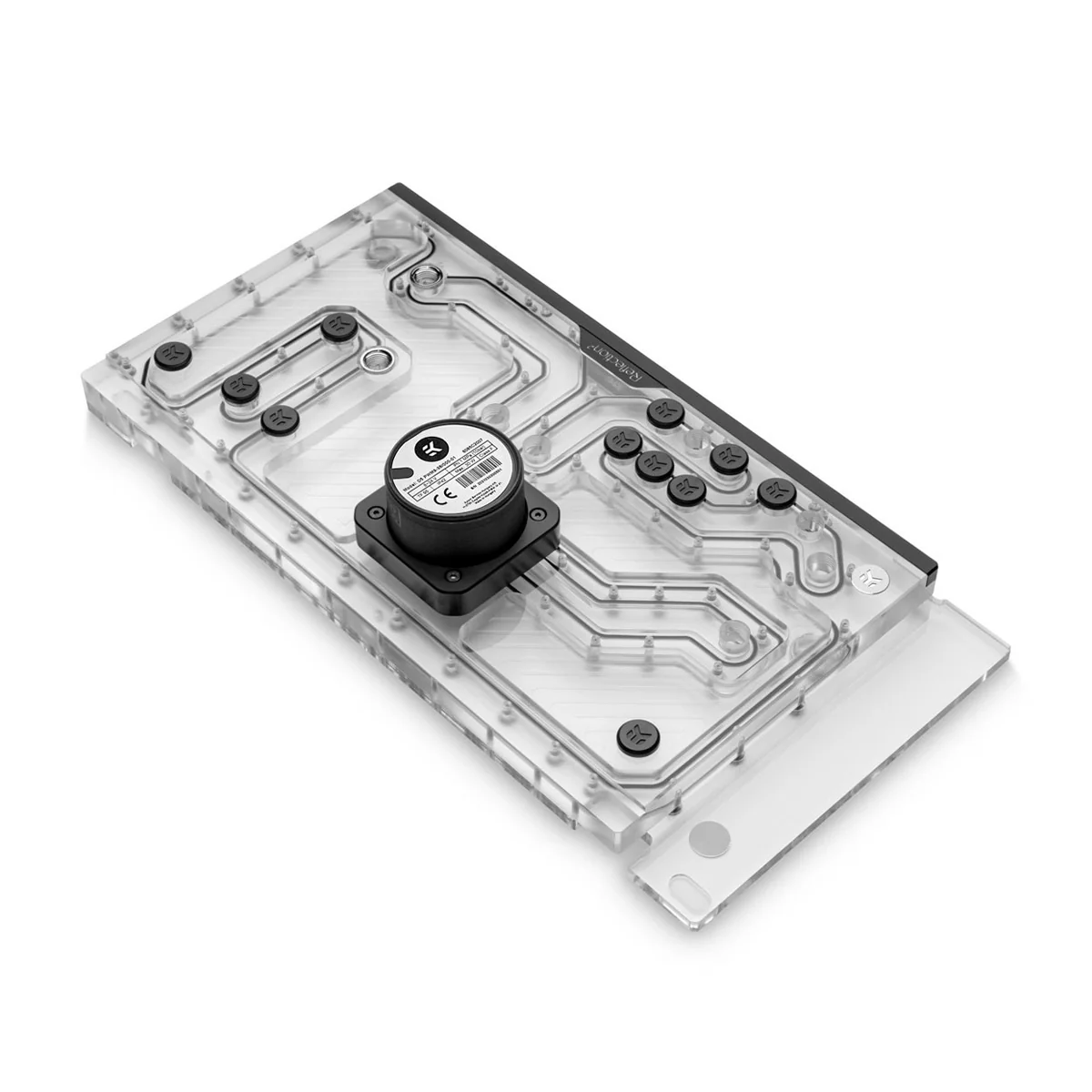

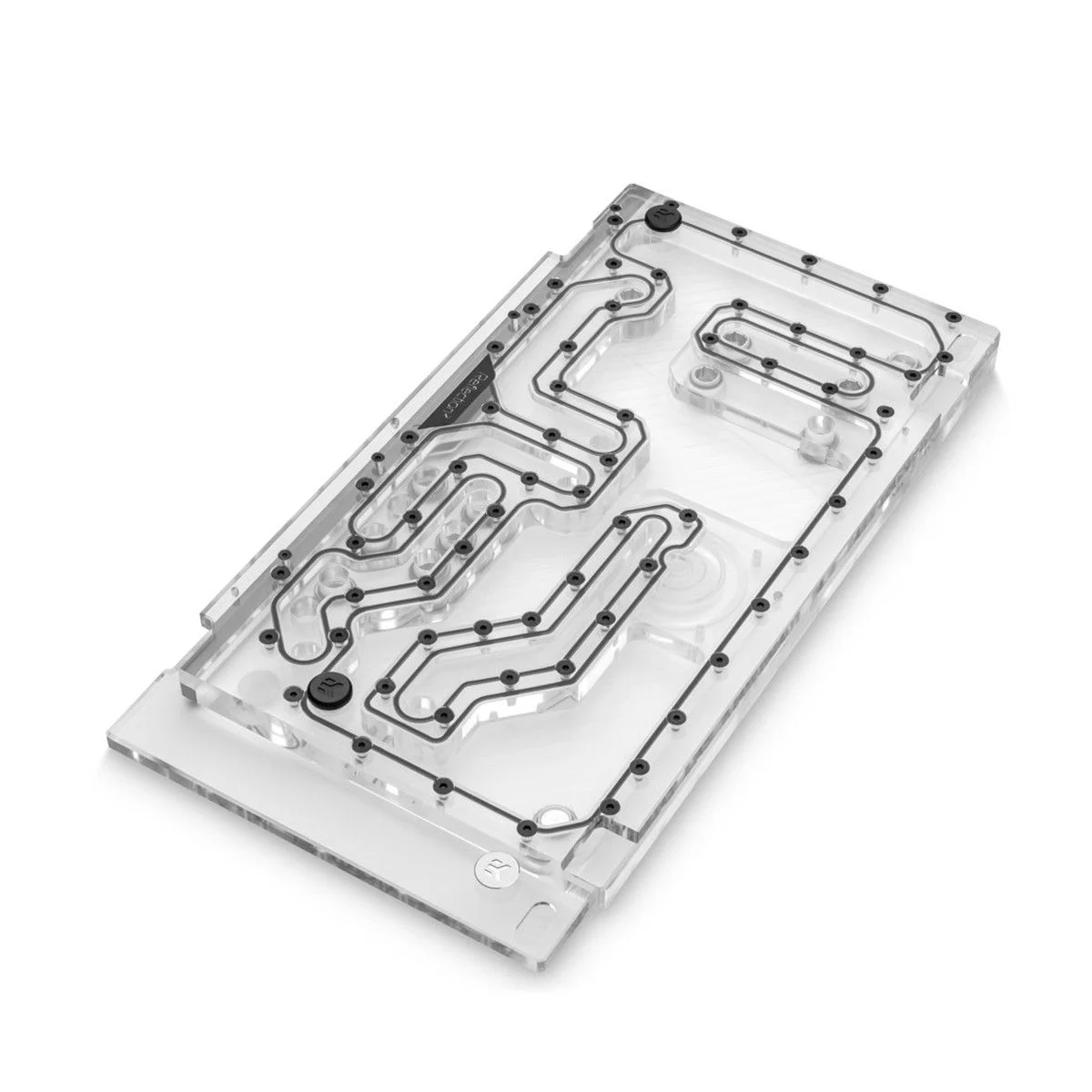

Reservoir:
– Dimensions with the attached pump (W x D x H): 207 x 71 x 405mm
– Reservoir volume: ~400ml
– D-RGB LED count: 21
– D-RGB cable length: 800mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: SATA and 4-pin PWM FAN connector

Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
