GENERAL FEATURES
Type Online Single Phase (VFI)
Phases (IN-OUT) 1-1

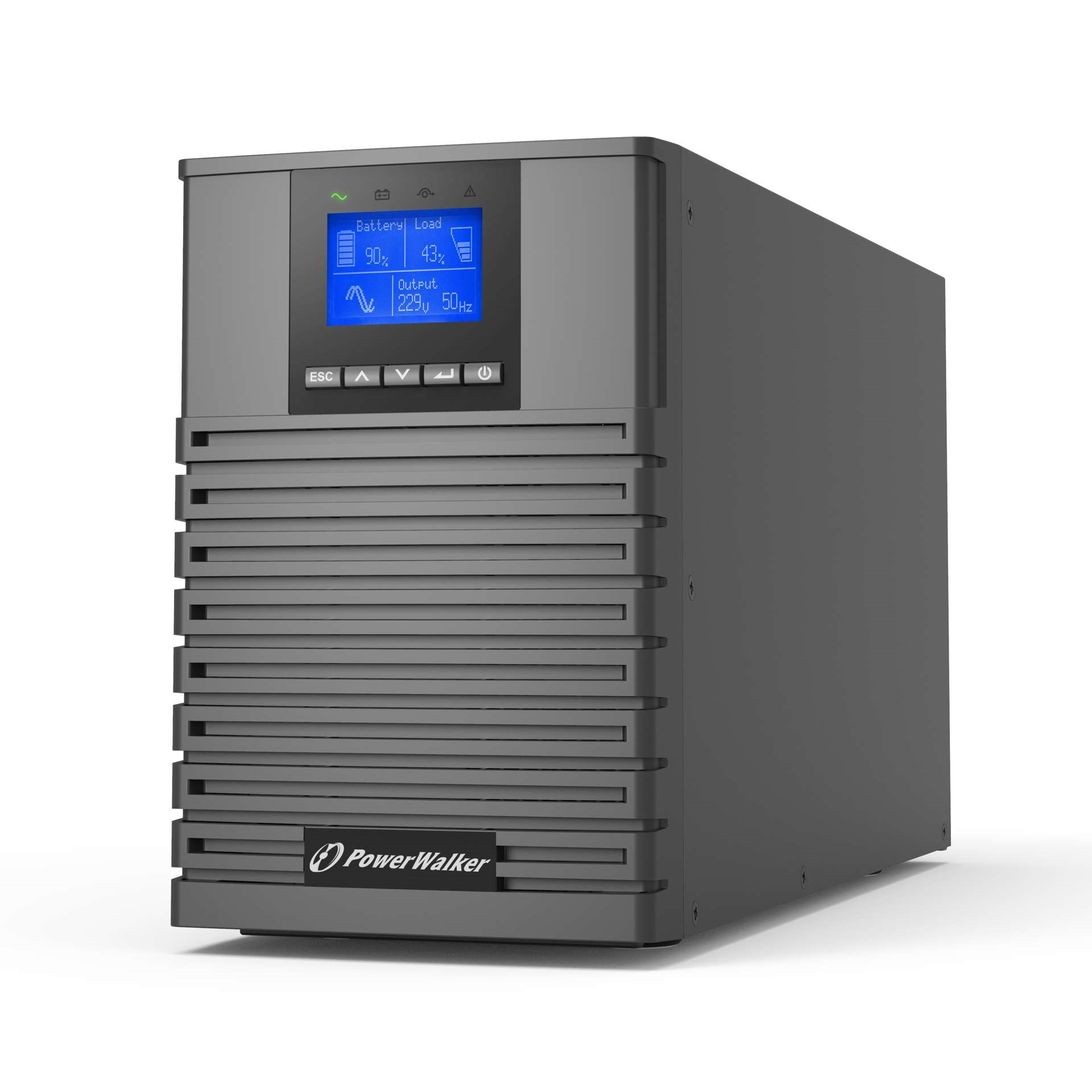

Form Factor Tower
Power Capacity 1500VA / 1500W
Output Power Factor 1
INPUT
Input Voltage Range 160-300V 100% load, 110-160V derating to 50% load linearly
Max THDi ≤5%
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 45Hz – 55Hz or 54Hz – 66Hz @ load>60%
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 200/208/220/230/240 VAC
(derating 10% @ 208V, derating 20% @ 200V)
THDv ≤1% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±1%
Frequency (Battery Mode) ±0.2Hz

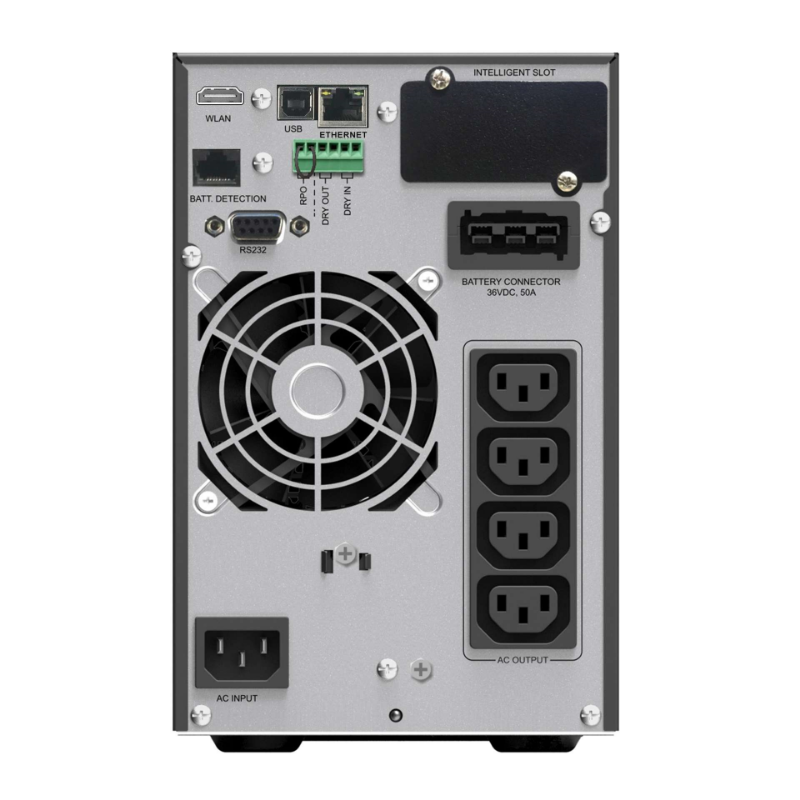

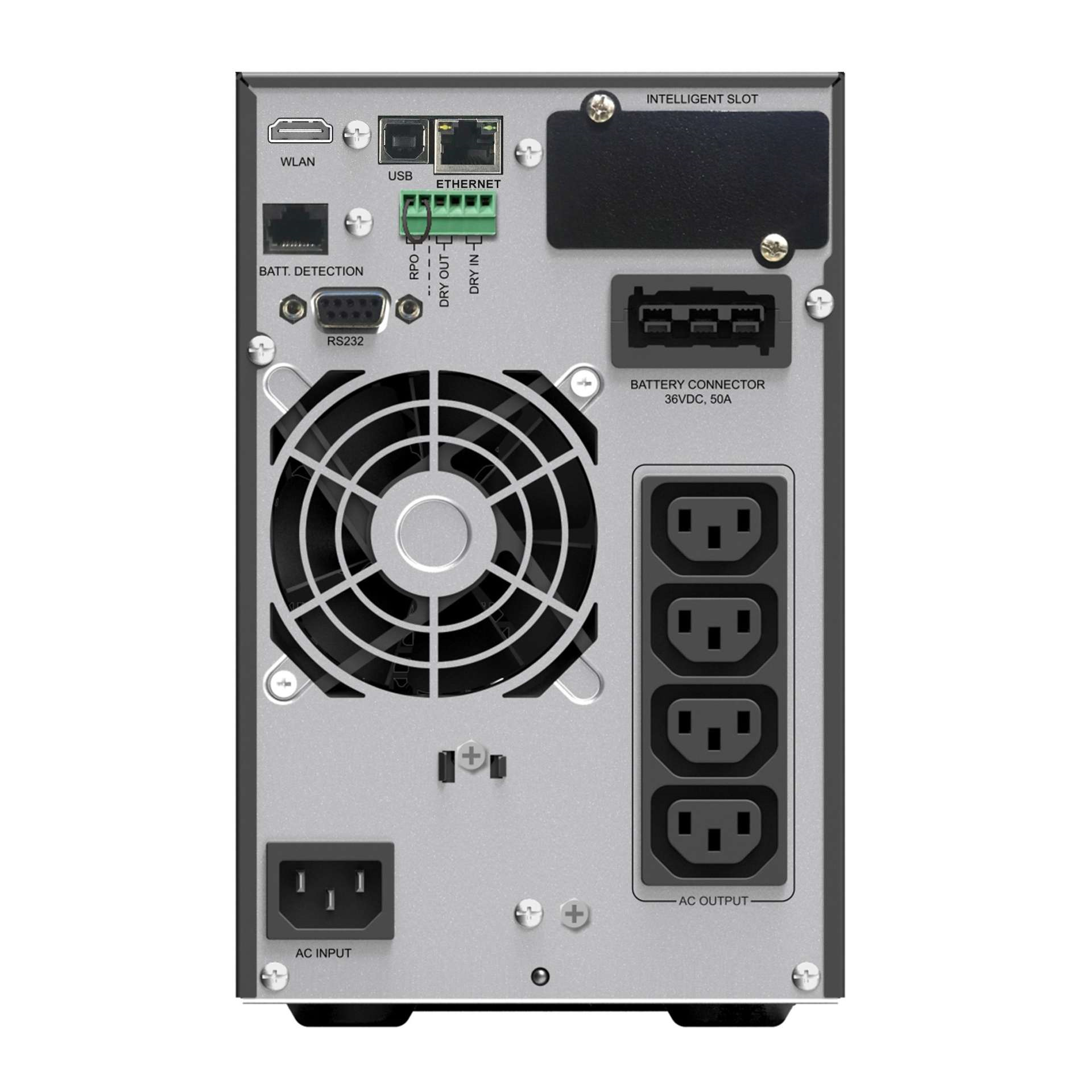

INPUT & OUTPUT CONNECTORS
Input Connector C14-UK
Output Type IEC – UK
IEC C13 4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 89.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] 10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 4ms
Load Crest Ratio 3:1
Additional Features CVCF Mode Available, OBM – Optimized Battery Management, LCD Display, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, EBM – External Battery Module – Auto Detection
IEC 62040-3 classification VFI-SS-311
BATTERIES AND AUTONOMY
Batteries 3x 12.0V/9.0Ah
DC Voltage 3x 12.0V
Recharge Time 3h to 90%
Full Load Backup Time [min] 3.5
Half Load Backup Time [min] 9.6
Charger 1.5A
External Battery Pack Yes
COMMUNICATION
Communication Dry contact, RS-232, WLAN Port – for Internet Connection, Management Card Slot, RJ-45 – for Internet Connection
Software WinPower
ENVIRONMENT
Noise Level < 45dB
Fan Logic Always on, Automatic Speed Control
Temperature 0°C – 45°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
