General features
Type Online
Power capacity 1500VA / 1500W
Output Power Factor 1.00
Input
Input Voltage Range Voltage Range Low Line Transfer
110-160VAC ± 5% depending on load level
Voltage Range Low Line Comeback
125-175VAC ± 5% depending on load level
Voltage Range High Line Transfer
300VAC ± 5%
Voltage Range High Line Comeback
290VAC ± 5VAC
Max THDi ≤ 5% @ 205-245VAC; THDu ≤ 1.6% @ input and full linear load condition
Input PF ≥ 0.99 at full load
Frequency Range 40Hz - 70Hz
Frequency (Synchronized Range) 47Hz - 53Hz or 57Hz - 63Hz
Output
Nominal Output Voltage 200/208/220/230/240 VAC
Pure Sine Wave Yes
THDv ≤2% Full Linear Load; ≤4% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,1Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support Yes
Overload Capacity Line: 2min @105%-130%; 10s @130%-200%; 0.25s @>200%; BAT: 10s @105%-130%; 0.25s @>130%
External Battery Connection Yes
Charger 1-12A [2A]
Protection Surge protection up to 7KV
Fan Logic Always on, automatic speed control
Efficiency
LINE mode full Load 89.0%
Batteries and autonomy time
Batteries 3x 12V/9Ah
DC Voltage 3 x 12V
Recharge Time 3h to 90%
Full Load Backup Time 2.96min
Half Load Backup Time 10.3min

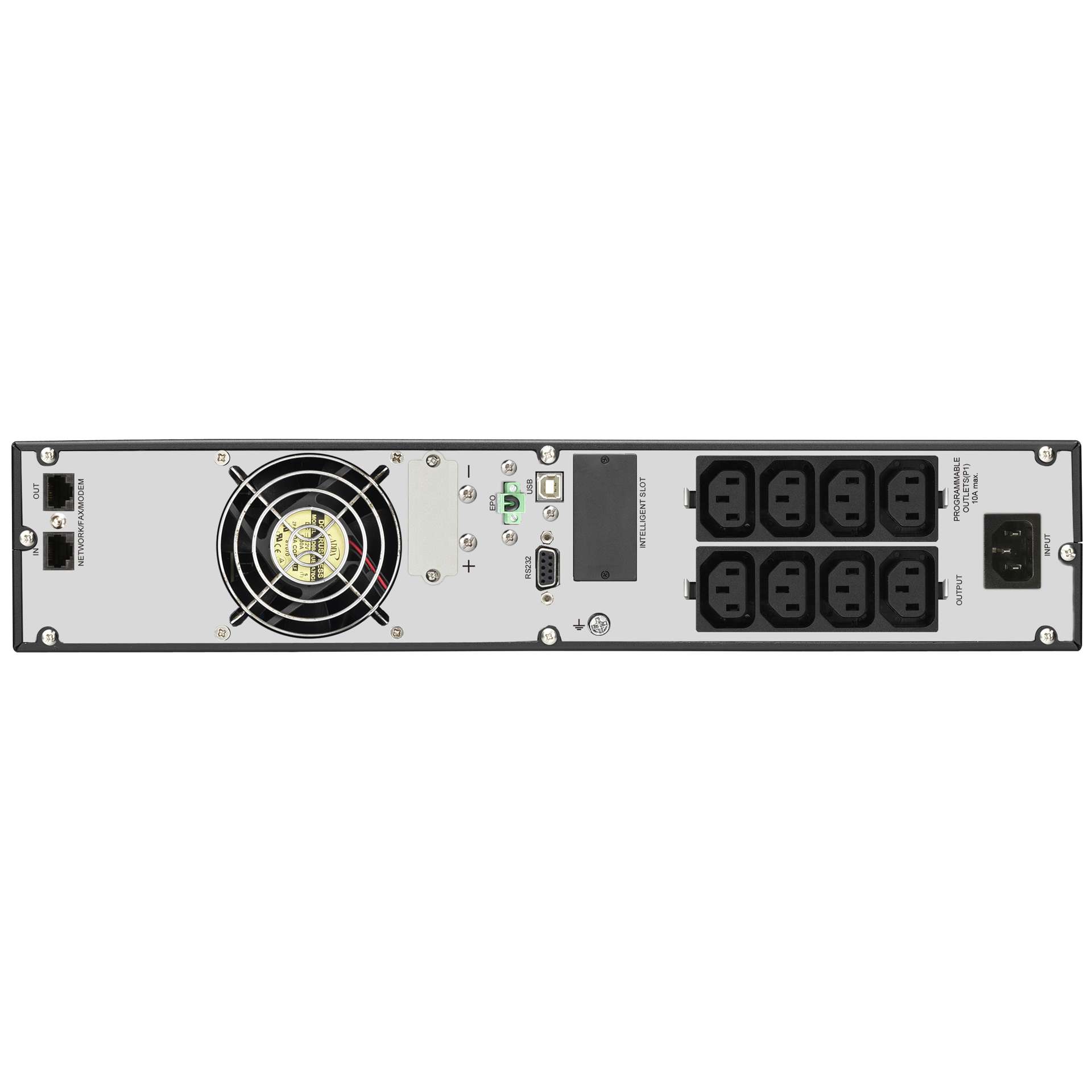

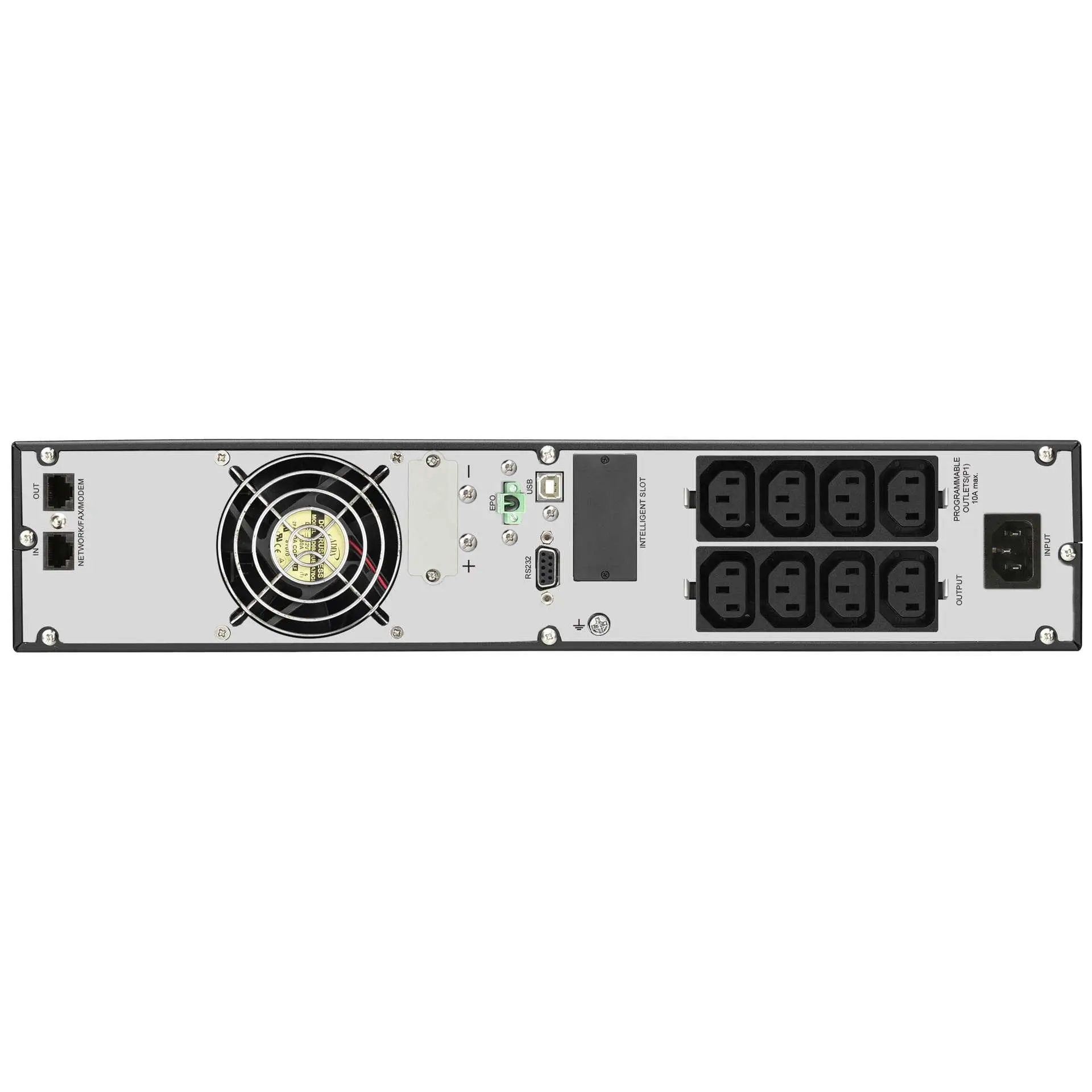

Connections and communication
IEC C13 Outlet 8
Programmable Outlets Yes
Input C14-UK
Software ViewPower
USB port Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level < 50dB
Temperature 0°C – 40°C
Humidity 20% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-111
Package Content UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable, Tower Holder, Rack Ears
Manual Languages EN/DE/PL/RU
EAN 4260074980042
Width 438 mm
Height 88 mm
Depth 410 mm
Weight 15.5 kg
Giftbox - Width 500 mm
Giftbox - Height 180 mm
Giftbox - Depth 560 mm
Giftbox - Weight 19 kg
Pcs. per box 1
