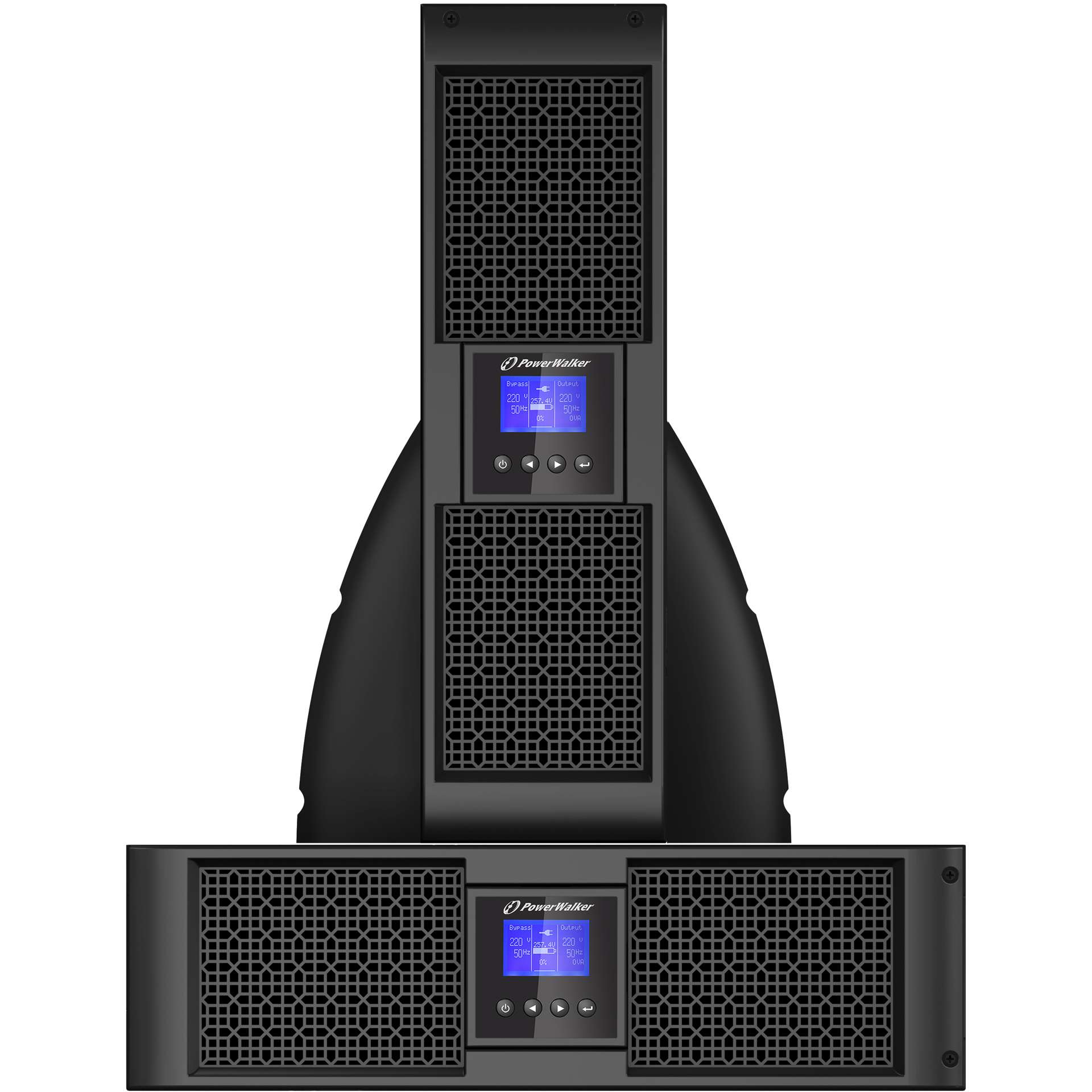

The PowerWalker VFI RT/PRT HID is the Flagship Solution of the PowerWalker Brand! This true double-conversion 3U (6KVA) or 5U (10KVA) Online UPS comes with a robust design as well as a high efficiency and reliability. The VFI PRT HID units must be hard-wired, but they feature a power distribution module with several outlets. The device is secured with a physical maintenance bypass switch and a REPO connector. They can operate in parallel for power extension or redundancy. This way one UPS is backing up the other one in case of a failure, resulting in the highest security level.
Manufacturer: Powerwalker
SKU: PUP0067
Manufacturer part number: 10120130
GTIN: 4260074974713
Availability: Out of stock
Login to view Price
GENERAL FEATURES
TypeOnline Single Phase (VFI)
Phases (IN-OUT)1-1
Form FactorRack, Tower
Rack Units [U]3U
Power Capacity6000VA / 5400W
Output Power Factor0.90
INPUT
Input Voltage Range120-276 VAC Depends on Load Level
Max THDi≤5%
Frequency Range45Hz – 55Hz or 54Hz – 66Hz
Frequency (Synchronized Range)45Hz – 55Hz or 54Hz – 66Hz
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage208/220/230/240 VAC
THDv≤2% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)±1%
Frequency (Battery Mode)±0.1Hz

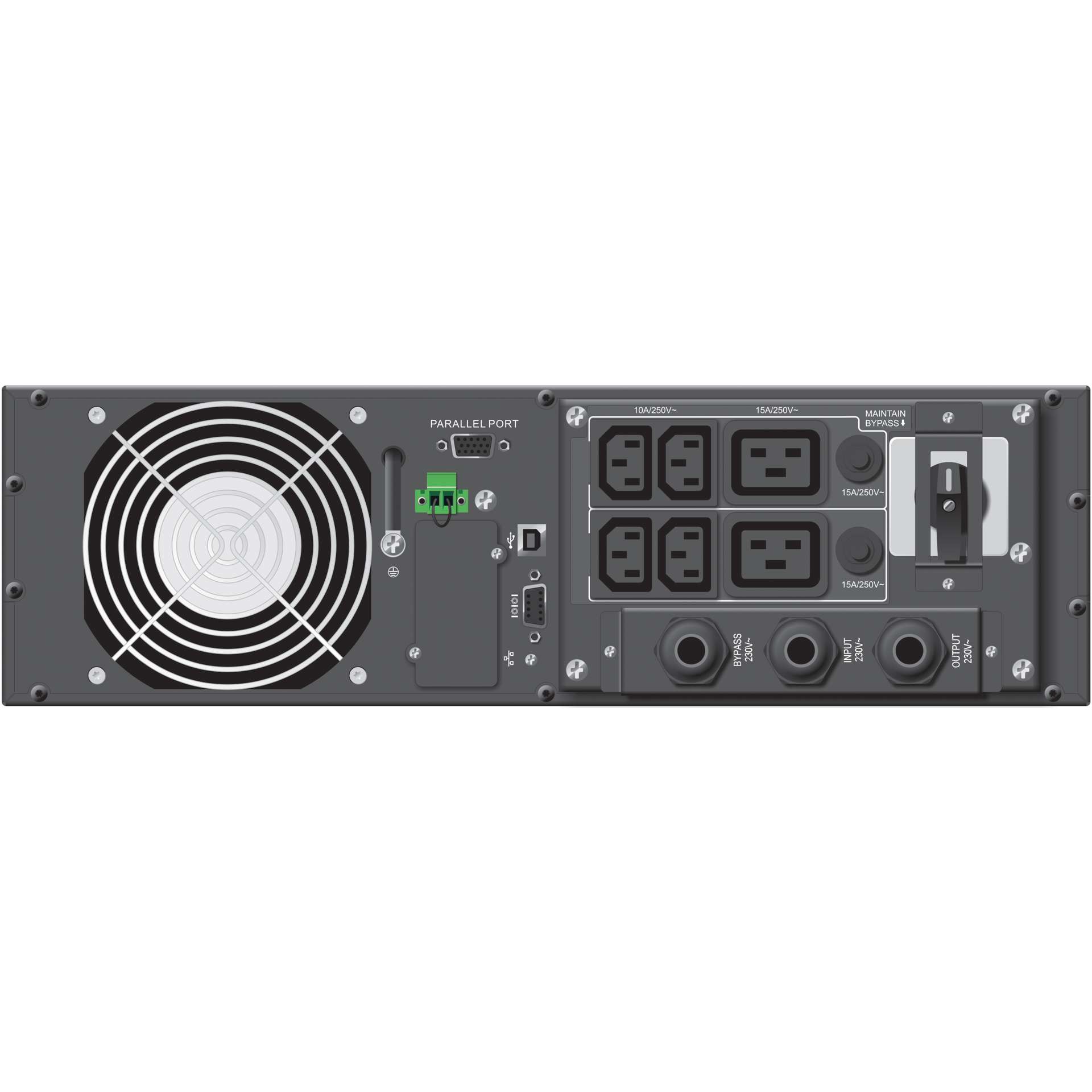

INPUT & OUTPUT CONNECTORS
Input ConnectorTerminal
Output TypeTerminal
IEC C134
IEC C192
Terminal OutputYes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)93.3
Battery Mode Efficiency [%] (Full Load)89.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]1ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]0ms
Load Crest Ratio3:1
BypassManual – Bypass
Additional FeaturesEarthing System Available, ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, Hot-Swappable Batteries, OBM – Optimized Battery Management, Parallel Connectivity, REPO – Remote Emergent Power-Off, Fixed Dry Contacts Included (RS-232), Dual Input Option, LCD Display, Battery Pack Available, Generator Compatible, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Cable Retention
IEC 62040-3 classificationVFI-SS-111
BATTERIES AND AUTONOMY
Batteries15x 12.0V/5.0Ah
DC Voltage15x 12.0V
Recharge Time3h to 90%
Full Load Backup Time [min]3.4
Half Load Backup Time [min]9.8
Charger1A
External Battery PackYes
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software, RS-232, Management Card Slot
SoftwareWinPower
Parallel Operation [Units]2
ENVIRONMENT
Noise Level< 45dB
Fan LogicAlways on, Automatic Speed Control
Temperature0°C – 40°C
Humidity0% – 95% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentRack Ears, EPO Plug, Manual, Parallel Communication Cable, 2x IEC Cable, USB Cable, Tower Holder, UPS
Manual LanguagesDE, PL, EN
EAN4260074974713
Product Dimensions (DxWxH) [mm]698 x 438 x 129 mm
Product Weight [kg]46.0
Package Dimensions (DxWxH) [mm]578 x 955 x 305 mm
Package Weight [kg]50.0
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
UPS FeaturesRackmount, LCD, Pure Sinewave
UPS TypeOnline
Output ConnectionsC13
UPS PowerUp to 6000 VA

PowerWalker VFI 6000 PRT HID Art No. 10120130
