Type Line-Interactive (VI)
Form Factor Tower
Power Capacity 1000VA / 600W
Output Power Factor 0.60
INPUT
Input Voltage Range 162-290 VAC
Frequency Range 50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform Simulated Sine Wave
Nominal Output Voltage 230 VAC
Voltage Regulation (Battery Mode) ±10%

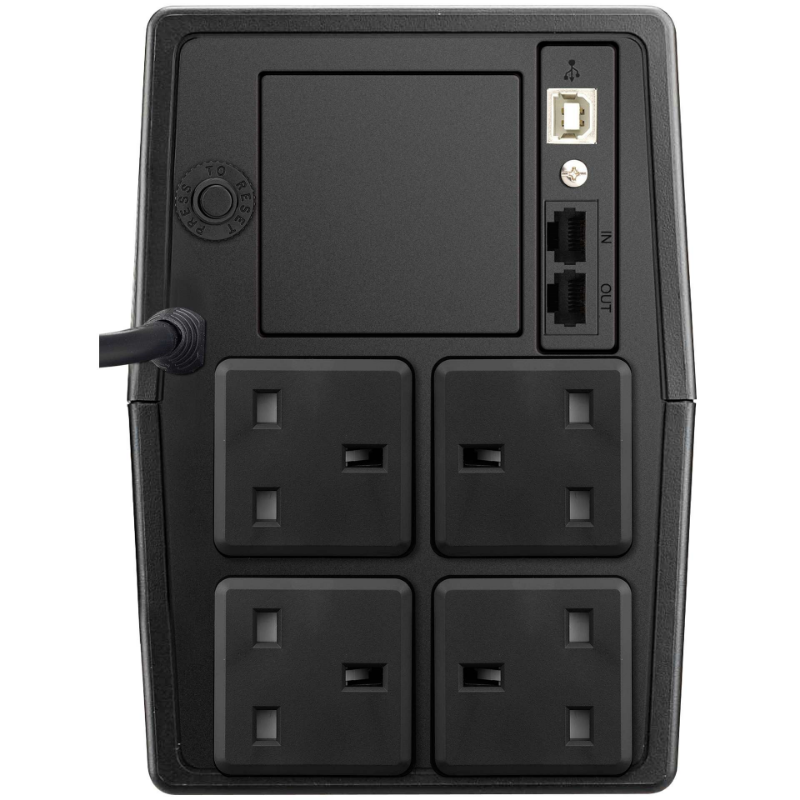

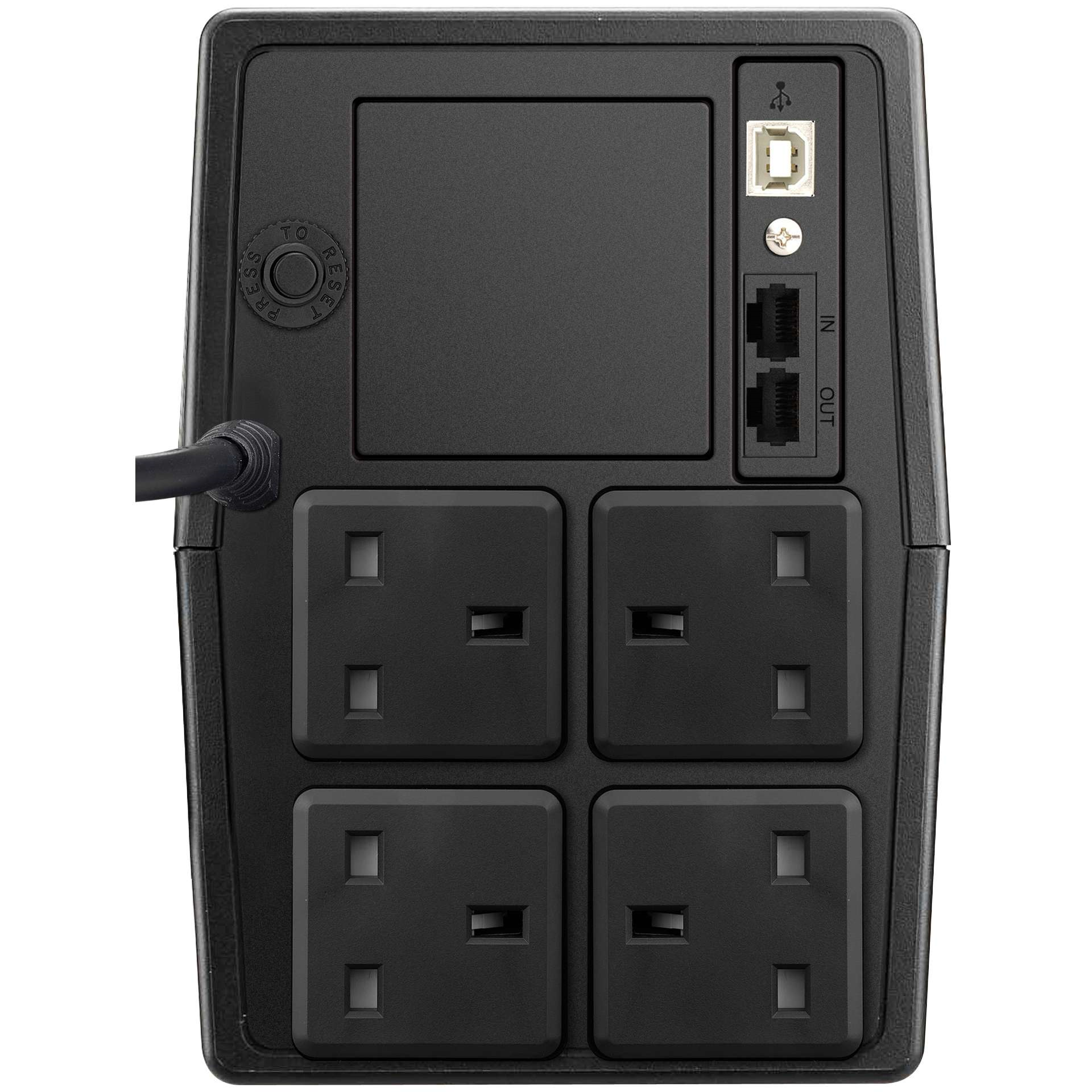

INPUT & OUTPUT CONNECTORS
Input Connector UK
Output Type Type G
Type G (BS 1363) 4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 96.5
Battery Mode Efficiency [%] (Full Load) 68.3
Transfer Time (AC / Line Mode to Battery Mode) [ms] 2-6ms
Data Line Protection RJ-11 Port, RJ-45 Port (100mbit)
Additional Features Circuit Breaker Reset, HID – Human Interface Device
BATTERIES AND AUTONOMY
Batteries 2x 12.0V/7.0Ah
DC Voltage 2x 12.0V
Recharge Time 4-6h to 90%
Full Load Backup Time [min] 0.5
Half Load Backup Time [min] 5.0
Charger 1A
COMMUNICATION
Communication USB Type B – for Monitoring Software, RJ-45 – for Communication
Software ViewPower
ENVIRONMENT
Noise Level < 40dB
Fan Logic No fan
Temperature 0°C – 40°C
Humidity 0% – 90% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content Manual, Product
Manual Languages DE, SR, SE, FI, TR, BY, IT, NO, RU, UA, PL, HR, FR, HU, ES, PT, CZ, KZ, EN, BG
EAN 4260074978551
Product Dimensions (DxWxH) [mm] 320 x 130 x 182 mm
Product Weight [kg] 8.2
Package Dimensions (DxWxH) [mm] 285 x 395 x 200 mm
