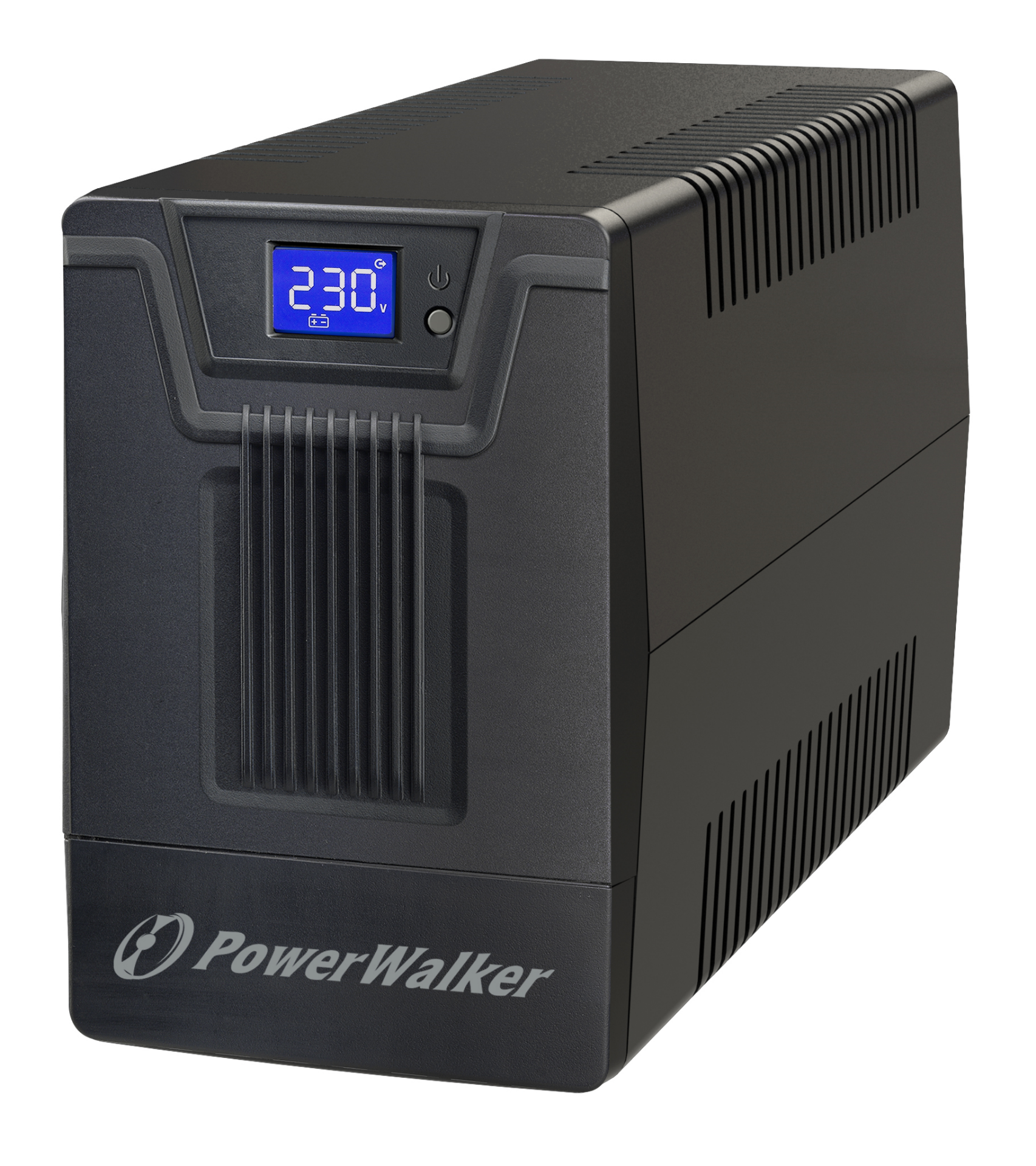

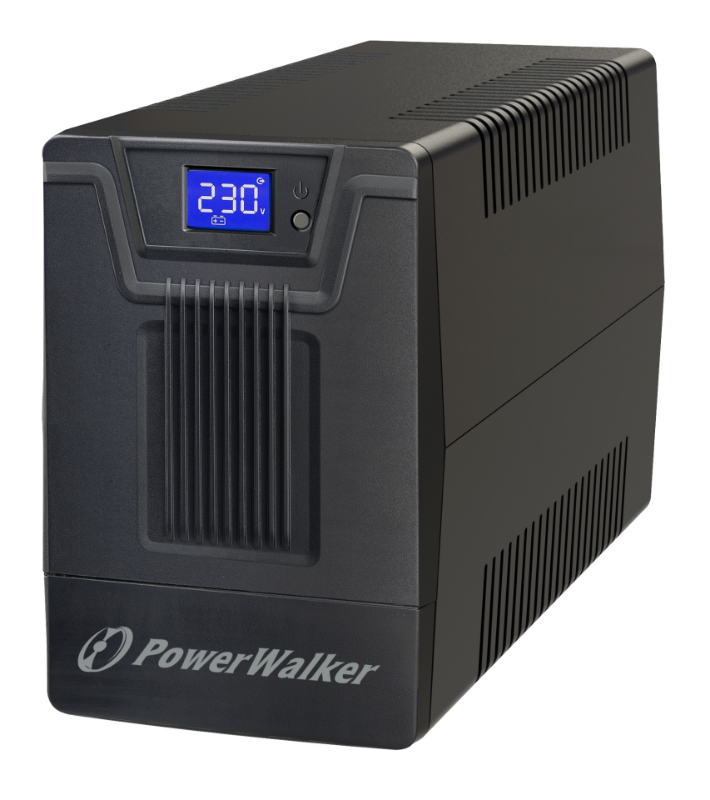

The PowerWalker VI SCL (Line-Interactive) series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID
Manufacturer: Powerwalker
SKU: PUP0109
Availability: 9 in stock
€106.77 excl tax
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity1000VA / 600W
Output Power Factor0.60
INPUT
Input Voltage Range162-290 VAC
Frequency Range50Hz or 60Hz (self-adaptive)
OUTPUT
WaveformSimulated Sine Wave
Nominal Output Voltage230 VAC
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±1Hz

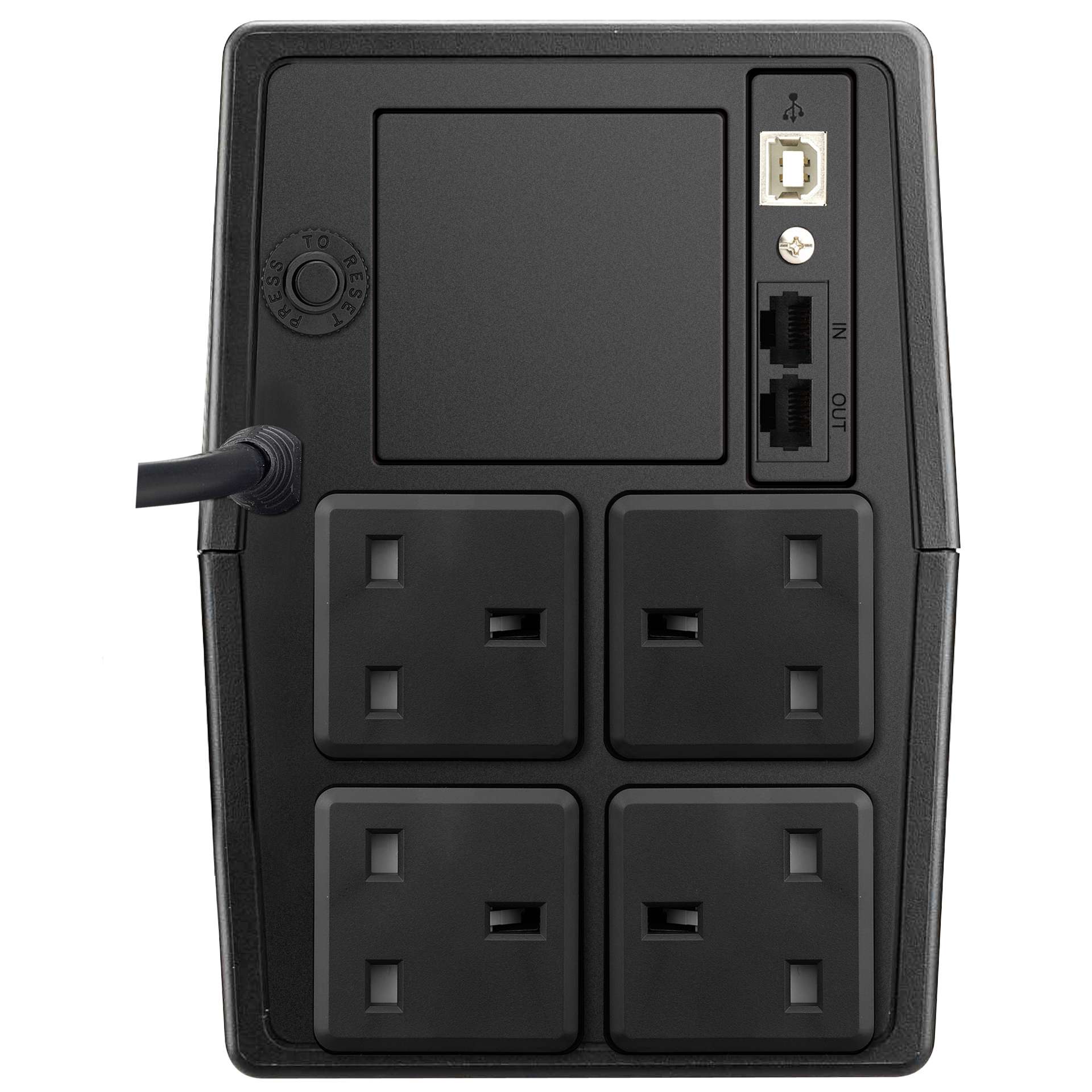

INPUT & OUTPUT CONNECTORS
Input ConnectorUK
Output TypeType G
Type G (BS 1363)4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)94.0
Battery Mode Efficiency [%] (Full Load)60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]2-6ms
Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
Additional FeaturesCircuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classificationVI-SY-333
BATTERIES AND AUTONOMY
Batteries2x 12.0V/7.0Ah
DC Voltage2x 12.0V
Recharge Time4-6h to 90%
Full Load Backup Time [min]0.5
Half Load Backup Time [min]5.0
Charger1A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software
SoftwareViewPower
ENVIRONMENT
Noise Level< 30dB
Fan Logic

No Fan

Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentManual, UPS
Manual LanguagesDE, IT, RU, PL, FR, ES, PT, EN
EAN4260074982275
Product Dimensions (DxWxH) [mm]320 x 130 x 182 mm
Product Weight [kg]8.2
Package Dimensions (DxWxH) [mm]390 x 192 x 275 mm
Package Weight [kg]9.0
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
UPS TypeLine Interactive
Output ConnectionsUK plug
UPS PowerUp to 1000 VA
UPS FeaturesTower, LCD
