General features
Type Line-Interactive
Power capacity 1200VA / 600W
Output Power Factor 0.50
Input
Input Voltage Range 170-280 VAC ±7%
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 230 VAC
Voltage Regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±1Hz
Technical details
Transfer Time [AC to Battery] 4-8ms
Overload Capacity N/A
Charger 1.2A
Protection Discharge prevention; Deep discharger; Overcharge; Overload
Fan Logic No fan

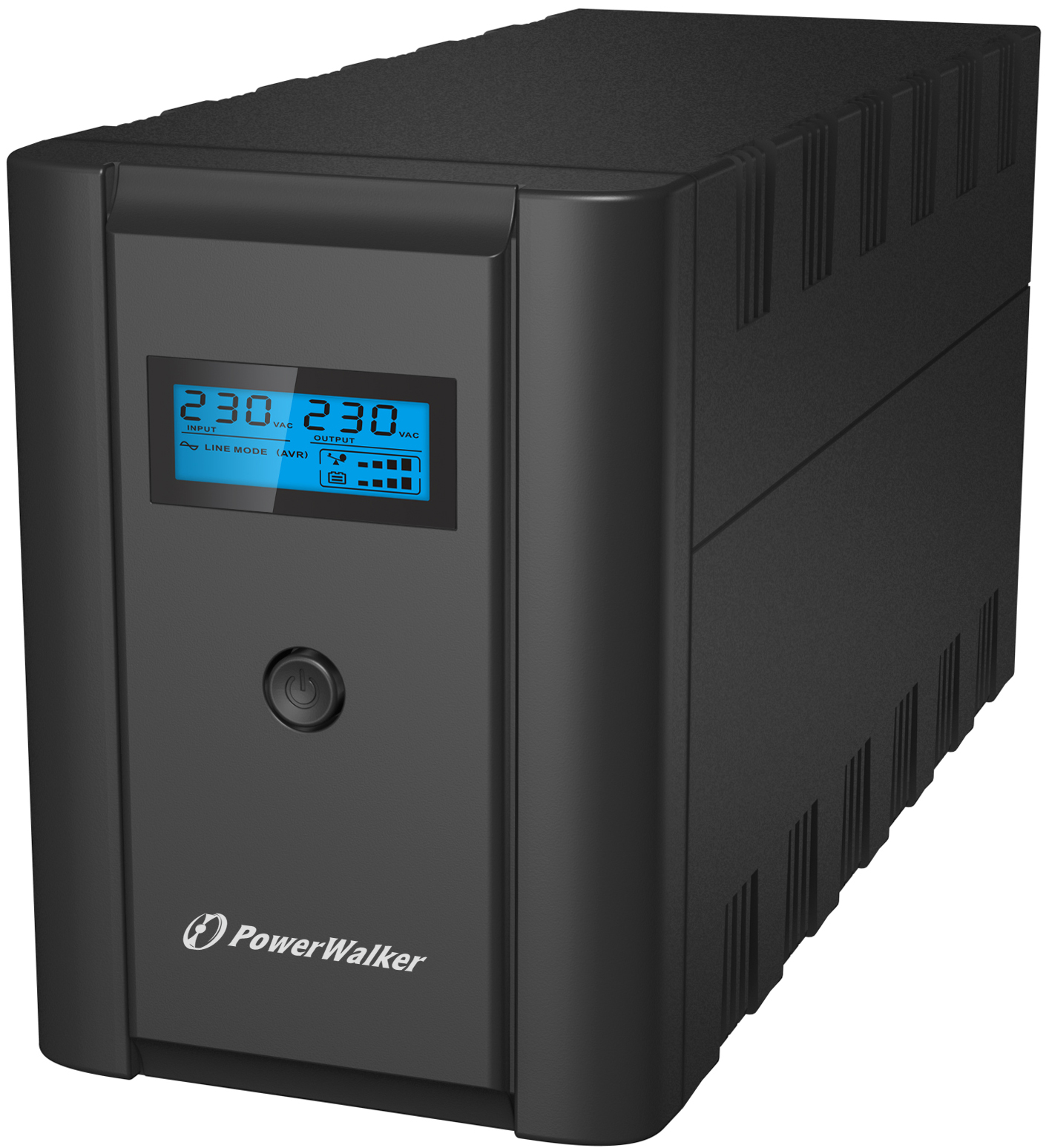

LCD Indicators AVR mode, Battery mode, Load level, Battery capacity, Input voltage, Output voltage, Overload alarm, Fault alarm, and Low battery alarm
Efficiency
LINE mode full Load 95.0%
Batteries and autonomy time
Batteries 2x 12V/7Ah
DC Voltage 2 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 1.3min
Half Load Backup Time 11min

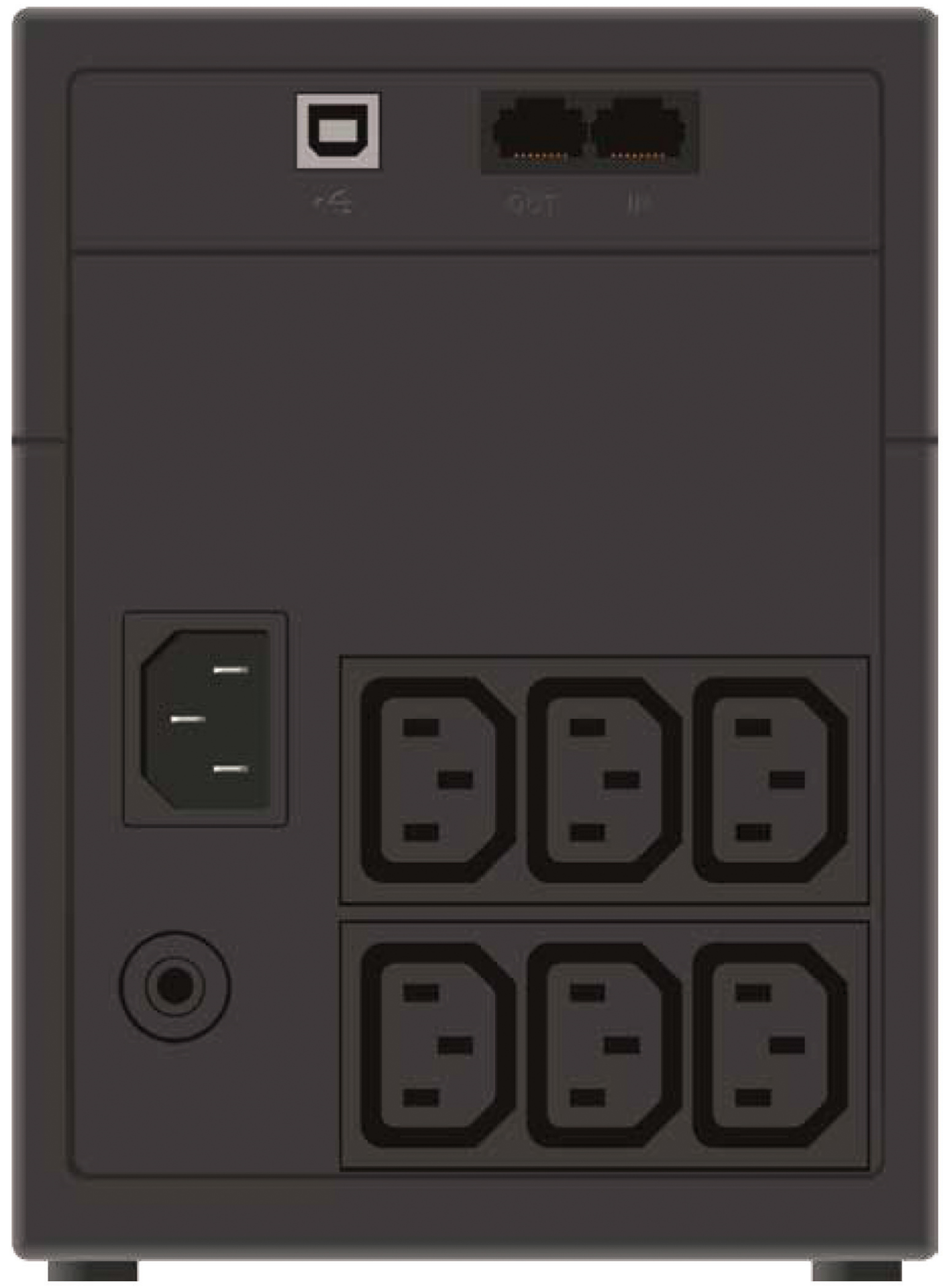

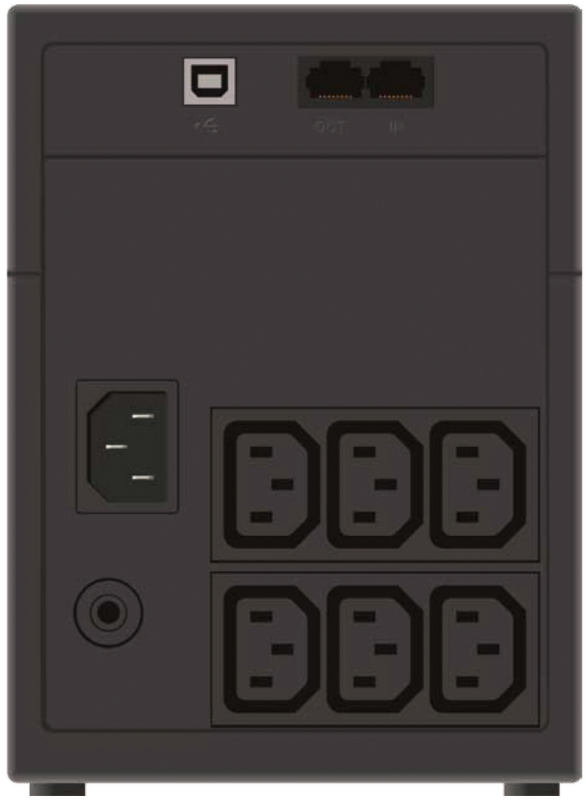

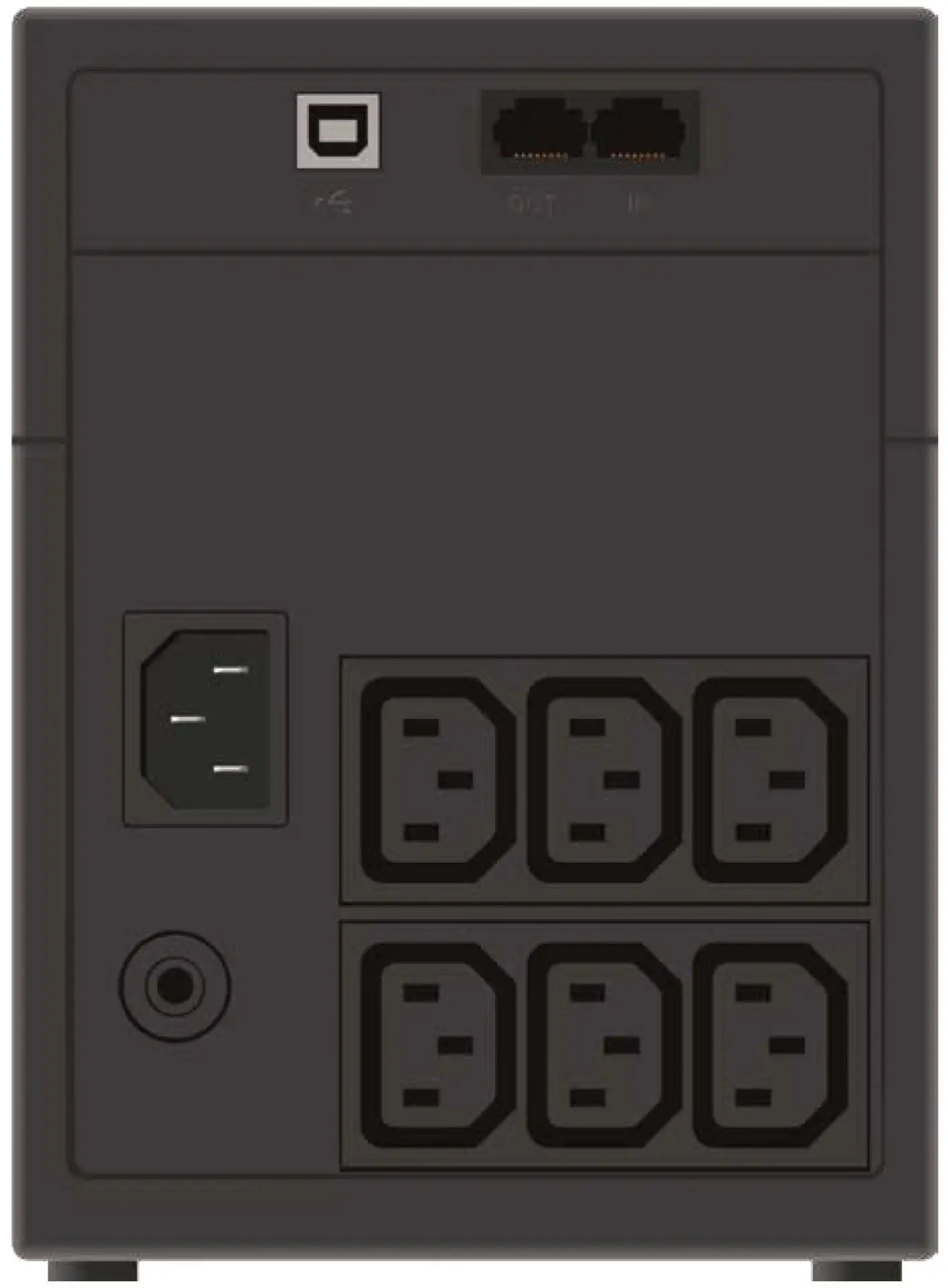

Connections and communication
IEC C13 Outlet 6
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level No Fan
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package Content UPS, Manual, USB Cable, Input Power Cable, IEC Cable
Manual Languages EN/DE/FR/PL/SE/FI/DK/NO
EAN 4260074976694
Width 139 mm
Height 195 mm
Depth 364 mm
Weight 8.6 kg
Giftbox - Width 230 mm
Giftbox - Height 292 mm
Giftbox - Depth 452 mm
Giftbox - Weight 8.9 kg
Pcs. per box 1
