General features
Type Line-Interactive
Power capacity 2000VA / 1800W
Output Power Factor 0.90
Input
Input Voltage Range Acceptable Voltage Range
0-300VAC
Line Low Transfer (Wide Mode)
154/161/168VAC ± 4%
Line Low Transfer
176/184/192VAC ± 4%
Line Low Comeback
186/194/202VAC ± 4%
Line High Transfer
264/276/288VAC ± 4%
Line High Comeback
254/266/278VAC ± 4%
Frequency Range 45Hz - 65Hz (self-adaptive to 50/60Hz); 40Hz - 65Hz for generator mode
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 220/230/240 VAC
Pure Sine Wave Yes
Voltage Regulation (Bat. Mod.) ±5%
Frequency (Battery Mode) ±0,1Hz
Technical details
Surge protection 430/250 Joules (LV/HV)
Transfer Time [AC to Battery] 2-6ms typical; 10ms maximal; 13ms for generator mode
Generator support Yes
Overload Capacity Line: 3min @100%-120%; 0.2s @140%-160%; BAT: 30s @100%-115%; 0.1s @115%-130%
External Battery Connection Yes
Charger 1.5A
Fan Logic Fan Off:
Line/Standby Mode (no AVR) with full battery in float mode with load below 80%: Fan Off
Line/Standby Mode (no AVR) with load above 80%: Half Speed
Line/Standby Mode (no AVR) charging batteries: Half Speed
Battery Mode with load above 50%: Full Speed
Battery Mode with load below 40%: Half Speed
Other Mode with temperature above 45degC: Full Speed
Other Mode with temper
LCD Indicators UPS status, Load level, Battery level, Input/Output voltage, AC mode, battery mode, Bypass mode, fault conditions
Display colour: Blue, red, red flashing (depends on UPS status)
Efficiency
LINE mode full Load 97.8%
BATTERY mode full Load 87.5%
Energy Star compliance Yes
Batteries and autonomy time
Batteries 6x 12V/7Ah
DC Voltage 6 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 4min
Half Load Backup Time 10min

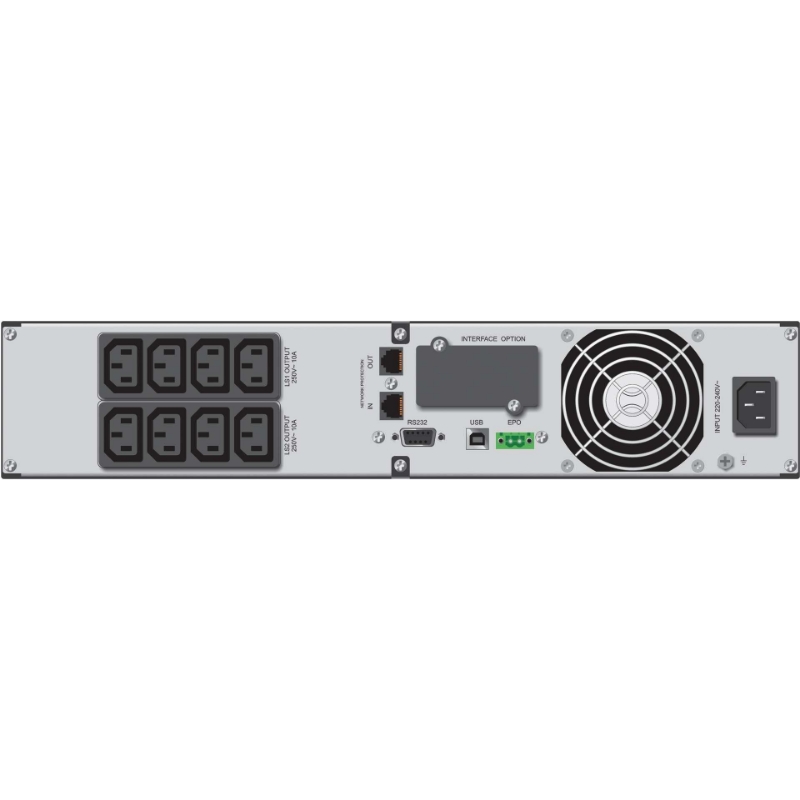

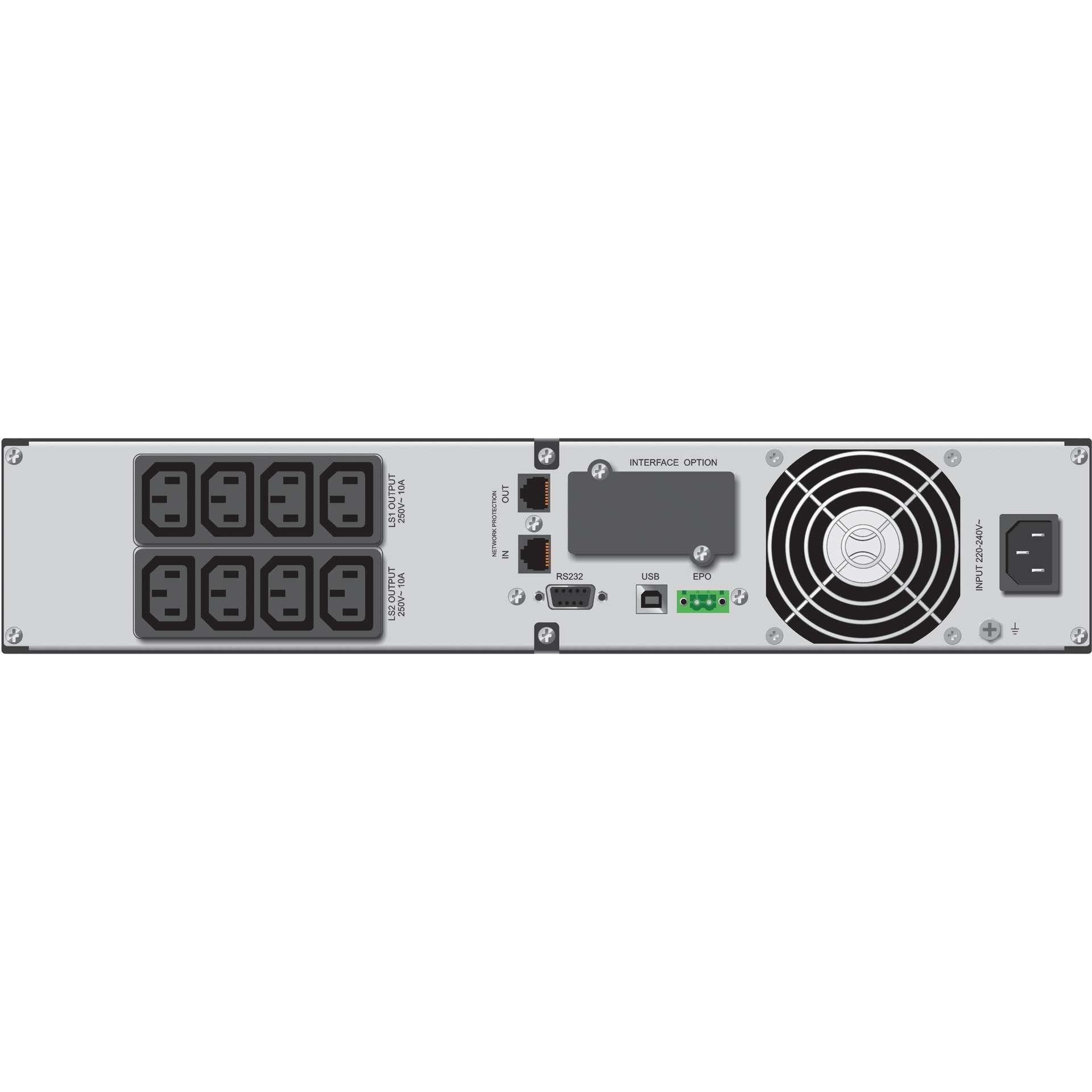

Connections and communication
IEC C13 Outlet 8
Programmable Outlets Yes
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
Dry Contacts Yes
EPO Port Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level < 45dB
Temperature 0°C – 40°C
Humidity 20% - 80% RH (non-condensing)
Logistics
IEC 62040-3 classification VI-SS-311
Package Content UPS, Manual, USB Cable, Input Power Cable, RS-232 Cable, 2x IEC Cable, Tower holder, Rack Ears, EPO Plug
Manual Languages EN/DE/RU/PL/CZ/FR/HU
EAN 4260074974768
Width 438 mm
Height 86.5 mm
Depth 608 mm
Weight 28.06 kg
Giftbox - Width 790 mm
Giftbox - Height 236 mm
Giftbox - Depth 590 mm
Giftbox - Weight 31.9 kg
Pcs. per box 1
