General functions
Type Line-Interactive
Energy capacity 2000VA / 1200W
Outgoing energy factor 0.60
Input
Incoming voltage range 162-290 VAC
Frequency range 50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal output voltage 230 VAC
Voltage regulation ±10%
Frequency (Battery Mode) ±1Hz
Technical details
Transfer Time [AC to Battery] 2-6ms
Overload Capacity N/A
Charger 1A
Protection Overload, discharge and overcharge protection
Efficiency
LINE mode full Load 94.0%
Batteries and autonomous time
Batteries 2x 12V / 9Ah
DC Voltage 2 x 12V
Recharge Time 4-6h to 90%
Full Load Backup Time 0.6min
Half Load Backup Time 3.7min
Connections and communication

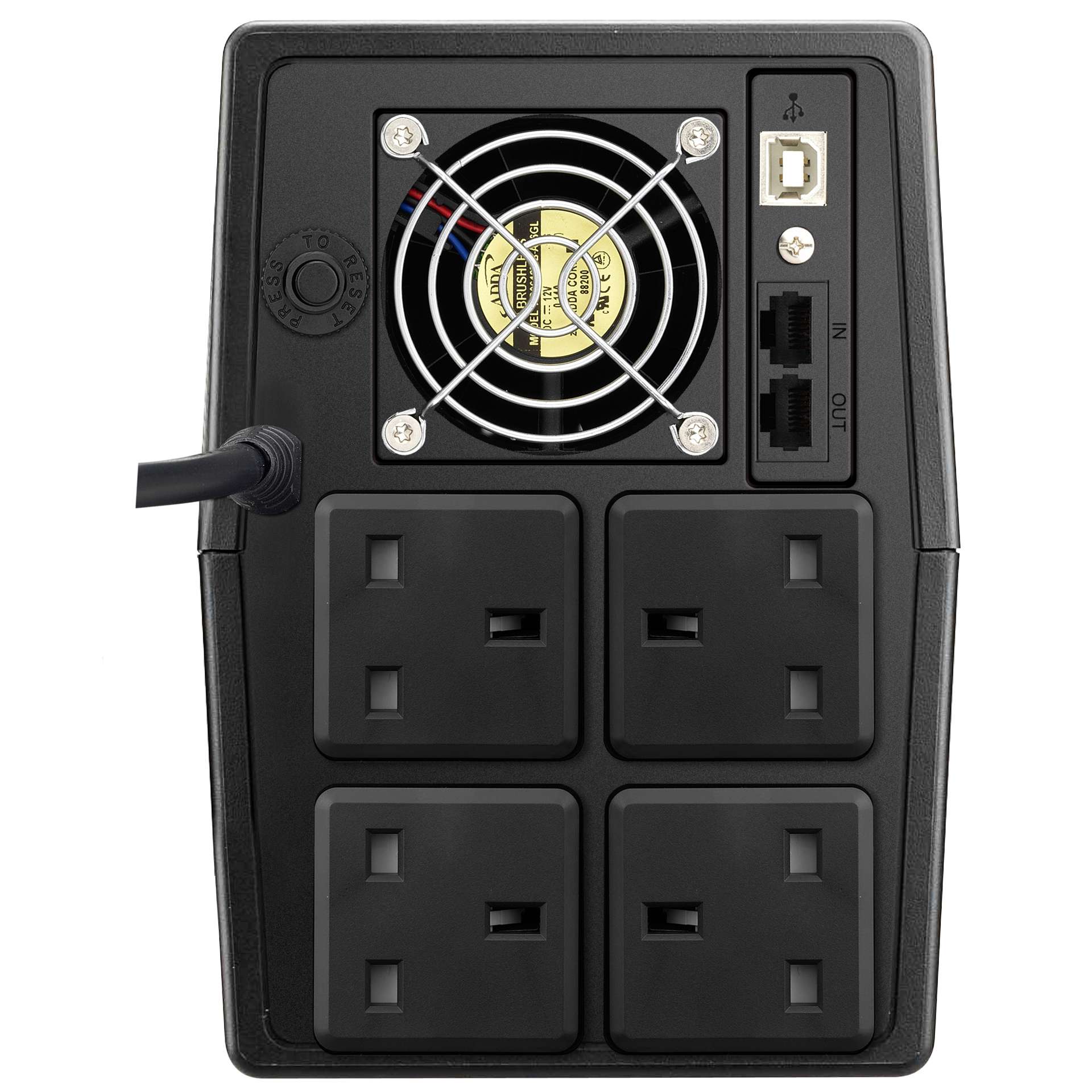

BS-1363 (Type G) UK Outlet 4
Input UK
Program ViewPower
USB port And
HID-support And
RJ-45/RJ-11 protection And
Environment
Noise level < 40dB
temperature 0°C – 40°C
Moisture 0% - 90% RH (non-condensing)
logistics
Package Content UPS, Manual
Manual Languages EN / DE / FR / IT / ES / PT / PL / RU
EAN 4260074982299
Width 130 mm
Weight 182 mm
Depth 320 mm
Weight 11 kg
Giftbox - Width 192 mm
Giftbox - Weight 275 mm
Giftbox - Deep 390 mm
