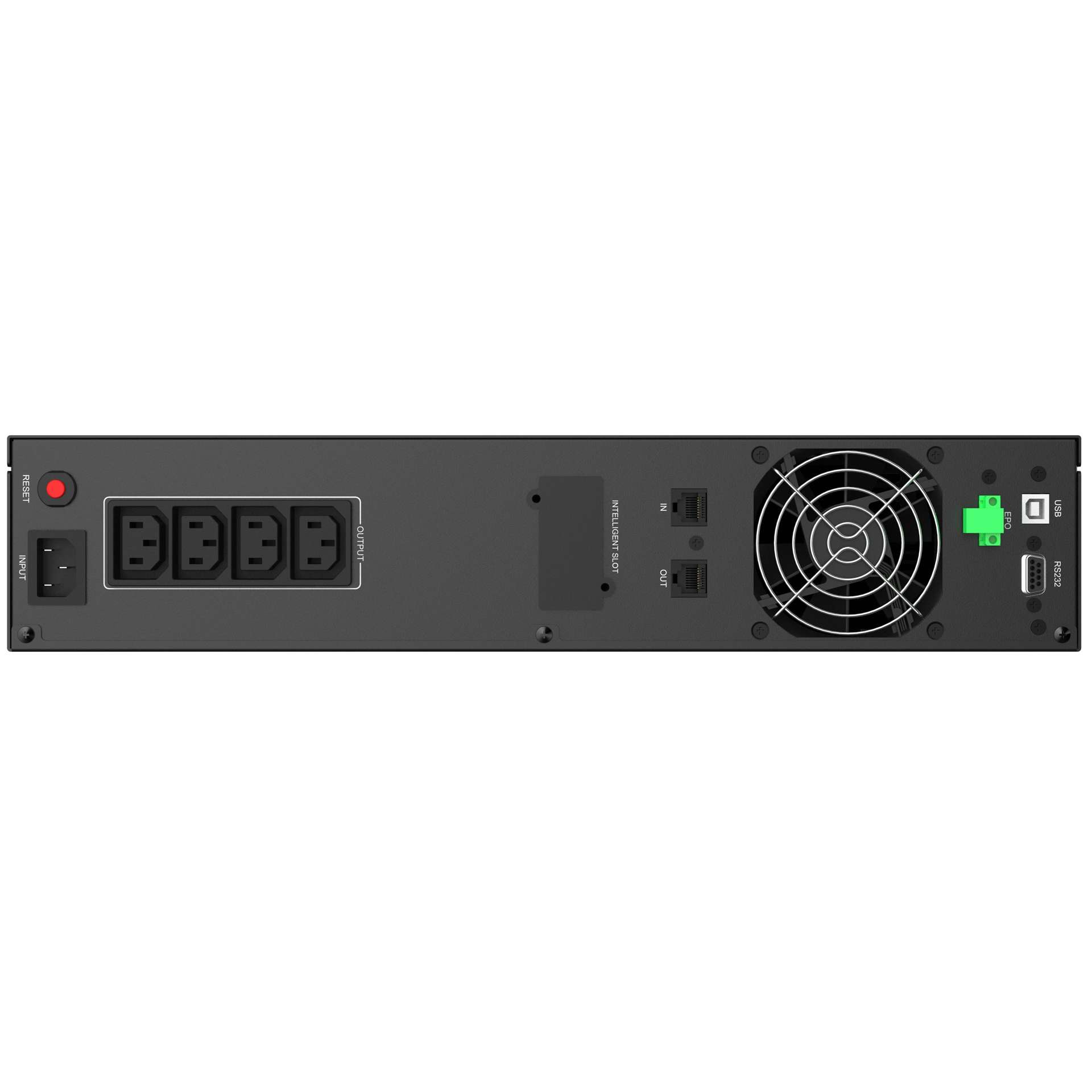

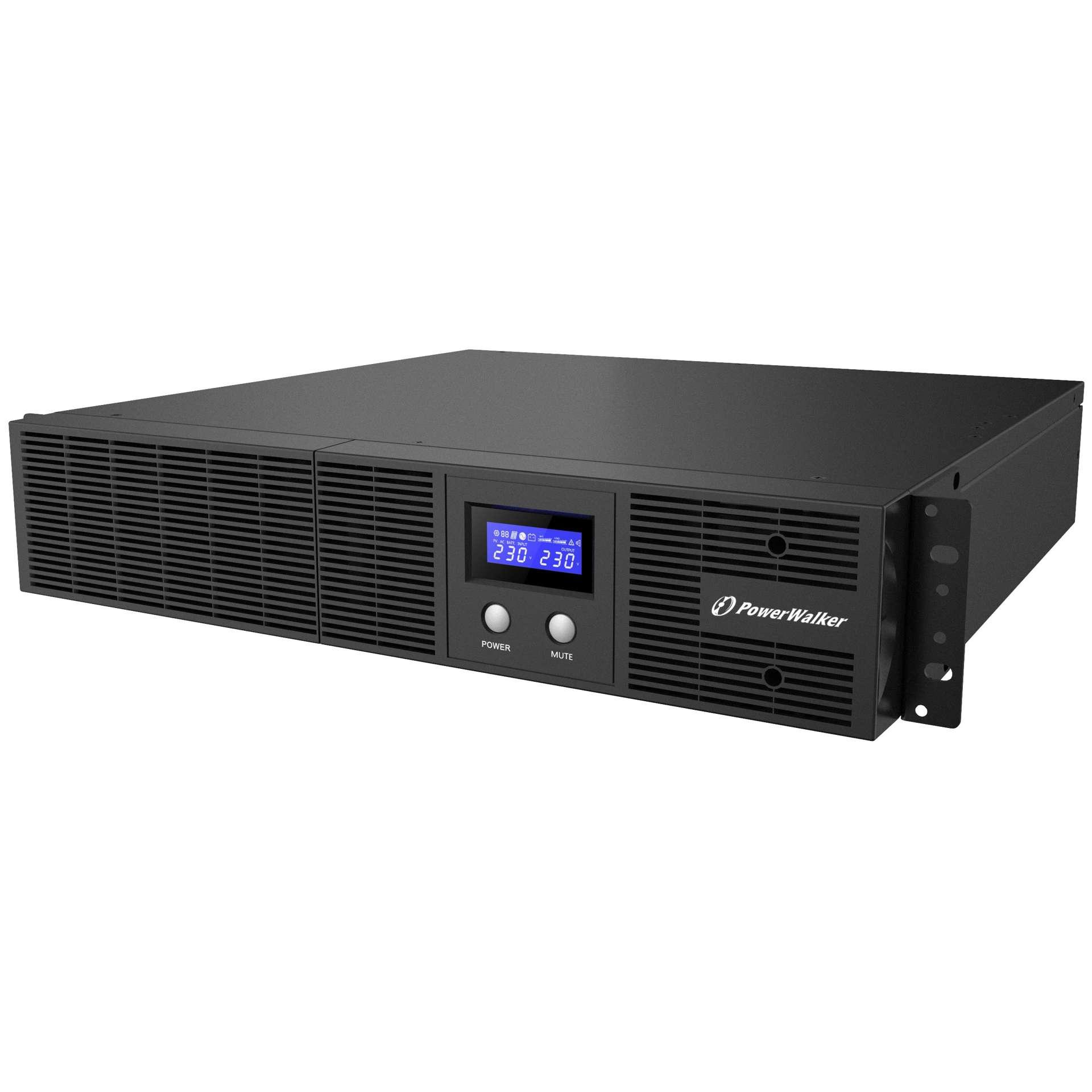

The PowerWalker VI RLE is a compact 2U Line-Interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software. Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD provides all the necessary information and will auto-dimm after a few seconds. These features make the UPS series an attractive solution for home use as well.
Manufacturer: Powerwalker
SKU: PUP0105
Availability: Out of stock
€292.35 excl tax
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity850VA / 480W
Output Power Factor0.56
INPUT
Input Voltage Range170-280 VAC ±7%
Frequency Range50Hz or 60Hz (self-adaptive)
OUTPUT
WaveformSimulated Sine Wave
Nominal Output Voltage230 VAC
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±1Hz
INPUT & OUTPUT CONNECTORS
Input ConnectorC14-UK
Output TypeIEC – UK
IEC C134
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)95.0
Battery Mode Efficiency [%] (Full Load)60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]4-8ms
Data Line ProtectionRJ-11 Port
Additional FeaturesLCD Display, Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classificationVI-SY-333
BATTERIES AND AUTONOMY
Batteries1x 12.0V/9.0Ah
DC Voltage1x 12.0V
Recharge Time4h to 90%
Full Load Backup Time [min]0.1
Half Load Backup Time [min]6.0
Charger1.2A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software
SoftwareWinPower
ENVIRONMENT
Noise Level< 30dB
Fan LogicNo fan
Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentManual, USB Cable, IEC Cable, UPS
Manual LanguagesDE, SE, DK, FI, NO, PL, FR, EN, ES, IT, UA
EAN4260074976687
Product Dimensions (DxWxH) [mm]290 x 100 x 143 mm
Product Weight [kg]5.2
Package Dimensions (DxWxH) [mm]345 x 139 x 226 mm
Package Weight [kg]5.5
Outer Carton Dimensions (DxWxH)598 x 380 x 250 mm
Outer Carton Weight [kg]23.1
Pcs. per Outer Carton4
Products specifications
Attribute nameAttribute value
UPS FeaturesRackmount, LCD, Pure Sinewave
UPS TypeLine Interactive
Output ConnectionsC13
UPS PowerUp to 3000 VA

PowerWalker VI 2200 RLE UK Art No. 10122138

€292.35 excl tax
