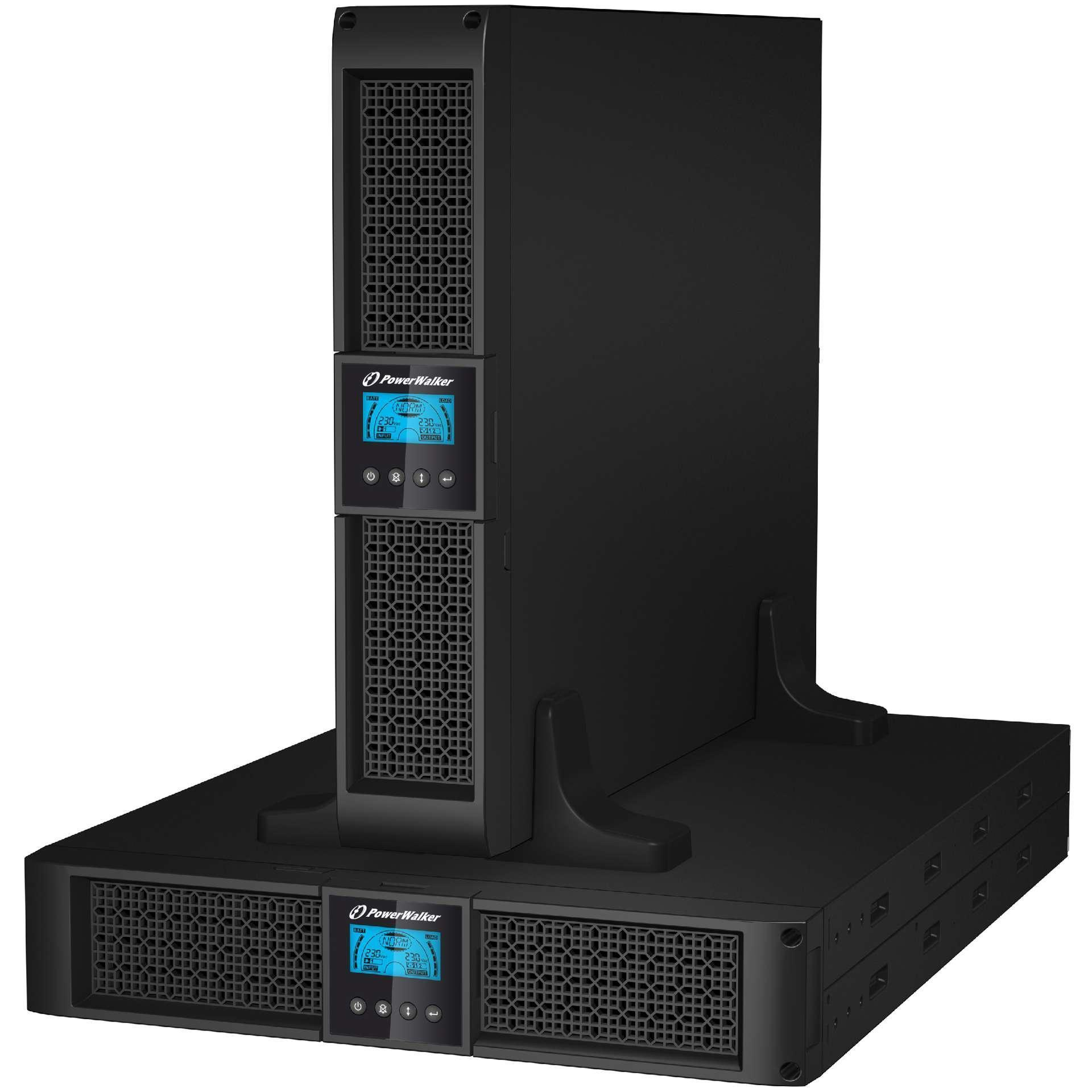

Premium Line-Interactive Solution These UPS complies with Energy Star requirements. Rack/Tower 2U Design with rotatable LCD Direction Pure Sinewave Output with Output Power Factor 0.9 It has an Optimized Battery Management (OBM) – for longer Battery Life USB with Human Interface Device (HID) support It includes an Intelligent Slot for communication cards It has a Programmable Segment The RS-232 Port includes fixed Dry Contacts – for further automation The PowerWalker VI RT HID is by far the most advanced Line-Interactive UPS with Pure Sine Wave output. It was designed to fulfill the high power quality demand in IT-environment while keeping the Line-Interactive topology. The VI RT HID offers full protection for devices such as servers, network/telephone communication systems and small industrial applications. Due to its 2U design and adjustable LCD, the UPS can be installed inside any regular 19” rack cabinet or used as tower system (Tower Holder included).

Manufacturer: Powerwalker

SKU: PUP0025

Availability: 2 in stock

€643.15 excl tax

Qty:

Full Description
Specifications

GENERAL FEATURES
Type Line-Interactive (VI)
Phases (IN-OUT) 1-1
Form Factor Rack, Tower
Rack Units [U] 2U
Power Capacity 3000VA / 2700W
Output Power Factor 0.90
INPUT
Input Voltage Range Acceptable Voltage Range: 0-300VAC
Line Low Transfer (Wide Mode): 154/161/168VAC ± 4%
Line Low Transfer: 176/184/192VAC ± 4%
Line Low Comeback: 186/194/202VAC ± 4%
Line High Transfer: 264/276/288VAC ± 4%
Line High Comeback: 254/266/278VAC ± 4%
Frequency Range 45Hz – 65Hz (self-adaptive to 50/60Hz); 40Hz – 65Hz for generator mode
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 220/230/240 VAC
Voltage Regulation (Battery Mode) ±5%
Frequency (Battery Mode) ±0.1Hz

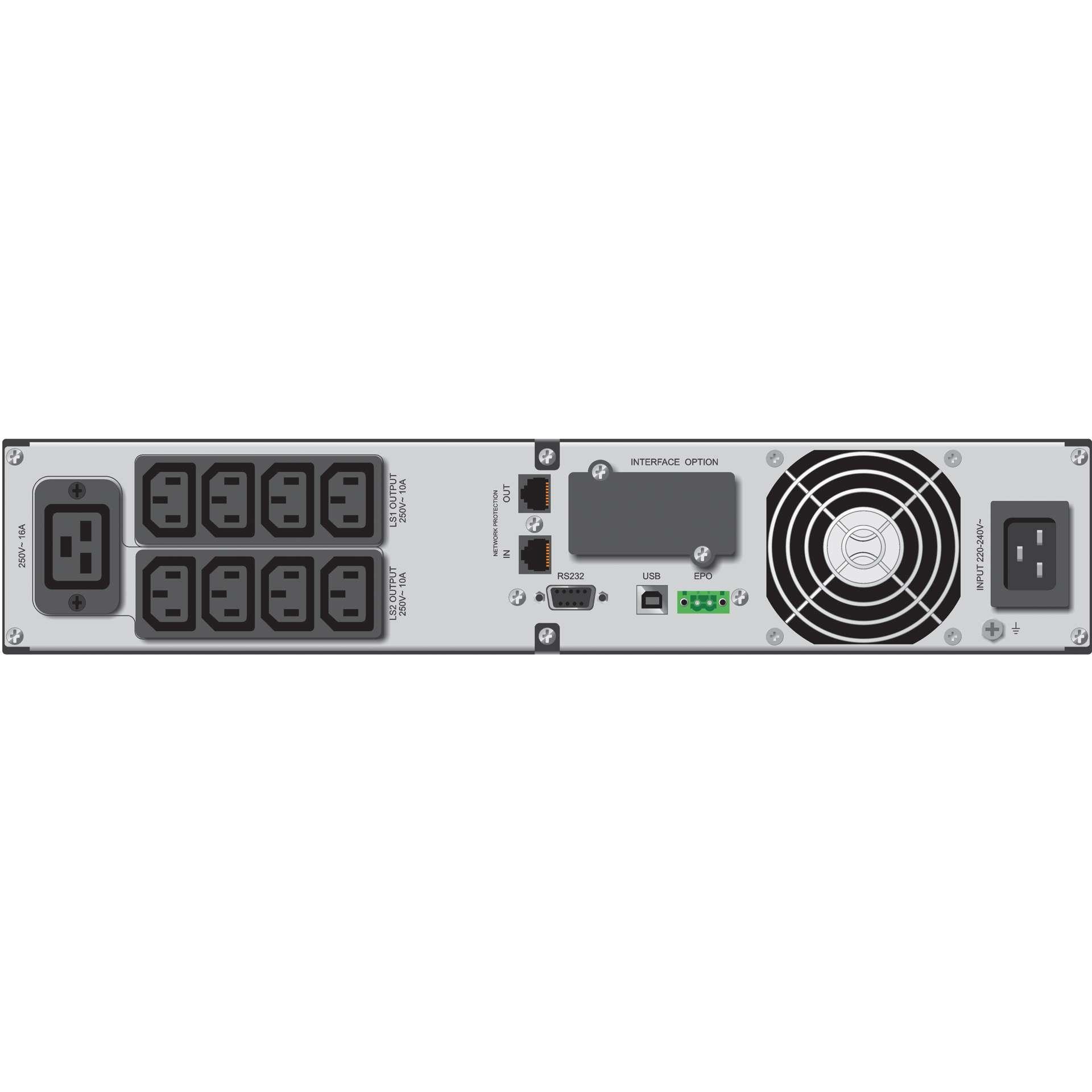

INPUT & OUTPUT CONNECTORS
Input Connector C20-UK
Output Type IEC – UK
IEC C13 8
IEC C19 1
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 98.5
Battery Mode Efficiency [%] (Full Load) 85.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 2-6ms typical
Transfer Time (AC / Line Mode to Battery Mode) [ms] 2-6ms typical (10ms max | 13ms for Generator Mode)
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] <10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 2-6ms typical
Load Crest Ratio 3:1
Data Line Protection RJ-11 Port, RJ-45 Port (100mbit)
Additional Features Potential Equalization Screw, OBM – Optimized Battery Management, Fixed Dry Contacts Included (RS-232), LCD Display, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification VI-SS-311
BATTERIES AND AUTONOMY
Batteries 6x 12.0V/9.0Ah
DC Voltage 6x 12.0V
Recharge Time 4h to 90%
Full Load Backup Time [min] 3.0
Half Load Backup Time [min] 7.0
Charger 1.5A
External Battery Pack Yes
COMMUNICATION
Communication USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software WinPower
ENVIRONMENT
Noise Level < 50dB
Fan Logic
Fan Off: Line/ Standby Mode and Load below 80%

Always On, Automatic Fan Control (AVR On, Battery Mode and Battery Charging)

Temperature 0°C – 40°C
Humidity 20% – 80% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content UPS, Manual, USB Cable, Tower Holder, Rack Ears, 2x IEC Cable, EPO Plug, Input Power Cable
Manual Languages DE, RU, PL, FR, HU, CZ, EN
EAN 4260074974775
Product Dimensions (DxWxH) [mm] 608 x 438 x 86 mm
Product Weight [kg] 30.4
Package Dimensions (DxWxH) [mm] 590 x 790 x 236 mm
Package Weight [kg] 34.4

Products specifications
