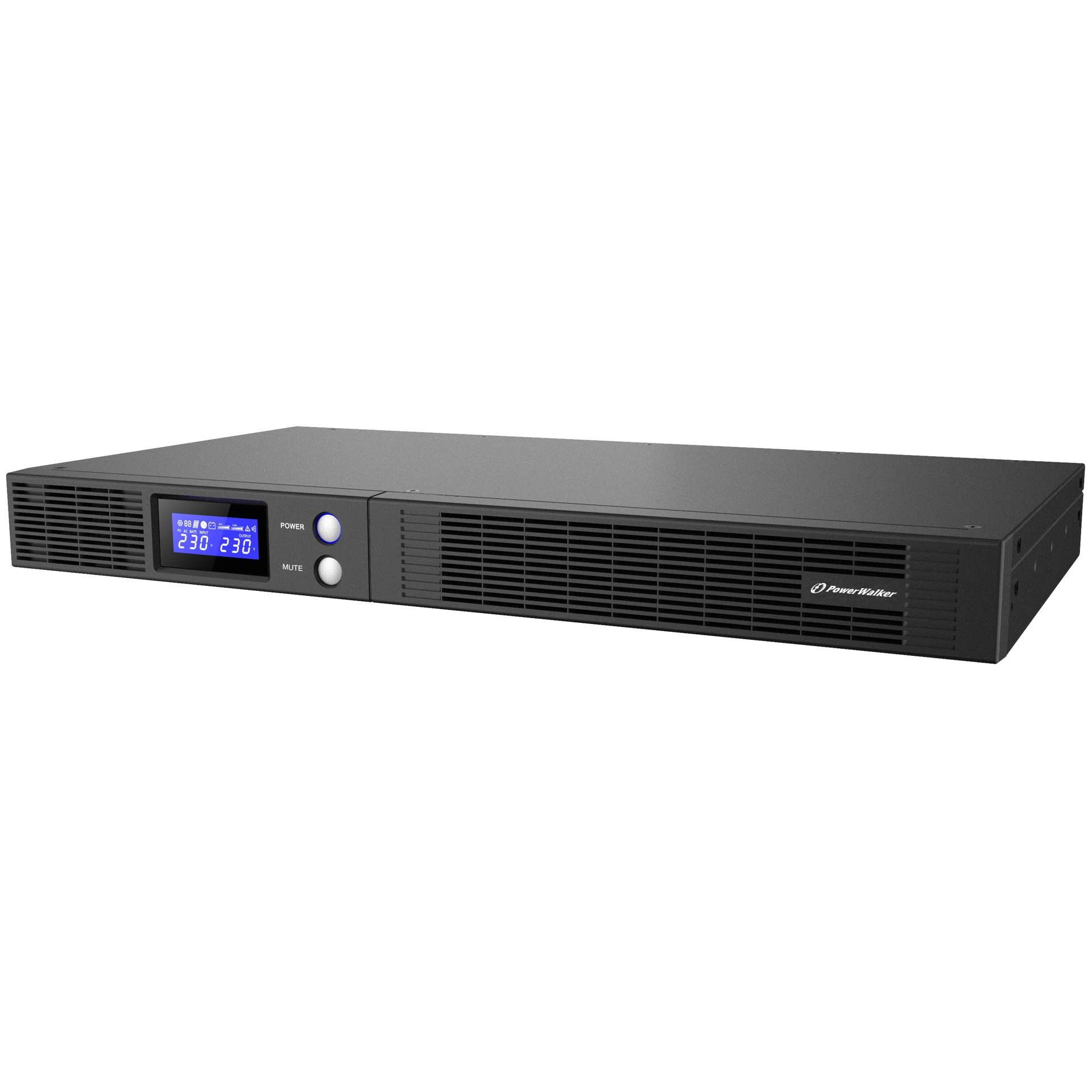

The PowerWalker VI R1U is a Line-Interactive rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting, and fits perfectly for applications where space is a main concern (they also have very low-depth, only 216 mm for the smaller models). It is equipped with pure sine wave output, and it includes an intelligent card slot for network cards, so that even sensitive and critical loads can be kept safe.
Manufacturer: Powerwalker
SKU: PUP0167
Manufacturer part number: 10121047
Availability: Out of stock
€168.63 excl tax
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorRack
Rack Units [U]1U
Power Capacity500VA / 300W
Output Power Factor0.60
INPUT
Input Voltage Range165-290 VAC
Frequency Range45Hz – 65Hz
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage230 VAC
THDv≤3% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±0.5Hz

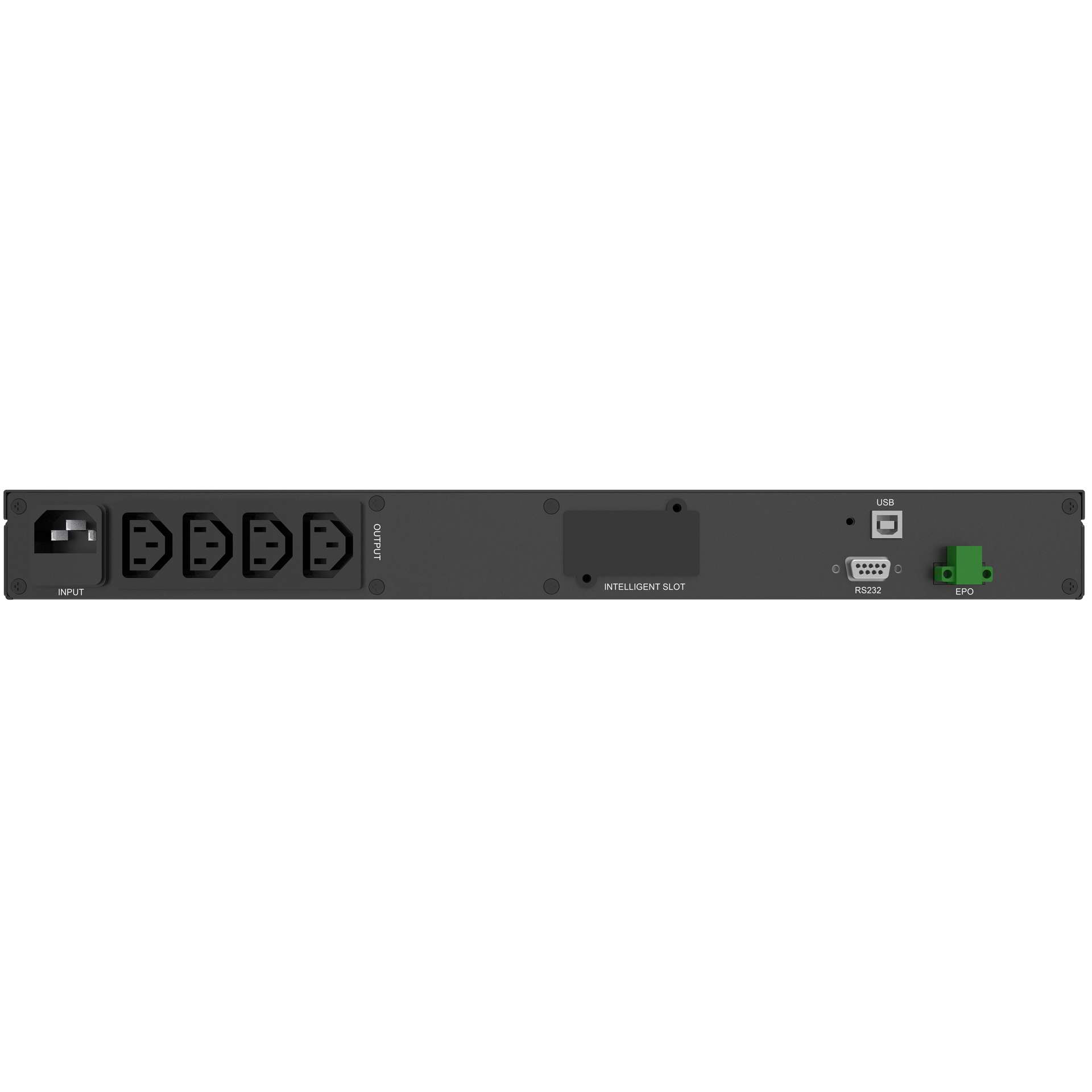

INPUT & OUTPUT CONNECTORS
Input ConnectorC14
Output TypeIEC
IEC C134
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)95.0
Battery Mode Efficiency [%] (Full Load)78.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]4ms typical
Additional FeaturesLCD Display, HID – Human Interface Device, EPO – Emergency Power Off, AVR – Automatic Voltage Regulator, Low-Depth, Energy Saving Function
BATTERIES AND AUTONOMY
Batteries2x 6.0V/7.0Ah
DC Voltage2x 6.0V
Recharge Time8h to 90%
Full Load Backup Time [min]0.8
Half Load Backup Time [min]10.3
Charger1A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software, RS-232, Management Card Slot
SoftwarePowerMaster
ENVIRONMENT
Noise Level< 30dB
Fan LogicNo fan
Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentRack Ears, Input Power Cable, Manual, USB Cable, UPS
Manual LanguagesEN, UA, DE, PL
EAN4260074980387
Product Dimensions (DxWxH) [mm]216 x 433 x 44 mm
Product Weight [kg]7.6
Package Dimensions (DxWxH) [mm]317 x 537 x 150 mm
Package Weight [kg]8.7
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
UPS FeaturesRackmount, LCD, Pure Sinewave
Output ConnectionsC13
UPS TypeLine Interactive
UPS PowerUp to 1000 VA

PowerWalker VI 500 R1U Art no. 10121047

€168.63 excl tax
