General features
Type Line-Interactive
Power capacity 500VA / 300W
Output Power Factor 0.60
Input
Input Voltage Range 165-290 VAC
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 230 VAC
Pure Sine Wave Yes
THDv ≤3% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±0,5Hz
Technical details
Transfer Time [AC to Battery] 4ms typical
Charger 1A
Protection Overload protection on utility: fuse; on battery: internal current limiting
Efficiency
LINE mode full Load 95.0%
Energy Star compliance
Batteries and autonomy time
Batteries 2x 6V/7Ah
DC Voltage 2 x 6V
Recharge Time 8h to 90%
Full Load Backup Time 0.8min
Half Load Backup Time 10.3min

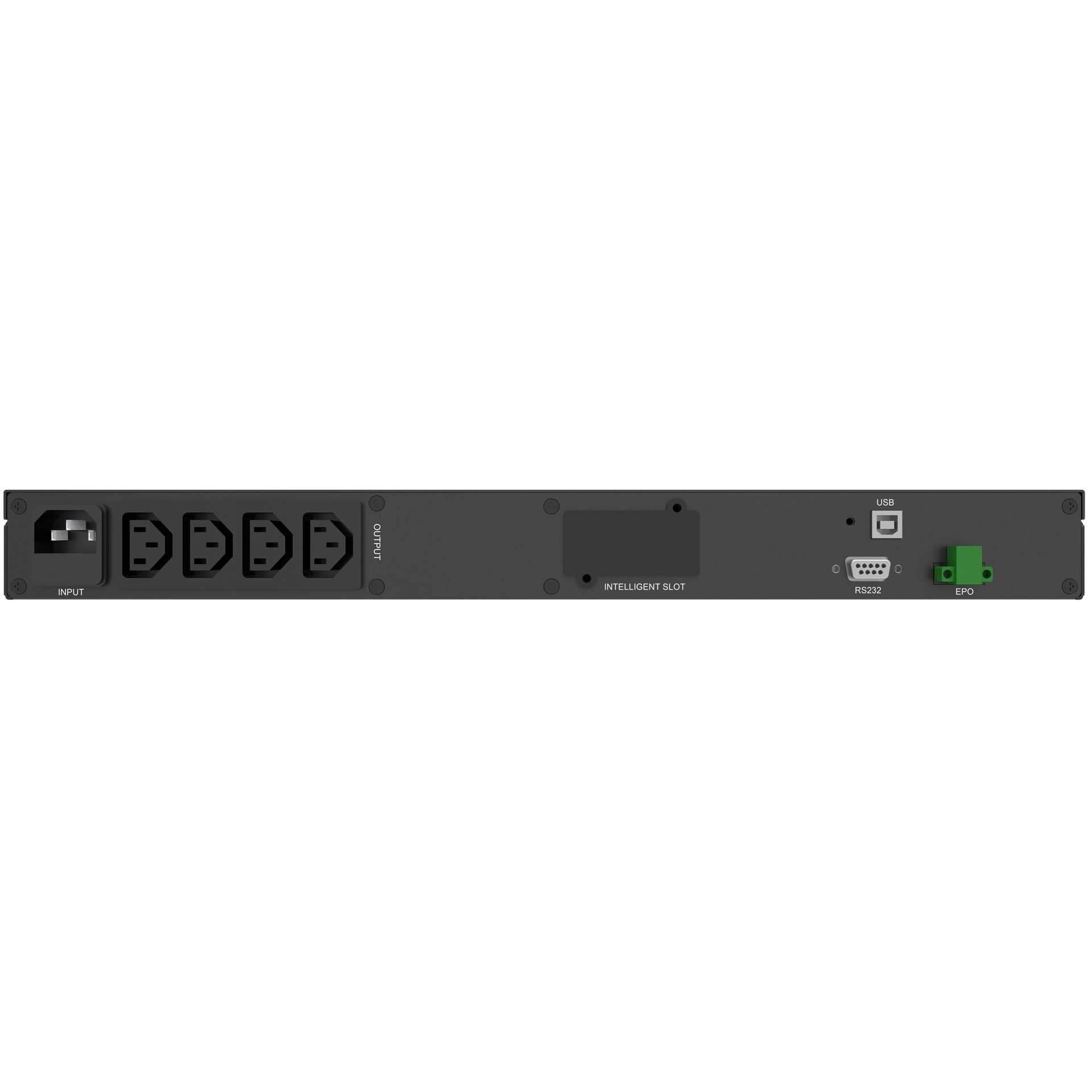

Connections and communication
IEC C13 Outlet 4
Input C14-UK
Software PowerMaster
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
Environment
Noise Level No Fan
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package Content UPS, Manual, USB Cable, Input Power Cable, Rack Ears
Manual Languages EN
EAN 4260074981018
Width 433 mm
Height 44 mm
Depth 216 mm
Weight 7.6 kg
Giftbox - Width 537 mm
Giftbox - Height 150 mm
Giftbox - Depth 317 mm
Giftbox - Weight 8.7 kg
Pcs. per box 1
