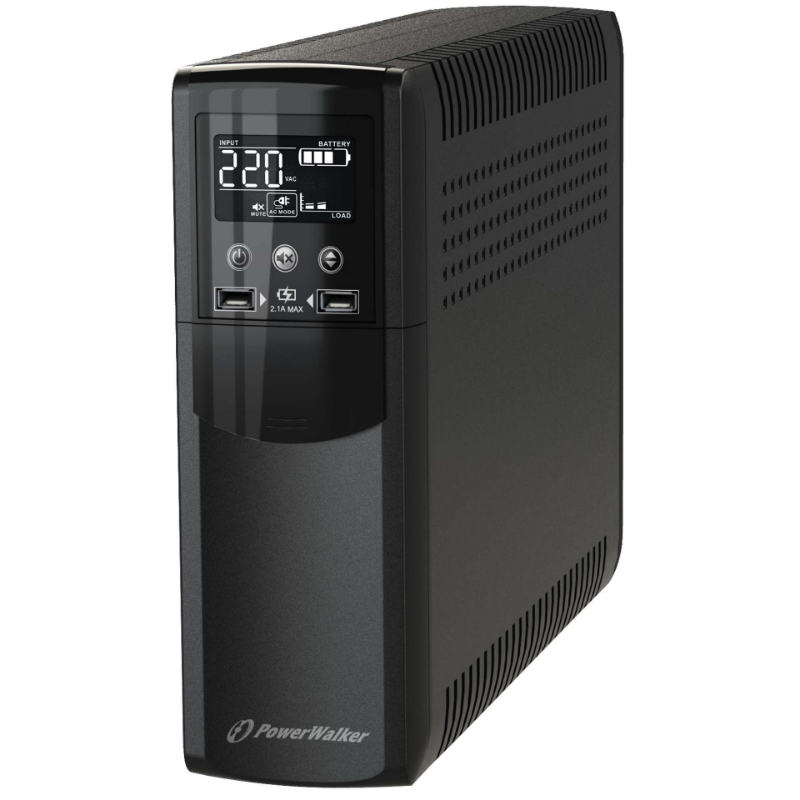

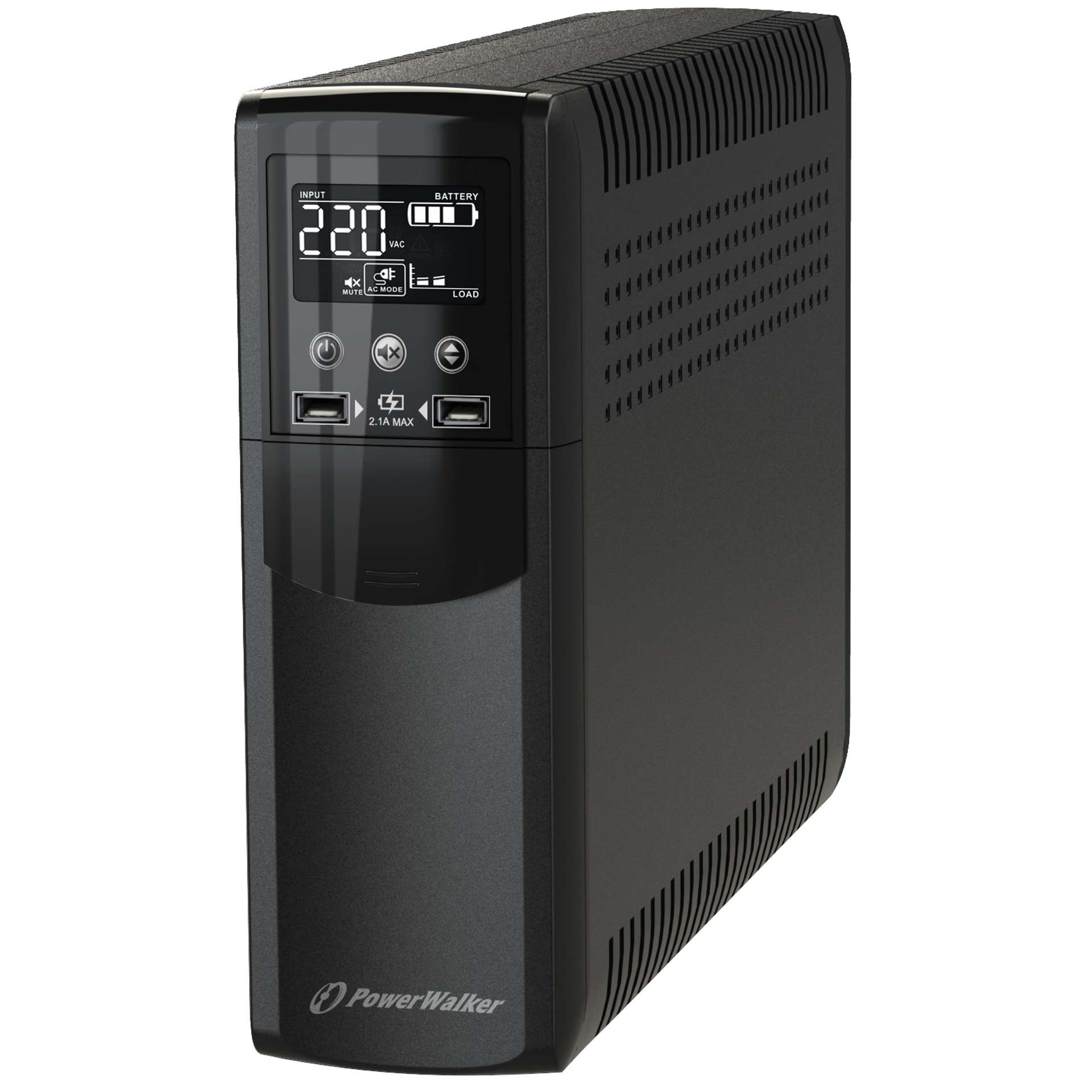

The PowerWalker VI CSW is a Line-Interactive UPS series with state-of-the-art technology and design. The integrated AVR function and pure sinewave output ensures clean and stable output during power outages or voltage fluctuations. The modern and elegant design makes the VI CSW series especially suitable for home and office use. Applications include (but are not limited to) gaming and entertainment systems, office workstations, NAS etc. Two USB charging ports (2.1A) in the front offer additional functionality and convenience. Furthermore, the design allows easy access to the battery compartment via the front panel for easy battery replacement. VA: 600
Manufacturer: Powerwalker
SKU: PUP0114
Availability: Out of stock
€149.98 excl tax
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity600VA / 360W
Output Power Factor0.60
INPUT
Input Voltage Range162-290 VAC
Frequency Range45Hz – 65Hz (self-adaptive to 50/60Hz)
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage230 VAC
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±1Hz

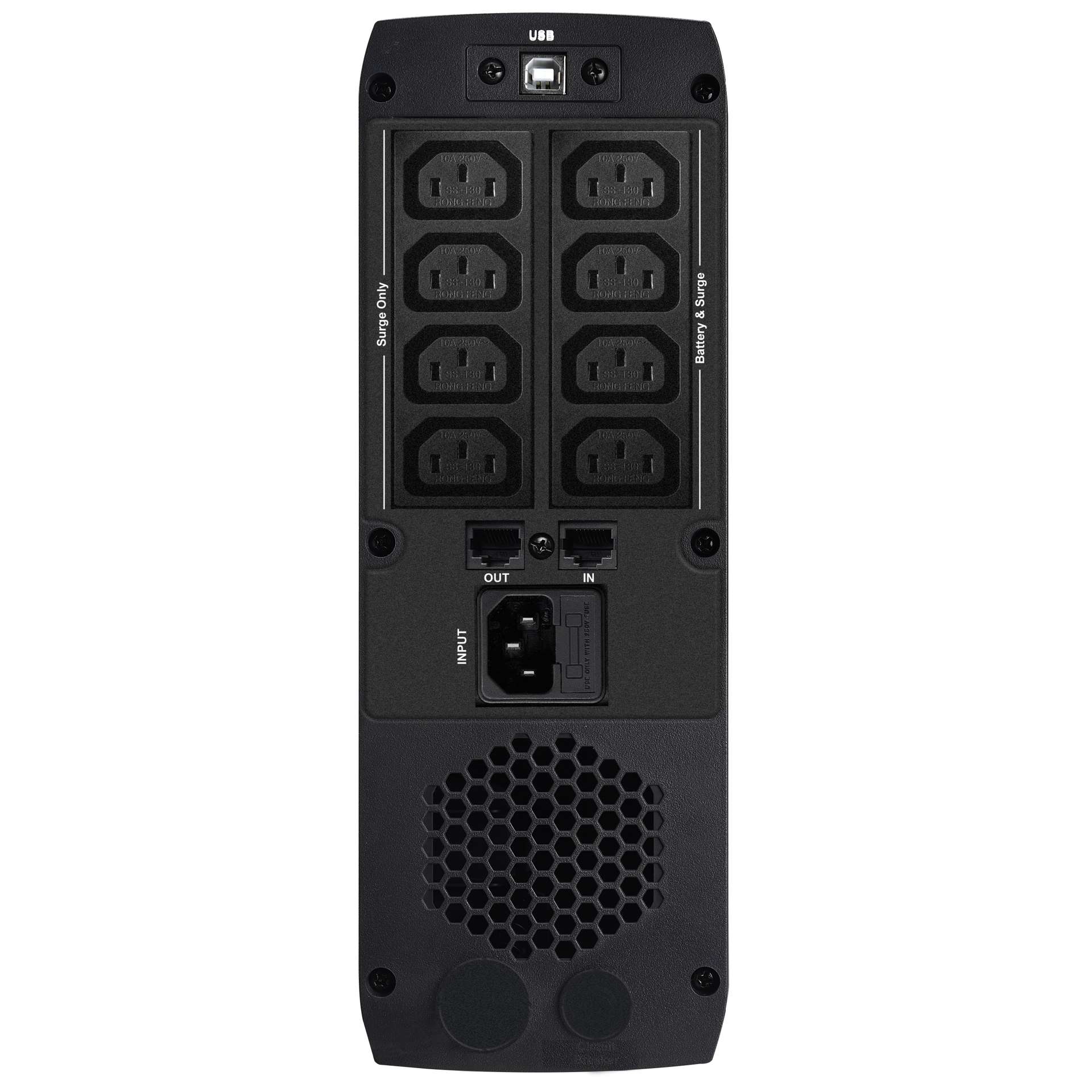

INPUT & OUTPUT CONNECTORS
Input ConnectorC14-UK
Output TypeIEC – UK
IEC C134
IEC C13 Surge Only4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)98.4
Battery Mode Efficiency [%] (Full Load)82.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]6ms typical (10ms max)
Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
Additional FeaturesUSB Type A – Charger, Hot-Swappable Batteries, LCD Display, Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classificationVI-SX-333
BATTERIES AND AUTONOMY
Batteries1x 12.0V/7.0Ah
DC Voltage1x 12.0V
Recharge Time4-6h to 90%
Full Load Backup Time [min]2.5
Half Load Backup Time [min]9.0
Charger1A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software
SoftwareViewPower
ENVIRONMENT
Noise Level< 40dB
Fan LogicAuto: OFF: in LINE mode; ON: in battery- and AVR mode
Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentInput Power Cable, Manual, USB Cable, IEC Cable, UPS
EAN4260074981919
Product Dimensions (DxWxH) [mm]288 x 99 x 280 mm
Product Weight [kg]7.4
Package Dimensions (DxWxH) [mm]378 x 188 x 387 mm
Package Weight [kg]7.9
Pcs. per Outer Carton

1



Products specifications
Attribute nameAttribute value
UPS TypeLine Interactive
Output ConnectionsC13
UPS PowerUp to 1000 VA
UPS FeaturesTower, LCD, Pure Sinewave

PowerWalker VI 600 CSW IEC/UK Art No. 10121125
