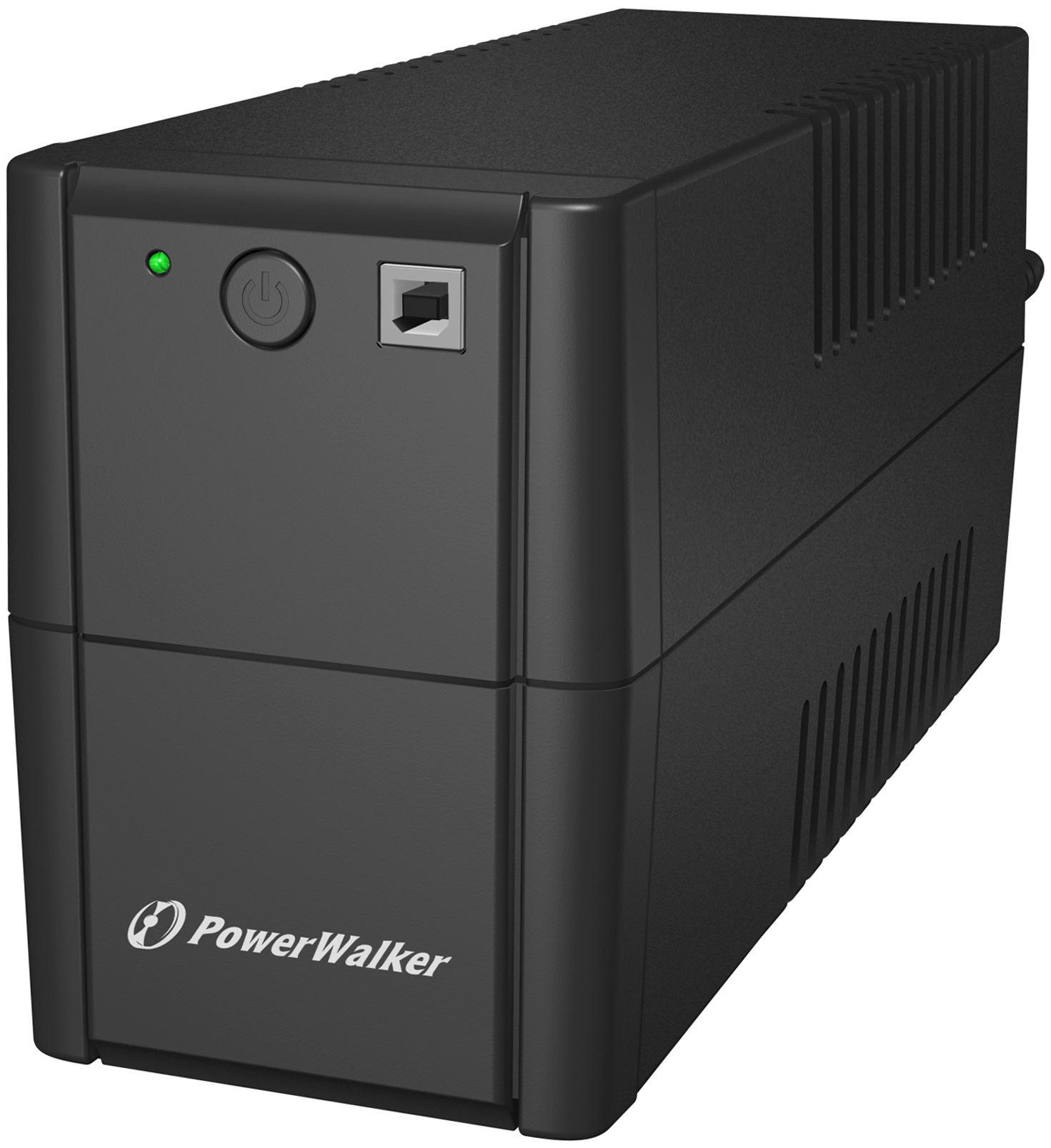

PowerWalker VI SH provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application. The VI SH Series are equipped with stronger charger to reach 90% of battery capacity in 2-4h. With Human Interface Device (HID) support for USB communication it allows quick and easy setup with any operating system.

Manufacturer: Powerwalker

SKU: PUP0026

Availability: Out of stock

€69.48 excl tax

Qty:

Full Description
Specifications

General features
Type Line-Interactive
Power capacity 850VA / 480W
Output Power Factor 0.56
Input
Input Voltage Range 170-280 VAC ±7%
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 230 VAC
Voltage Regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±1Hz
Technical details
Transfer Time [AC to Battery] 4-8ms
Overload Capacity N/A
Charger 1.2A
Protection Discharge prevention; Deep discharger; Overcharge; Overload
Fan Logic No fan
LED Indicators AC Mode: green LED lighting; Battery Mode: green LED flashing
Efficiency
LINE mode full Load 95.0%
Batteries and autonomy time
Batteries 1x 12V/9Ah
DC Voltage 1 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 0.1min
Half Load Backup Time 6min
Connections and communication

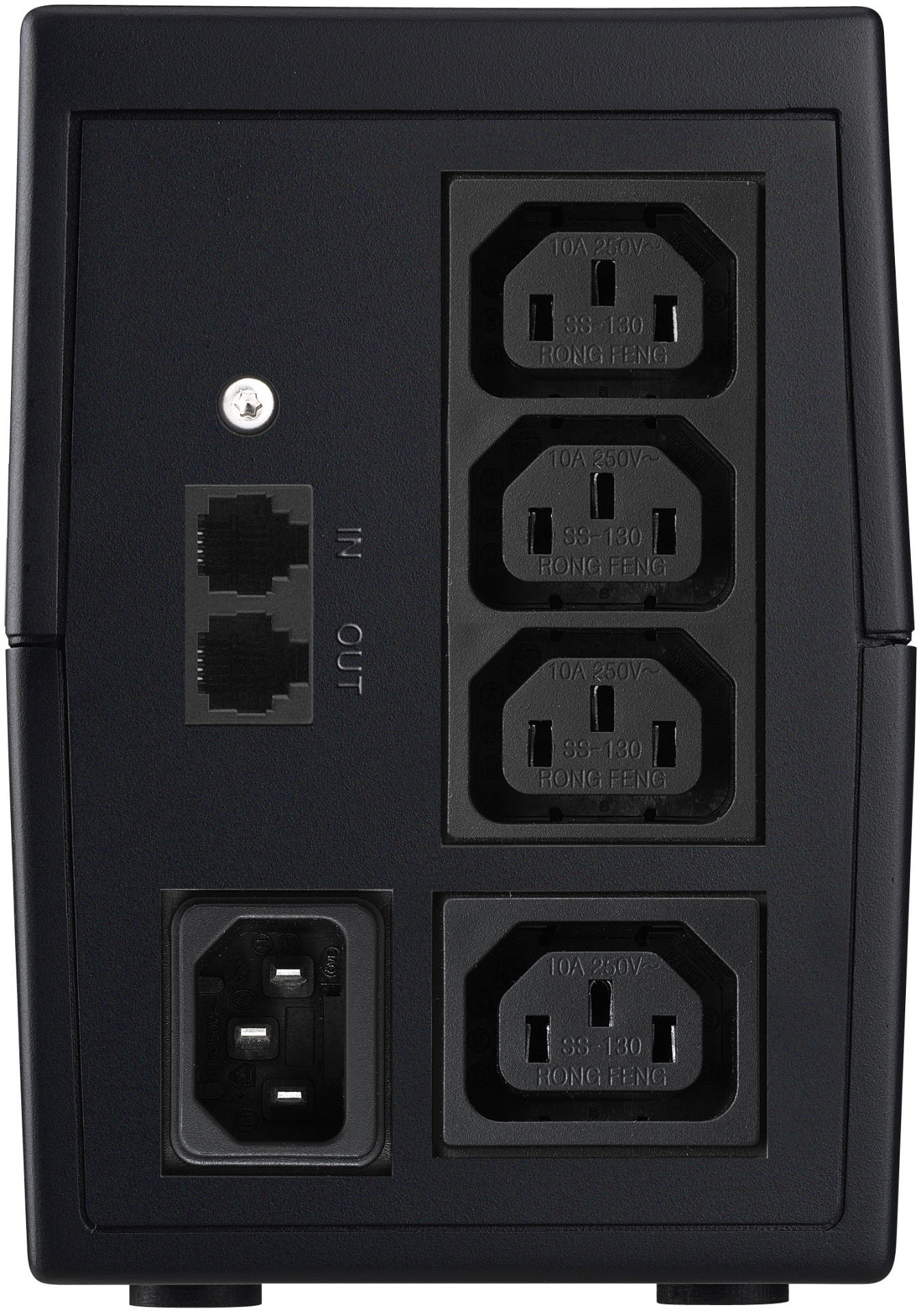

IEC C13 Outlet 4
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RJ-11 protection Yes
Environment
Noise Level No Fan
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package Content UPS, Manual, USB Cable, Input Power Cable
Manual Languages EN/DE/PL/FR/PT/RU/CZ/NO/SE/FI/DK
EAN 4260074975451
Width 100 mm
Height 143 mm
Depth 290 mm
Weight 5 kg
Giftbox - Width 140 mm
Giftbox - Height 223 mm
Giftbox - Depth 330 mm
Giftbox - Weight 5.2 kg
