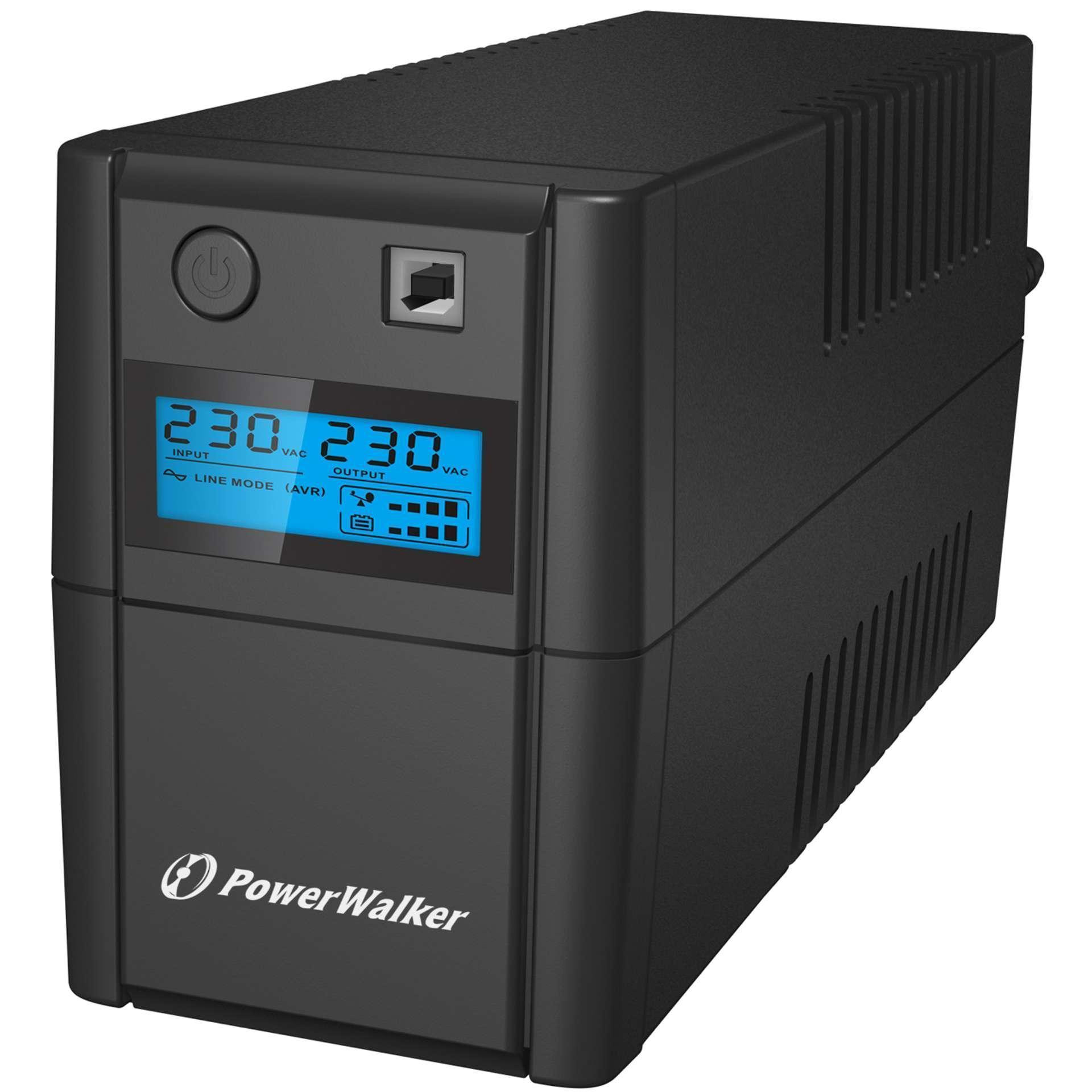

The PowerWalker VI SH / SHL provide a comprehensive protection and a high-power density in a small and economic package for a Line-Interactive UPS. It is equipped with a voltage stabilizer; this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application. These series is equipped with a stronger charger that reaches 90% of the battery capacity in 2-4h. With a Human Interface Device (HID) support for USB communication it allows quick and easy setup with any operating system. In addition, this UPS provides RJ-11 surge protection. Highlight of the PowerWalker VI SHL unit is the integrated LCD. Which lets you follow the usual UPS detailed information without the need of a second device to monitor the UPS.
Manufacturer: Powerwalker
SKU: PUP0035
Availability: 21 in stock
€77.96 excl tax
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity850VA / 480W
Output Power Factor0.56
INPUT
Input Voltage Range170-280 VAC ±7%
Frequency Range50Hz or 60Hz (self-adaptive)
OUTPUT
WaveformSimulated Sine Wave
Nominal Output Voltage230 VAC
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±1Hz

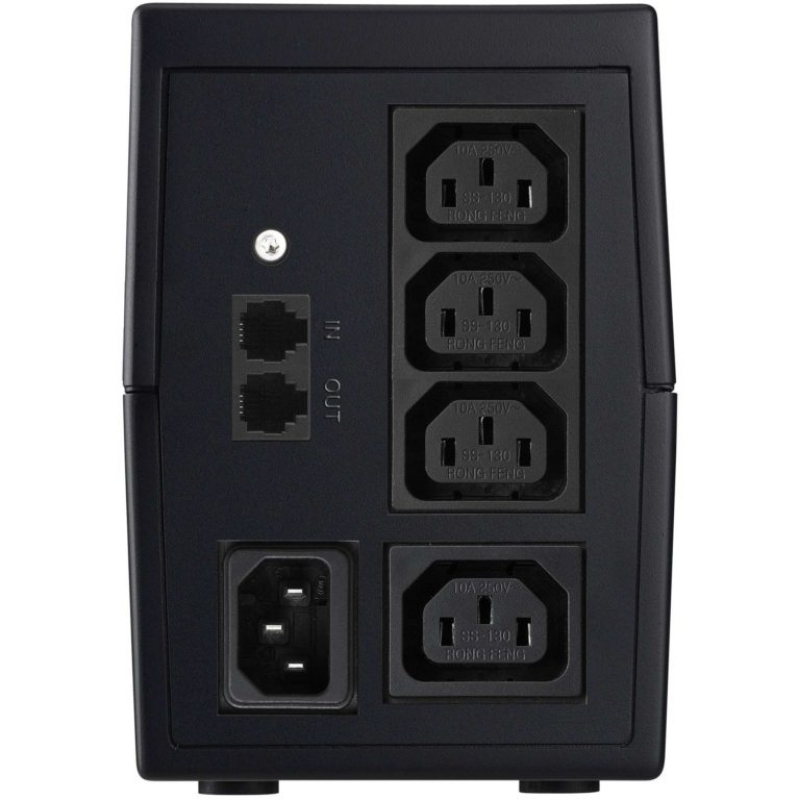

INPUT & OUTPUT CONNECTORS
Input ConnectorC14-UK
Output TypeIEC – UK
IEC C134
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)95.0
Battery Mode Efficiency [%] (Full Load)60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]4-8ms
Data Line ProtectionRJ-11 Port
Additional FeaturesLCD Display, Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classificationVI-SY-333
BATTERIES AND AUTONOMY
Batteries1x 12.0V/9.0Ah
DC Voltage1x 12.0V
Recharge Time4h to 90%
Full Load Backup Time [min]0.1
Half Load Backup Time [min]6.0
Charger1.2A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software
SoftwareWinPower
ENVIRONMENT
Noise Level< 30dB
Fan LogicNo fan
Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentManual, USB Cable, IEC Cable, UPS
Manual LanguagesDE, SE, DK, FI, NO, PL, FR, EN, ES, IT, UA
EAN4260074976687
Product Dimensions (DxWxH) [mm]290 x 100 x 143 mm
Product Weight [kg]5.2
Package Dimensions (DxWxH) [mm]345 x 139 x 226 mm
Package Weight [kg]5.5
Outer Carton Dimensions (DxWxH)598 x 380 x 250 mm
Outer Carton Weight [kg]23.1
Products specifications
Attribute nameAttribute value
UPS TypeLine Interactive
Output ConnectionsC13
UPS PowerUp to 1000 VA
UPS FeaturesTower, LCD
