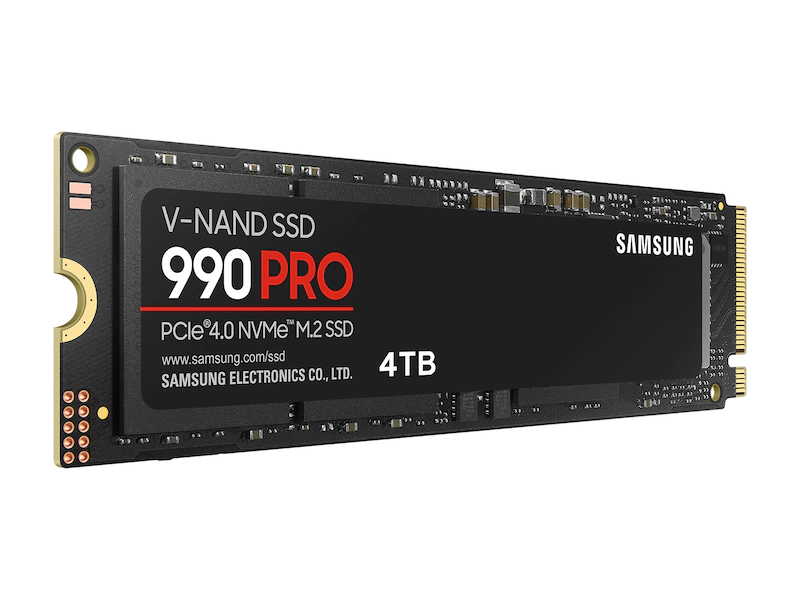

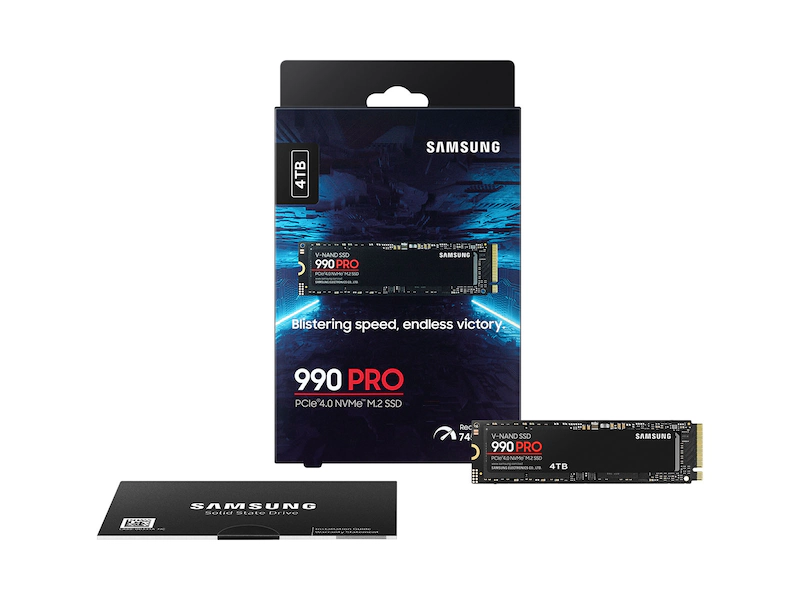

Gen4 steps up to the arena with more than 55% improvement in random performance compared to 980 PRO. • With read and write speeds up to 7450/6900 MB/s² you’ll reach near max performance of PCIe® 4.0³ powering through for any use. • Give yourself some space with storage capacities from 1TB to 4TB. • Get power efficiency all while experiencing up to 50% improved performance per watt over the 980 PRO.⁴
Manufacturer: Samsung
SKU: CSS0105
Manufacturer part number: MZ-V9P4T0BW
GTIN: 8806094947205
Availability: Out of stock
Login to view Price
  • General Feature
    Application
    Client PCs, Game Consoles
    Capacity
    4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
    Interface
    PCIe Gen 4.0 x4, NVMe 2.0
    Dimension (WxHxD)
    3.15 x 0.87 x 0.091 inches
    Weight
    Max 0.02 lbs
    Form Factor
    M.2 (2280)
    Storage Memory
    Samsung V-NAND TLC
    Controller
    Samsung in-house Controller
    Cache Memory
    Samsung 4GB Low Power DDR4 SDRAM
  • Performance
    Sequential Read
    Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
    Sequential write
    Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
    Random Read (4KB ,QD32)
    Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration
    Random Write (4KB ,QD32)
    Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
    Random Read (4KB ,QD1)
    Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
    Random Write (4KB ,QD1)
    Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
  • Environmental Specs
    Operating Temperature
    32°F - 158°F (0 - 70 ℃ Operating Temperature)
    Shock
    1,500 G & 0.5 ms (Half sine)
  • Weight
    Shipping Weight
    0.2
  • Software
    Management SW
    Magician Software for SSD management
  • Warranty
    Product
    5-year Limited Warrantyor 2400 TBW Limited Warranty
  • Special Feature
    TRIM Support
    Supported
    S.M.A.R.T Support
    Supported
    GC (Garbage Collection)
    Auto Garbage Collection Algorithm
    Encryption Support
    AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    WWN Support
    Not supported
    Device Sleep Mode Support
    Yes
  • Environment
    Average Power Consumption (system level)
    *Average: 6.5 W*Maximum: 8.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
    Power consumption (Idle)
    Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
    Allowable Voltage
    3.3 V ± 5 % Allowable voltage
    Reliability (MTBF)
    1.5 Million Hours Reliability (MTBF)
  • Accessories
    Installation Kit
    Not Available

Products specifications
Attribute nameAttribute value
Storage Form FactorM.2
Storage Capacity4 TB
M.2 Bus Speedx4
Consumption15w
Product tags
Customers who bought this item also bought
Login to view Price
Out of stock
Login to view Price
Out of stock

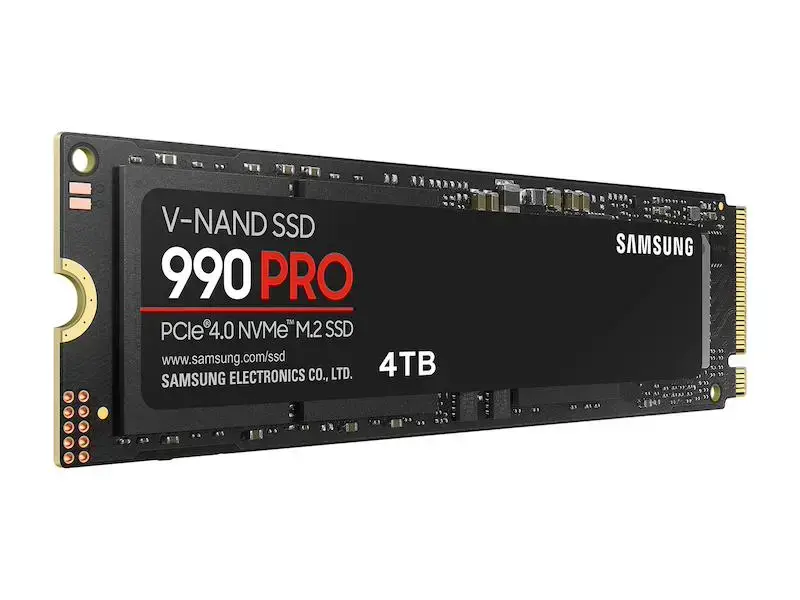

Samsung 4TB M.2 990 Pro PCIe 4.0/NVMe
