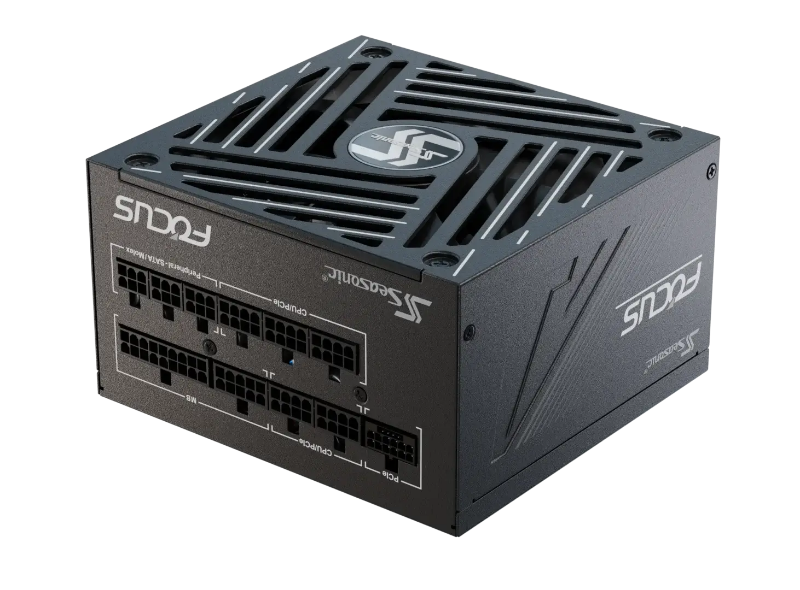

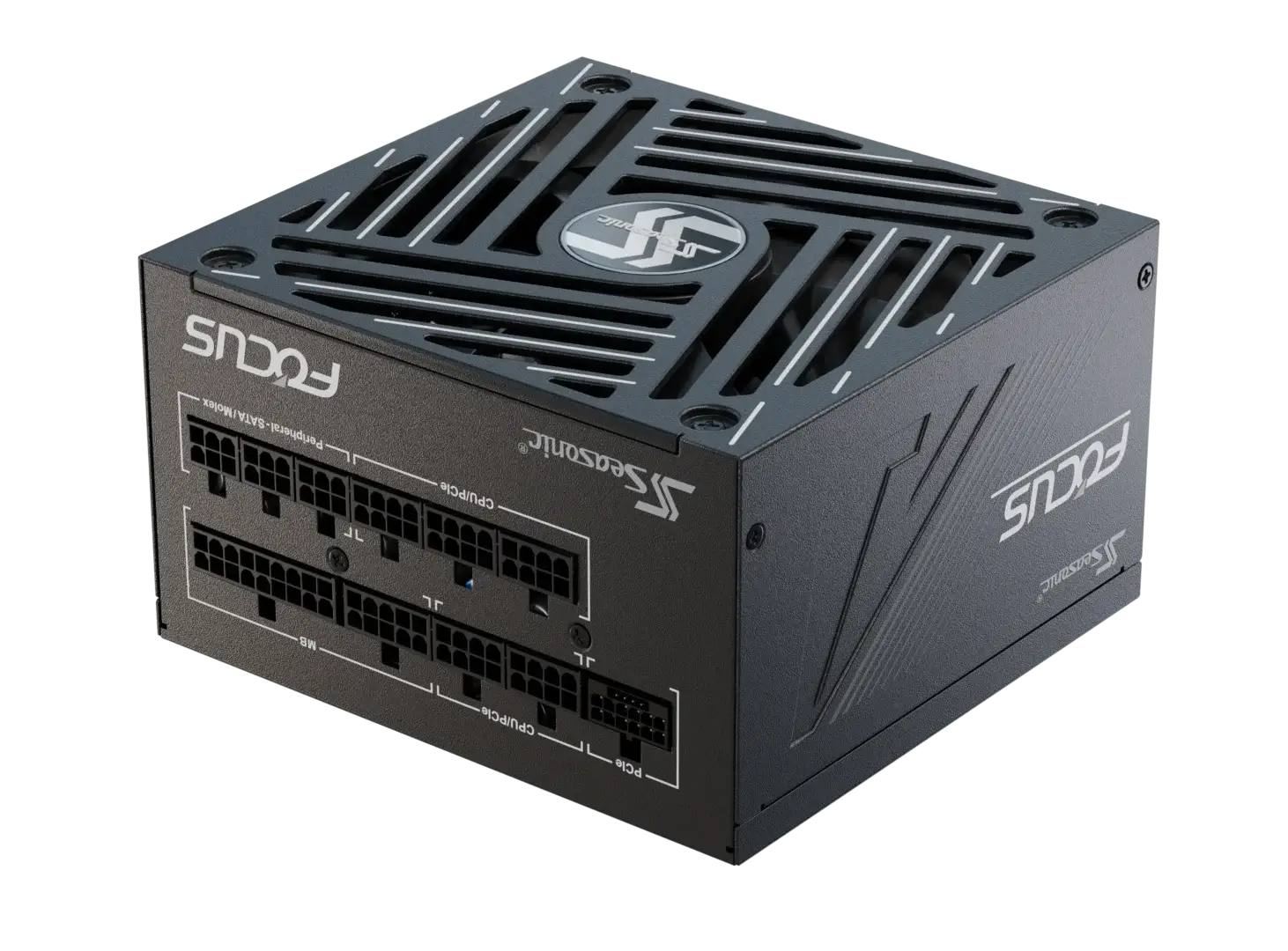

FOCUS GX ATX 3.1 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2×6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.

Manufacturer: Seasonic

SKU: CPO0150

Manufacturer part number: SRP-FGX102-A5A32SF

GTIN: 4711173878421

Availability: 20 in stock

Full Description
Specifications
Tags

Technical Specifications
80PLUS^®		Gold
Cybenetics Efficiency Level		Gold
Cybenetics Noise Level		A-
Form Factor		ATX/EPS
Fan Information	Fan Size	135 mm
	Fan Control	Digital Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental	Safety and EMC	CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
Safety and Environmental	Environmental Compliance	Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	13 - 6.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	83 A	0.3 A	3 A
		125 W		996 W	3.6 W	15 W
	Total continuous power	1000 W

Products specifications

Attribute name	Attribute value
Efficiency	Gold
Wattage	1000w
PSU Form Factor	ATX
