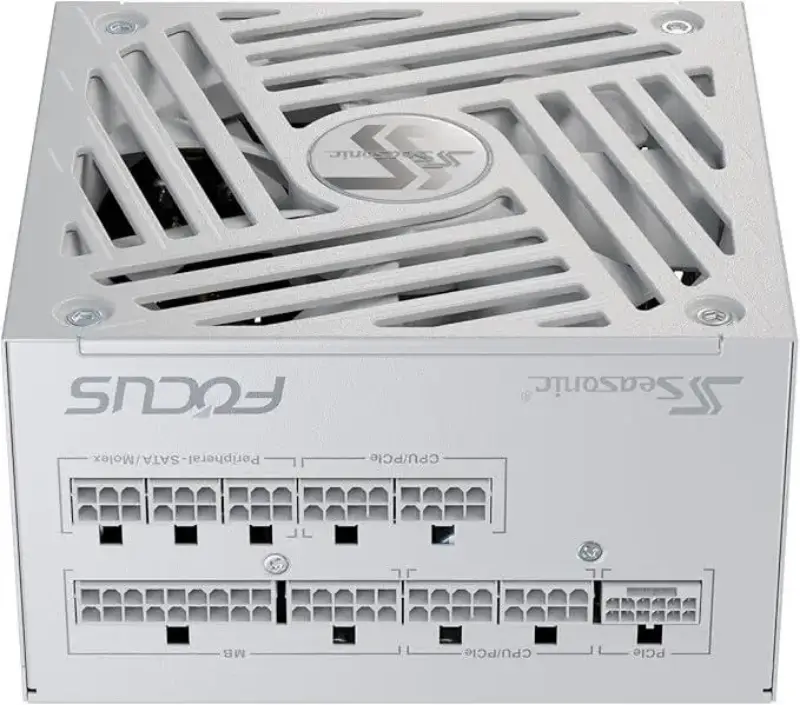

Picture of Seasonic FOCUS GX-1000 White (ATX 3.1) SRP-FGX102-A5A32SF

Picture of Seasonic FOCUS GX-1000 White (ATX 3.1) SRP-FGX102-A5A32SF

Picture of Seasonic FOCUS GX-1000 White (ATX 3.1) SRP-FGX102-A5A32SF

FOCUS GX ATX 3.1

Manufacturer: Seasonic

SKU: CPO0152

Manufacturer part number: SRP-FGX102-A5A32SF

GTIN: 4711173878551

Availability: 10 in stock

Login to view Price

Full Description
Tags

echnical Specifications
80PLUS^®		Gold
Cybenetics Efficiency Level		Gold
Cybenetics Noise Level		A-
Form Factor		ATX/EPS
Fan Information	Fan Size	135 mm
	Fan Control	Digital Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental	Safety and EMC	CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
Safety and Environmental	Environmental Compliance	Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	13 - 6.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	83 A	0.3 A	3 A
		125 W		996 W	3.6 W	15 W
	Total continuous power	1000 W
