8 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ ports to power 8 PoE devices at the same time Works with IEEE 802.3af or 802.3at compliant up to 30W per port device Innovative energy-efficient technology reduces power consumption Rack mountable with included rack mount bracket Total PoE power budget up to 126W Plug and play design, no configuration required
Manufacturer: Tp-Link
SKU: NSW0030
GTIN: 6935364086770
Availability: 1 in stock
Login to view Price

Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 126W
Mac Address Table 4K
Buffer Size 1.5Mbits
Switching Capacity 16Gbps
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting Desktop/Rack Mountable
Max Power Consumption 9.89W(220V/50Hz. no PD connected)
140.67W(110V/60Hz. with 126W PD connected)
Max Heat Dissipation 33.74BTU/h(no PD connected)
492.56BTU/h(with 126W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Products specifications
Attribute nameAttribute value
Lan Ports8
Transfer Speed10/100/1000
MountingRack mountable
Network FeaturesPOE
Product tags
Customers who bought this item also bought
Login to view Price
Out of stock
Login to view Price
Out of stock
Login to view Price
Availability: 305
Login to view Price
Out of stock

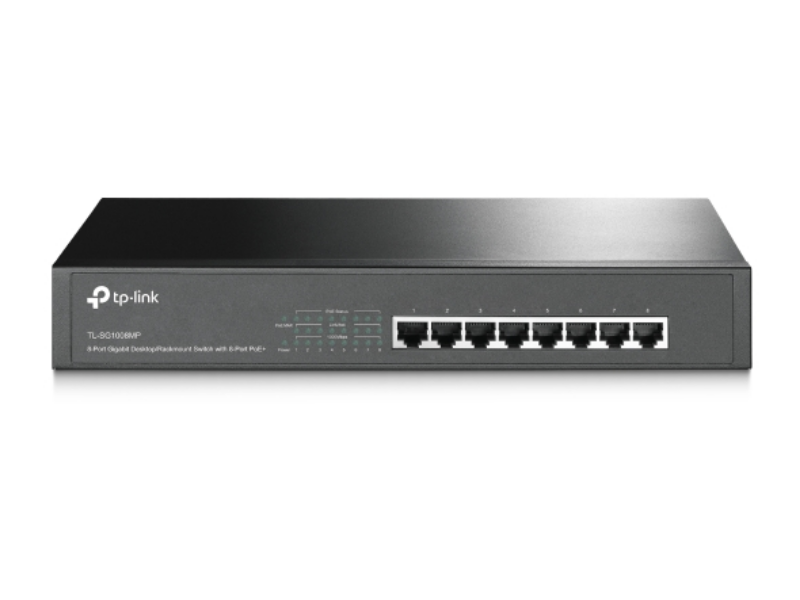

TP-Link TL-SG1008MP 8-Port Gigabit Desktop Rackmount Switch with 8-Port PoE+
